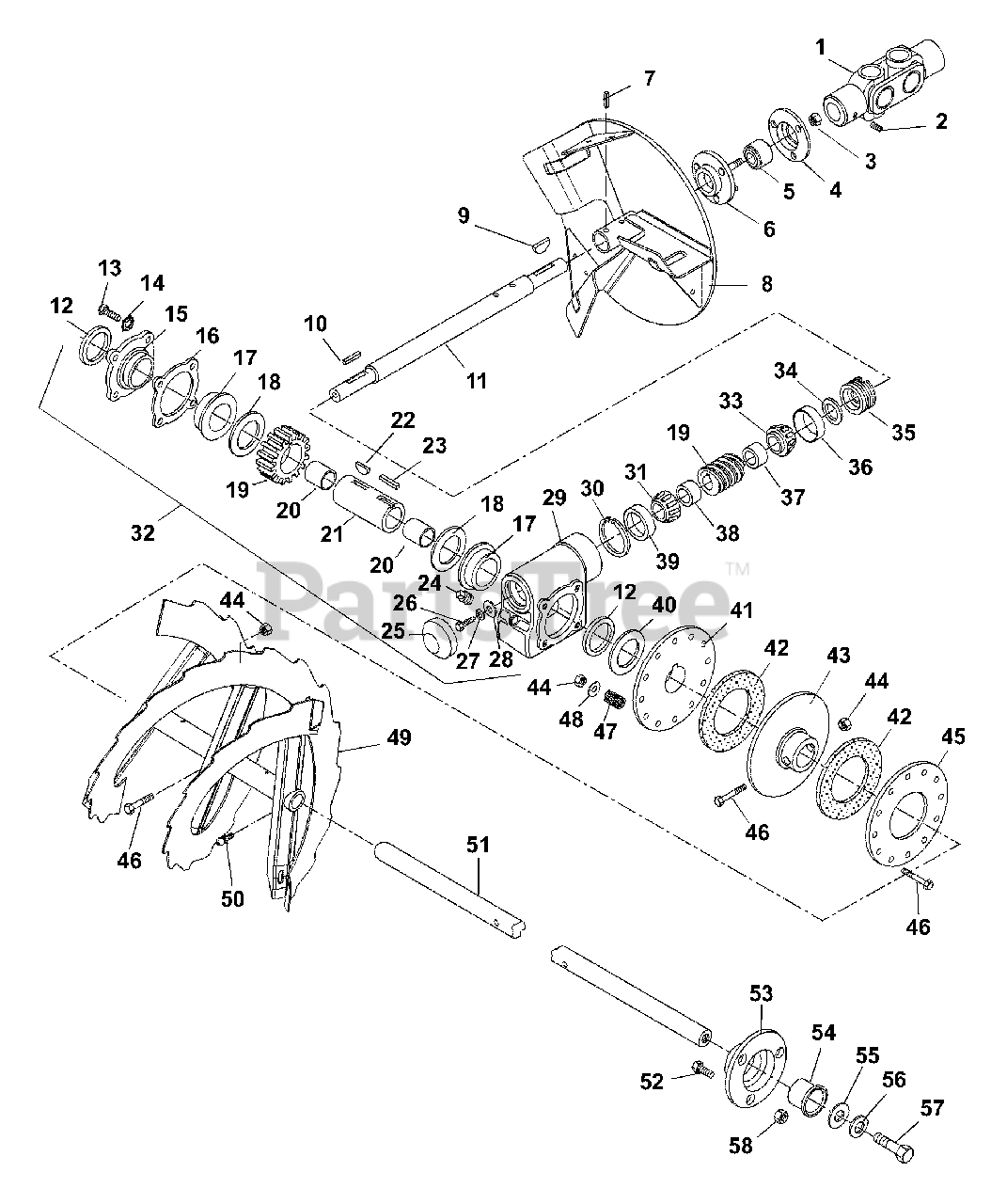

833007 - Gravely 32" Snow Blower for 2-Wheel Tractor (SN: 000101 & Above) Gearcase And Rake Parts Diagram

32" Snow Blower for 2-Wheel Tractor

Gearcase And Rake Parts Diagram

  • Title

1

Gravely 03329900

Joint Assembly

$382.99

$

Usually ships in 4-12 days

0

2

Gravely 102592

Screw-Set .38-16 x .38
(Superseded to 06004000)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 051655

Bearing Flange
(Superseded to 03086100)

$17.99

$

In Stock, only 1 left!

0

5

Gravely 051656

Bearing-Ball 1.0 x 2.0 x .56
(Superseded to 05418200)

$29.99

$

In Stock, Qty 9

0

6

Gravely 051657

Bearing Flange
(Superseded to 03086200)

$22.99

$

In Stock, only 1 left!

0

7

Gravely 036869

Pin-Roll .313 x 1.75
(Superseded to 05801500)

$2.49

$

In Stock, Qty 8

0

8

Gravely 03097951

Fan, 16"
(Superseded to 03097943)

$391.99

$

Usually ships in 4-12 days

0

9

Gravely 06608200

Key-Woodruff .188 x .875 x .375 Hard

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 036230

Key, Square .188 x 1.00 x .188
(Superseded to 06601300)

$1.49

$

In Stock, Qty 5

0

11

Gravely 049156

Worm Shaft, 16"
(Superseded to 03335200)

$207.99

$

Usually ships in 4-12 days

0

12

Gravely 036863

Seal 1.625 x 2.125 x .250
(Superseded to 05607000)

$9.99

$

In Stock, only 3 left!

0

13

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 2
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

14

Gravely 06301700

Washer-Lock External .250 ID

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 036861

Gearcase Cover
(Superseded to 02401300)

$136.99

$

Usually ships in 4-12 days

0

16

Gravely 036862

Gasket
(Superseded to 00200800)

$3.99

$

In Stock, only 3 left!

0

17

Gravely 036860

Bushing-Flange 1.625 x 1.87 x 1.68 x 2.250
(Superseded to 05505900)

$14.99

$

In Stock, only 4 left!

0

18

Gravely 036859

Washer-Flat-Steel 1.625 x 2.500 x .012
(Superseded to 06408700)

$11.99

$

In Stock, only 4 left!

0

19

Gravely 036858

Worm & Gear Service Assembly
(Superseded to 52400900)

$176.99

$

Usually ships in 4-12 days

0

20

Gravely 037532

Bushing-Sleeve 1.125 x 1.250 x 1.000
(Superseded to 05513900)

$14.99

$

Usually ships in 4-12 days

0

21

Gravely 037530

Gearcase Shaft
(Superseded to 03054700)

$113.99

$

Usually ships in 4-12 days

0

22

Gravely 038820

Key-Feather .25 x .875 x .25
(Superseded to 06604800)

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 037536

Key-Square .25 x .625 x .375
(Superseded to 06604700)

$9.49

$

Usually ships in 4-12 days

0

24

Gravely 035945

Pipe Plug
(Superseded to 00113800)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 036856

Dust Cap
(Superseded to 00403700)

$18.99

$

In Stock, only 1 left!

0

26

Gravely 05947000

Bolt-Hex .31-18X.75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

27

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

29

Gravely 037524

Gearcase

$

$

Not available

30

Gravely 036921

Ring-Retaining-Internal 1.781 x .062
(Superseded to 05707500)

$9.49

$

In Stock, only 1 left!

0

31

Gravely 018446

Bearing-Cone .750 x .61
(Superseded to 05404500)

$22.99

$

In Stock, Qty 20+

0

32

Gravely 53301900

Gearcase Assembly

$

$

Not available

33

Gravely 038110

Bearing-Cone 1.0 x .58
(Superseded to 05406900)

$18.99

$

In Stock, only 4 left!

0

34

Gravely 037528

Seal 1.125 x 1.375 x .125
(Superseded to 05604600)

$10.99

$

In Stock, only 1 left!

0

35

Gravely 037529

Adjustment Plug
(Superseded to 03188200)

$58.99

$

Usually ships in 4-12 days

0

36

Gravely 038109

Bearing-Cup 1.980 x .420
(Superseded to 05407000)

$17.99

$

In Stock, Qty 11

0

37

Gravely 036352

Bearing Spacer
(Superseded to 03188100)

$26.99

$

In Stock, only 1 left!

0

38

Gravely 036852

Bearing Spacer 1.12 x 1.52 x .5
(Superseded to 00200500)

$7.49

$

In Stock, only 2 left!

0

39

Gravely 018445

Bearing-Cup 1.78 x .475
(Superseded to 05404400)

$9.49

$

In Stock, Qty 20+

0

40

Gravely 037535

Washer-Flat-Steel 1.625 x 2.500 x .060
(Superseded to 06421100)

$9.49

$

Usually ships in 4-12 days

0

41

Gravely 037537

Driver
(Superseded to 03055000)

$

$

Not available

42

Gravely 037538

Friction Disc
(Superseded to 03055100)

$97.99

$

Usually ships in 4-12 days

0

43

Gravely 037539

Driven Plate
(Superseded to 03055200)

$

$

Not available

44

Gravely 06529800

Nut-Lock-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 037540

Pressure Plate
(Superseded to 03055300)

$

$

Not available

46

Gravely 05957200

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 12

0

47

Gravely 08321600

Spring-Compression .156 x .665 x .75

$9.49

$

Usually ships in 4-12 days

0

48

Gravely 06436700

Washer-Flat-Steel .323 x .625 x .062
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

49

Gravely 53302900

32" Right Side Rake

Note: (Includes #50)

$452.99

$

Usually ships in 4-12 days

0

49

Gravely 53303000

32" Left Side Rake

Note: (Includes #50)

$387.99

$

Usually ships in 4-12 days

0

50

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

51

Gravely 038831

32" Rake Shaft
(Superseded to 03329100)

$232.99

$

Usually ships in 4-12 days

0

52

Gravely 07028600

Bolt-Serrated Neck Slotted .25-20 x .50

$3.99

$

In Stock, Qty 20+

0

53

Gravely 02437451

Bearing, Support
(Superseded to 05063300)

$28.99

$

In Stock, only 3 left!

0

54

Gravely 036872

Bushing-Flange 1.000 x 1.12 x .62 x 1.50
(Superseded to 05503500)

$12.99

$

In Stock, Qty 18

0

55

Gravely 06436400

Washer-Flat-Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 13

0

56

Gravely 06306600

Washer-Lock .500 x .151
(Superseded to 06300117)

$2.99

$

In Stock, only 1 left!

0

57

Gravely 05947100

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

58

Gravely 06530100

Nut-Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0
