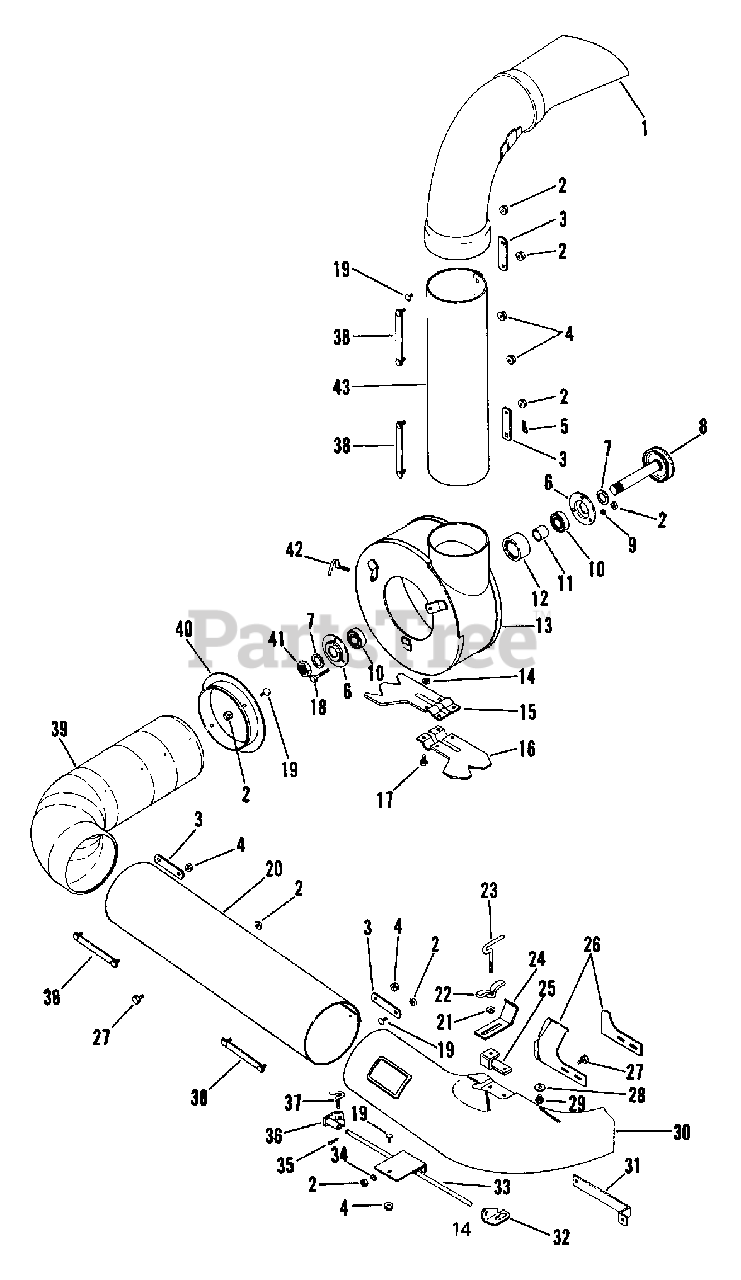

834004 - Ariens Vac Bagger (SN: 000101 & Above) > Parts Diagrams (2) > Bagger Vac Fan And Tubes

  • Title
03053200

1

UPPER ELBOW

Part# 03053200

OEM Warranty Repair Part for Ariens

Not available

06504000

2

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

03053600

3

STRAP

Part# 03053600

OEM Warranty Repair Part for Ariens

Not available

06505600

4

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06702000

5

PIN-HAIR INT .08X.18X1.18

Part# 06702000 (Superseded to 06713500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03185900

6

BEARING FLANGE

Part# 03185900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

06418500

7

WSHR-FL-STL 1.015X1.500X.125

Part# 06418500 (Superseded to 06400025)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03422100

8

SPINDLE WELDMENT

Part# 03422100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $128.51

06406500

9

WSHR-FL-STL .268X.562X.046 PL

Part# 06406500 (Superseded to 06437300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05405200

10

BRG-BALL 1.0X2.0X.56

Part# 05405200 (Superseded to 05416000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

03421900

11

SPACER 1.010X1.250X.924

Part# 03421900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

03421800

12

HOUSING

Part# 03421800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $100.56

53400700

13

FAN HOUSING W/DECAL

Part# 53400700

OEM Warranty Repair Part for Ariens

Not available

06504200

14

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03021500

15

FAN BLADE

Part# 03021500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

03422000

16

FAN BLADE

Part# 03422000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

05900200

17

BLT-HEX .31-18X.63 PL GR 2

Part# 05900200 (Superseded to 05952200)

OEM Warranty Repair Part for Ariens

Not available

05916200

18

BLT-HEX .25-20X2.00 PL GR5

Part# 05916200 (Superseded to 05967100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06205300

19

BLT-RDHDSQNK .25-20X.50 SHT PL

Part# 06205300 (Superseded to 06220600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

53402800

20

TUBE

Part# 53402800

OEM Warranty Repair Part for Ariens

Not available

06400200

21

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01101200

22

WING NUT, .312-18

Part# 01101200 (Superseded to 07534800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

03073400

23

CLAMP SCREW

Part# 03073400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03073600

24

DEFLECTOR STOP

Part# 03073600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03024900

25

COLLECTOR BOOT CLAMP

Part# 03024900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

03073500

25

VAC PLATE

Part# 03073500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

03038900

26

PLATE

Part# 03038900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

05908000

27

BLT-HEX .25-20X.63 PL GR2

Part# 05908000 (Superseded to 05932000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06403700

28

WSHR-FL-STL .281X1.250X.048PL

Part# 06403700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

05910400

29

BLT-HEX .25-20X.38 PL GR2

Part# 05910400 (Superseded to 05947600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

03073700

30

BOOT

Part# 03073700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $115.21

03038200

31

BRACKET - STOP

Part# 03038200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.11

03073000

32

BOOT CLIP

Part# 03073000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

03073100

33

BOOT BRACE

Part# 03073100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $53.61

06400100

34

WSHR-FL-STL .250X.562X.049 PL

Part# 06400100 (Superseded to 06442300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06700100

35

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

03073200

36

BOOT CLAMP

Part# 03073200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $53.61

03073300

37

CLAMP SCREW

Part# 03073300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

02533300

38

CLIP

Part# 02533300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

03053100

39

ADAPTER

Part# 03053100

OEM Warranty Repair Part for Ariens

Not available

03053700

40

HOSE ADAPTER

Part# 03053700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

06512000

41

NUT-LK-JAM 1.0-14 PL

Part# 06512000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

03444800

42

CLAMP SCREW

Part# 03444800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

03053400

43

TUBE, UPPER

Part# 03053400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $128.51
