834006 - Ariens 36" Sno-Thro Attachment (SN: 000101 & Above) Auger / Impeller And Gear Case Parts Diagram

36" Sno-Thro Attachment

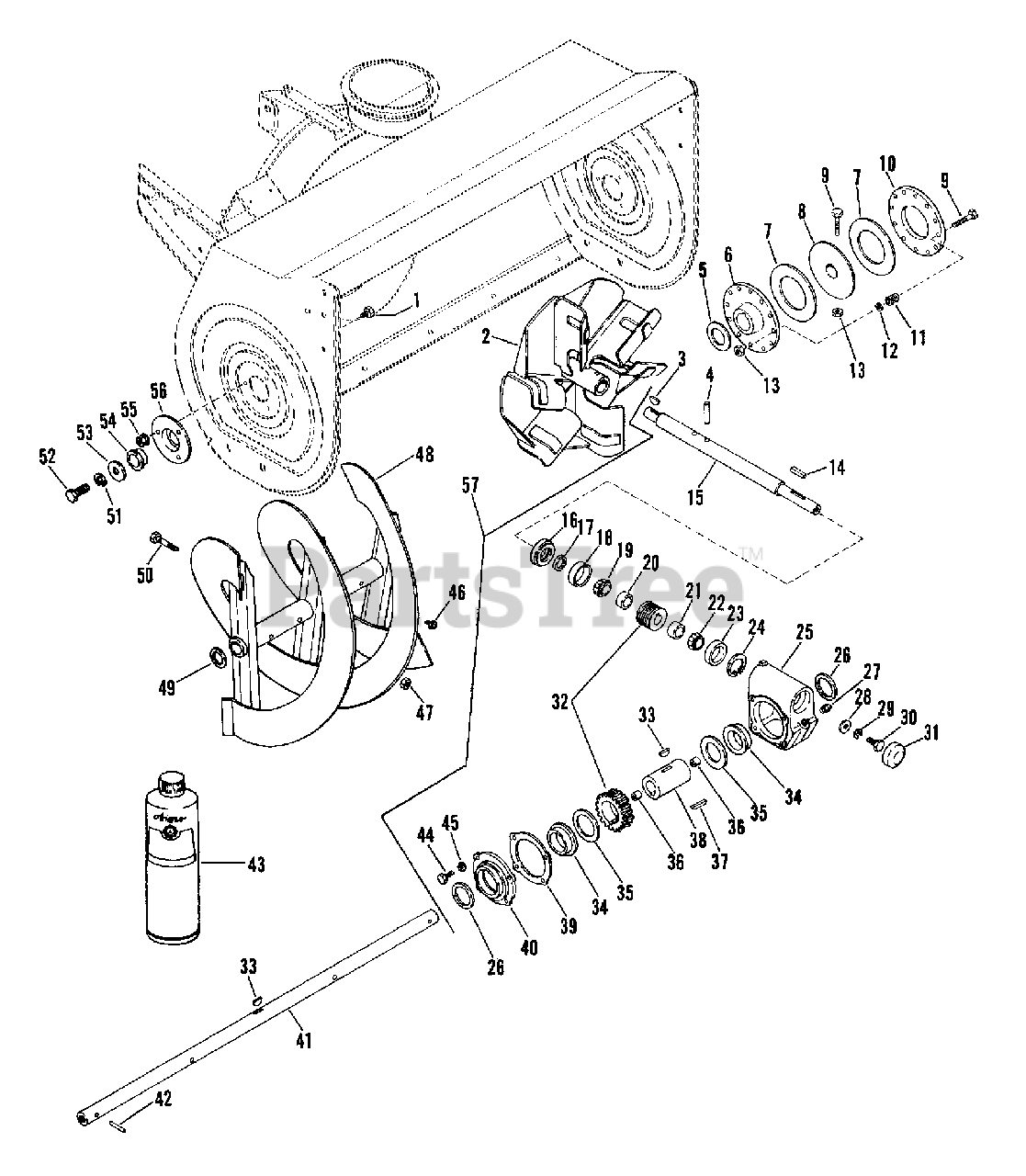

Auger / Impeller And Gear Case Parts Diagram

  • Title

1

Ariens 07005800

BLT-SERNK SL .25-20X.50 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

2

Ariens 02437600

FAN - 14"
(Superseded to 02437651)

Note: (834006)

$281.99

$

Usually ships in 4-12 days

0

2

Ariens 03188900

FAN

Note: (834009)

$672.99

$

Usually ships in 4-12 days

0

3

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 11

0

4

Ariens 05801500

PIN-ROLL .313X1.75

$2.49

$

In Stock, Qty 8

0

5

Ariens 06421100

WSHR-FL-NYL 1.625X2.500X.060

$9.49

$

Usually ships in 4-12 days

0

6

Ariens 03055000

DRIVER

$

$

Not available

7

Ariens 03055100

FRICTION DISC

$97.99

$

Usually ships in 4-12 days

0

8

Ariens 03055200

DRIVEN PLATE

$

$

Not available

9

Ariens 05917000

BLT-HEX .31-18X2.00 PL GR5
(Superseded to 05957200)

$1.49

$

In Stock, Qty 12

0

10

Ariens 03055300

PRESSURE PLATE

$

$

Not available

11

Ariens 08321600

SG-COMP .156X.665X.75

$9.49

$

Usually ships in 4-12 days

0

12

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

13

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

15

Ariens 03519400

WORM SHAFT

Note: (834006)

$218.99

$

In Stock, only 1 left!

0

15

Ariens 03436200

WORM SHAFT

Note: (834009)

$

$

Not available

16

Ariens 02401500

ADJUSTMENT PLUG - 1" SHAFT

Note: (834006)

$92.99

$

Usually ships in 4-12 days

0

16

Ariens 03188200

ADJUSTMENT PLUG

Note: (834009)

$58.99

$

Usually ships in 4-12 days

0

17

Ariens 05606100

SEAL 1.000X1.312X.150

Note: (834006)

$11.99

$

In Stock, Qty 5

0

17

Ariens 05604600

SEAL 1.125X1.375X.125

Note: (834009)

$10.99

$

In Stock, only 1 left!

0

18

Ariens 05404400

BRG-CUP 1.781X.475

Note: (834006)

$9.49

$

In Stock, Qty 20+

0

18

Ariens 05407000

BRG-CUP1.980X.420

Note: (834009)

$17.99

$

In Stock, Qty 13

0

19

Ariens 05404500

BRG-CONE .750X.61

Note: (834006)

$22.99

$

In Stock, Qty 20+

0

19

Ariens 05406900

BRG-CONE 1.0X.58

Note: (834009)

$18.99

$

In Stock, Qty 7

0

20

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

Note: (834006)

$7.49

$

In Stock, only 2 left!

0

20

Ariens 03188100

BEARING SPACER 1.032X1.25X1.78

Note: (834009)

$26.99

$

In Stock, only 1 left!

0

21

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

22

Ariens 05404500

BRG-CONE .750X.61

$22.99

$

In Stock, Qty 20+

0

23

Ariens 05404400

BRG-CUP 1.781X.475

$9.49

$

In Stock, Qty 20+

0

24

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.49

$

In Stock, only 1 left!

0

25

Ariens 02400200

GEAR CASE - CAST IRON

Note: (834006)

$355.99

$

Usually ships in 4-12 days

0

25

Ariens 03187900

GEAR CASE - CAST IRON

Note: (834009)

$362.99

$

In Stock, only 1 left!

0

26

Ariens 05607000

SEAL 1.625X2.125X.250

$9.99

$

In Stock, only 3 left!

0

27

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

29

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

30

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

31

Ariens 00403700

DUST CAP

$18.99

$

In Stock, only 1 left!

0

32

Ariens 52400900

WORM & GEAR SERVICE ASSEMBLY

$176.99

$

Usually ships in 4-12 days

0

33

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

Note: (834006)

$3.99

$

In Stock, only 2 left!

0

33

Ariens 06604800

KEY-FTHR .25X.875X.25 SAE 8630

Note: (834009)

$6.99

$

Usually ships in 4-12 days

0

34

Ariens 05505900

BSHG-FLG .683X1.87X1.68X2.250

$14.99

$

In Stock, only 4 left!

0

35

Ariens 06408700

WSHR-FL-STL 1.625X2.500X.012

$11.99

$

In Stock, only 4 left!

0

36

Ariens 05513900

BSHG-SLV 1.125X1.250X1.000

$14.99

$

Usually ships in 4-12 days

0

37

Ariens 06604700

KEY-SQ .25X.625X.375

$9.49

$

Usually ships in 4-12 days

0

38

Ariens 03054700

GEAR CASE SHAFT

$113.99

$

Usually ships in 4-12 days

0

39

Ariens 00200800

GASKET

$3.99

$

In Stock, only 3 left!

0

40

Ariens 02401300

GEAR CASE COVER

$136.99

$

Usually ships in 4-12 days

0

41

Ariens 03519500

SHAFT, 36" RAKE - 1.00 DIA.

Note: (834006)

$

$

Not available

41

Ariens 03436400

40 INCH RAKE SHAFT

Note: (834009)

$91.99

$

Usually ships in 4-12 days

0

42

Ariens 05803000

PIN-ROLL .188X1.50

Note: (834006)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$17.99

$

In Stock, Qty 13

0

44

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 12

0

45

Ariens 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

46

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

47

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

48

Ariens 53503500

RAKE, LEFT-36"(1"ID X 15.75OD)
(Superseded to 52412500)

Note: (834006)

$

$

Not available

48

Ariens 53401900

RAKE, LEFT-40"(1.12ID X 15.75)

Note: (834009)

$

$

Not available

48

Ariens 53503400

RAKE, RIGHT-36"(1ID X 15.75OD)
(Superseded to 52412600)

Note: (834006)

$

$

Not available

48

Ariens 53402000

RAKE, RIGHT-40(1.12ID X 15.75)

Note: (834009)

$

$

Not available

49

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

Note: (834006)

$1.49

$

In Stock, Qty 16

0

50

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

Note: (834006)

$4.99

$

In Stock, Qty 8

0

50

Ariens 05917000

BLT-HEX .31-18X2.00 PL GR5
(Superseded to 05957200)

Note: (834009)

$1.49

$

In Stock, Qty 12

0

51

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

52

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

53

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 13

0

54

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 18

0

55

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

56

Ariens 02437400

BEARING SUPPORT
(Superseded to 05063300)

$28.99

$

In Stock, only 3 left!

0

57

Ariens 53502200

GEAR CASE - 40" - CAST IRON

Note: (834006)

$

$

Not available

57

Ariens 53402100

GEAR CASE - CAST IRON

Note: (834009)

$

$

Not available
