834006 - Ariens 36" Sno-Thro Attachment (SN: 000101 & Above) Sno-Thro Controls Parts Diagram

36" Sno-Thro Attachment

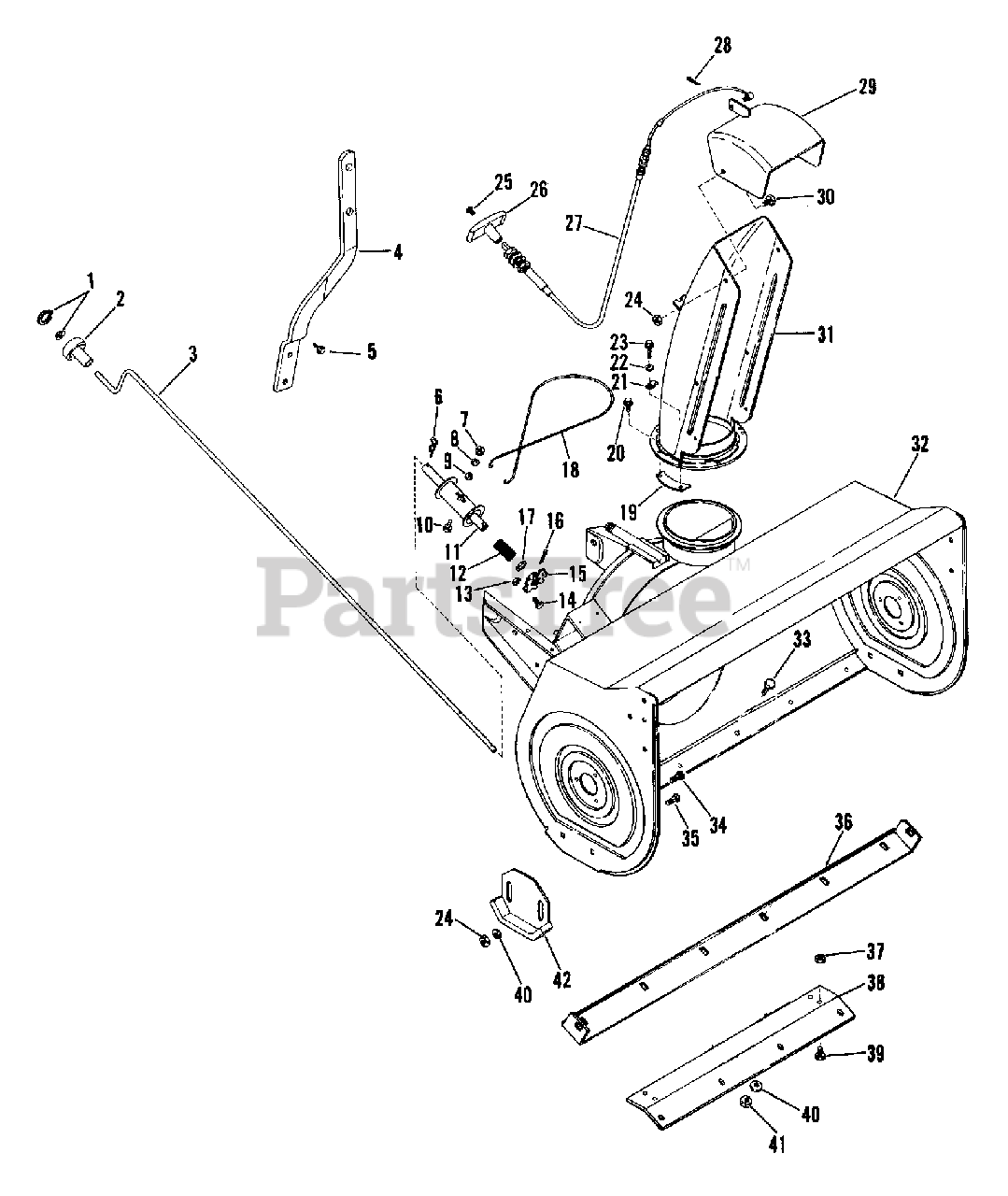

Sno-Thro Controls Parts Diagram

  • Title

1

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.52

$

In Stock, Qty 20+

0

1

Ariens 05708600

RG-RTNG-EXT .500X.015

$2.46

$

In Stock, Qty 12

0

1

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

Note: (09)

$1.96

$

In Stock, only 4 left!

0

2

Ariens 07508300

KNOB

Note: (06)

$15.37

$

In Stock, Qty 10

0

2

Ariens 07509600

KNOB

Note: (09)

$42.54

$

Usually ships in 4-12 days

0

3

Ariens 03031300

CRANK - CHUTE CONTROL
(Superseded to 07509600)

Note: (06)

$42.54

$

Usually ships in 4-12 days

0

3

Ariens 03081900

CHUTE CONTROL CRANK

Note: (09)

$133.88

$

Usually ships in 4-12 days

0

4

Ariens 03424200

CHUTE CRANK SUPPORT

$

$

Not available

5

Ariens 07402300

SCR-TAP .312-18X1.0 HWH PL TR
(Superseded to 07413900)

$3.63

$

In Stock, Qty 5

0

6

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.24

$

In Stock, only 3 left!

0

7

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$1.96

$

In Stock, Qty 8

0

8

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$5.53

$

In Stock, only 2 left!

0

9

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$1.96

$

In Stock, Qty 20+

0

10

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

11

Ariens 03028600

SPOOL
(Superseded to 03028643)

$33.48

$

Usually ships in 4-12 days

0

12

Ariens 08316900

SG-COMP .054X.75X1.6

$22.30

$

Usually ships in 4-12 days

0

13

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$1.96

$

In Stock, Qty 18

0

14

Ariens 05915600

SCR-SKH 10-24X.38

$1.68

$

Usually ships in 4-12 days

0

15

Ariens 03028700

DISC ASSEMBLY

$53.61

$

Usually ships in 4-12 days

0

16

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.40

$

In Stock, only 3 left!

0

17

Ariens 06421200

WSHR-FL-STL .640X1.005X.062 PL
(Superseded to 06436100)

$2.24

$

In Stock, Qty 20+

0

18

Ariens 03187100

CABLE

$159.61

$

Usually ships in 4-12 days

0

19

Ariens 01043800

CHUTE CLAMP
(Superseded to 52409200)

$29.29

$

Usually ships in 4-12 days

0

20

Ariens 07406700

SCR-TAP 10-24X.375 CRPH PL 1A

$

$

Not available

21

Ariens 06900300

CABLE CLAMP

$

$

Not available

22

Ariens 06414100

WSHR-FL-STL .219X.500X.049 PL
(Superseded to 06442700)

$2.52

$

Usually ships in 4-12 days

0

23

Ariens 07406800

SCR-TAP 10-24X.75 CRPH 1A

$

$

Not available

24

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$2.24

$

In Stock, Qty 20+

0

25

Ariens 06106500

SCR-MCH 10-32X.50 SLPAN SS

$2.12

$

Usually ships in 4-12 days

0

26

Ariens 07513700

TEE HANDLE

$46.90

$

Usually ships in 4-12 days

0

27

Ariens 06913700

CONTROL CABLE
(Superseded to 06943400)

$144.20

$

In Stock, only 1 left!

0

28

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$1.96

$

In Stock, Qty 10

0

29

Ariens 53114400

DEFLECTOR W/DECAL

$

$

Not available

30

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$2.18

$

In Stock, only 3 left!

0

31

Ariens 03028300

DISCHARGE CHUTE
(Superseded to 03028359)

$136.53

$

In Stock, only 1 left!

0

32

Ariens 53504500

36 IN SNO-THRO HOUSING WITH DE

Note: (06)

$

$

Not available

32

Ariens 53401800

THROWER HOUSING W/DECALS

Note: (09)

$

$

Not available

33

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.80

$

In Stock, Qty 20+

0

34

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.80

$

In Stock, Qty 20+

0

35

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$2.80

$

In Stock, Qty 20+

0

36

Ariens 03519200

SCRAPER BLADE 36"
(Superseded to 03519259)

Note: (06)

$58.08

$

In Stock, only 1 left!

0

36

Ariens 03436359

SCRAPPER BLADE

Note: (09)

$81.78

$

Usually ships in 4-12 days

0

37

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.12

$

Usually ships in 4-12 days

0

38

Ariens 03519300

BLADE BRACE
(Superseded to 03519343)

Note: (06)

$

$

Not available

38

Ariens 03438100

SCRAPER BLADE BRACE
(Superseded to 03438143)

Note: (09)

$

$

Not available

39

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$2.18

$

In Stock, only 3 left!

0

40

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.18

$

In Stock, Qty 20+

0

41

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.52

$

In Stock, Qty 20+

0

42

Ariens 03075500

RUNNER-SKID SHOE
(Superseded to 03075559)

$35.72

$

In Stock, only 2 left!

0
