834009 - Ariens 40" Sno-Thro Attachment (SN: 000101 & Above) Sno-Thro Belt Drive Parts Diagram

40" Sno-Thro Attachment

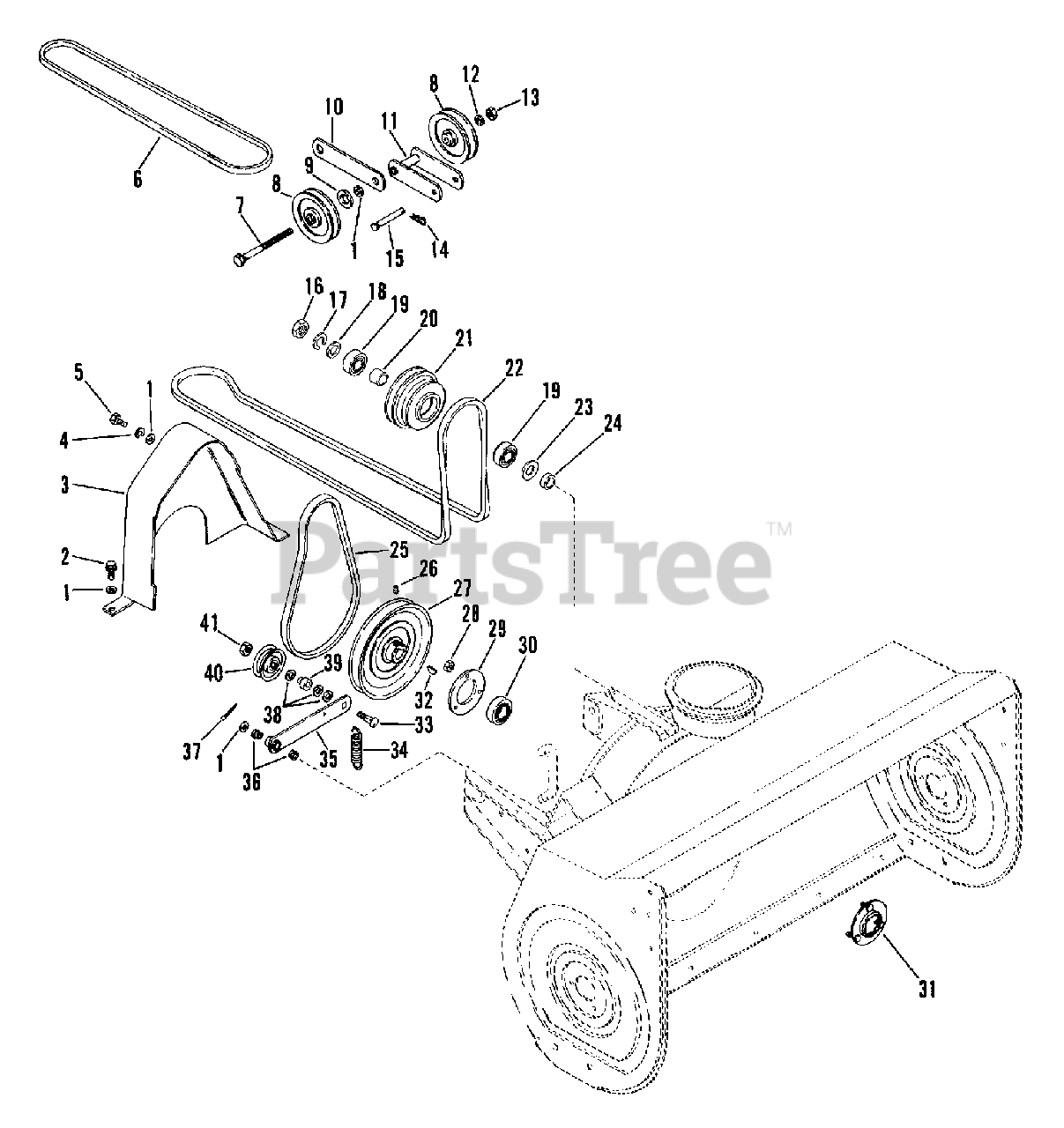

Sno-Thro Belt Drive Parts Diagram

  • Title
1

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$2.18

$

In Stock, Qty 20+

0

2

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$2.24

$

In Stock, Qty 20+

0

3

Ariens 03520000

BELT GUARD

$

$

Not available

4

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$2.24

$

In Stock, Qty 20+

0

5

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.96

$

In Stock, Qty 20+

0

6

Ariens 07211800

V-BELT, 4L-RAW EDGE

$27.17

$

In Stock, only 2 left!

0

7

Ariens 05917500

BLT-HEX .38-16X5.00 PL GR2
(Superseded to 05957700)

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$39.07

$

In Stock, only 1 left!

0

9

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.58

$

In Stock, Qty 20+

0

10

Ariens 03518400

STRAP
(Superseded to 03339543)

$12.24

$

Usually ships in 4-12 days

0

11

Ariens 03424300

IDLER BRACKET WELDMENT

$

$

Not available

12

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$2.24

$

Usually ships in 4-12 days

0

13

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.96

$

Usually ships in 4-12 days

0

14

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$1.96

$

In Stock, Qty 20+

0

15

Ariens 03518600

CLEVIS PIN 3/8X3.0 YWZC

$

$

Not available

16

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$3.63

$

In Stock, Qty 20+

0

17

Ariens 06302700

WSHR-LK-INT .750X.050 MED
(Superseded to 06310800)

$

$

Not available

18

Ariens 06410800

WSHR-FL-STL .781X1.250X.059 PL
(Superseded to 06416700)

$

$

Not available

19

Ariens 05412000

BRG-BALL .750X1.781X.61

$8.89

$

In Stock, only 3 left!

0

20

Ariens 03519000

SPACER 1.00 X .770/.760 X .813

$5.53

$

Usually ships in 4-12 days

0

21

$

$

Not available

22

Ariens 07214100

V-BELT, 4L-WRAPPED

$49.25

$

Usually ships in 4-12 days

0

23

Ariens 06410900

WSHR-FL-STL .781X1.500X.188
(Superseded to 06439000)

$2.52

$

In Stock, Qty 20+

0

24

Ariens 03519100

SPACER 1.00 X .770/.760 X .375

$

$

Not available

25

Ariens 07214200

V-BELT, 4L-COGGED

$22.25

$

In Stock, only 3 left!

0

26

Ariens 06000300

SCR-SET .32-18X.50 SKHCUP OH
(Superseded to 06003200)

$

$

Not available

27

Ariens 07309400

PLY-V 7.50 X .75 W/KEY SALEM

$67.02

$

Usually ships in 4-12 days

0

28

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$2.24

$

In Stock, Qty 20+

0

29

Ariens 03185900

BEARING FLANGE

$20.24

$

In Stock, Qty 7

0

30

Ariens 05405200

BRG-BALL 1.0X2.0X.56
(Superseded to 05416000)

$27.89

$

In Stock, only 2 left!

0

31

Ariens 03186000

BEARING FLANGE

$44.55

$

Usually ships in 4-12 days

0

32

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.80

$

In Stock, Qty 20+

0

33

Ariens 06205600

BLT-RDHDSQNK .38-16X1.50 PL
(Superseded to 06224200)

$3.63

$

In Stock, Qty 20+

0

34

Ariens 08312200

SG-TENS .090X.75X3.50 WLD 34

$33.48

$

In Stock, only 2 left!

0

35

Ariens 03518800

IDLER ARM

$

$

Not available

36

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$3.63

$

In Stock, Qty 20+

0

37

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$1.68

$

In Stock, Qty 13

0

38

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.63

$

In Stock, only 1 left!

0

39

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$9.45

$

In Stock, only 4 left!

0

40

Ariens 02457400

IDLER
(Superseded to 52007000)

$44.55

$

In Stock, Qty 14

0

41

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$2.24

$

In Stock, Qty 20+

0
