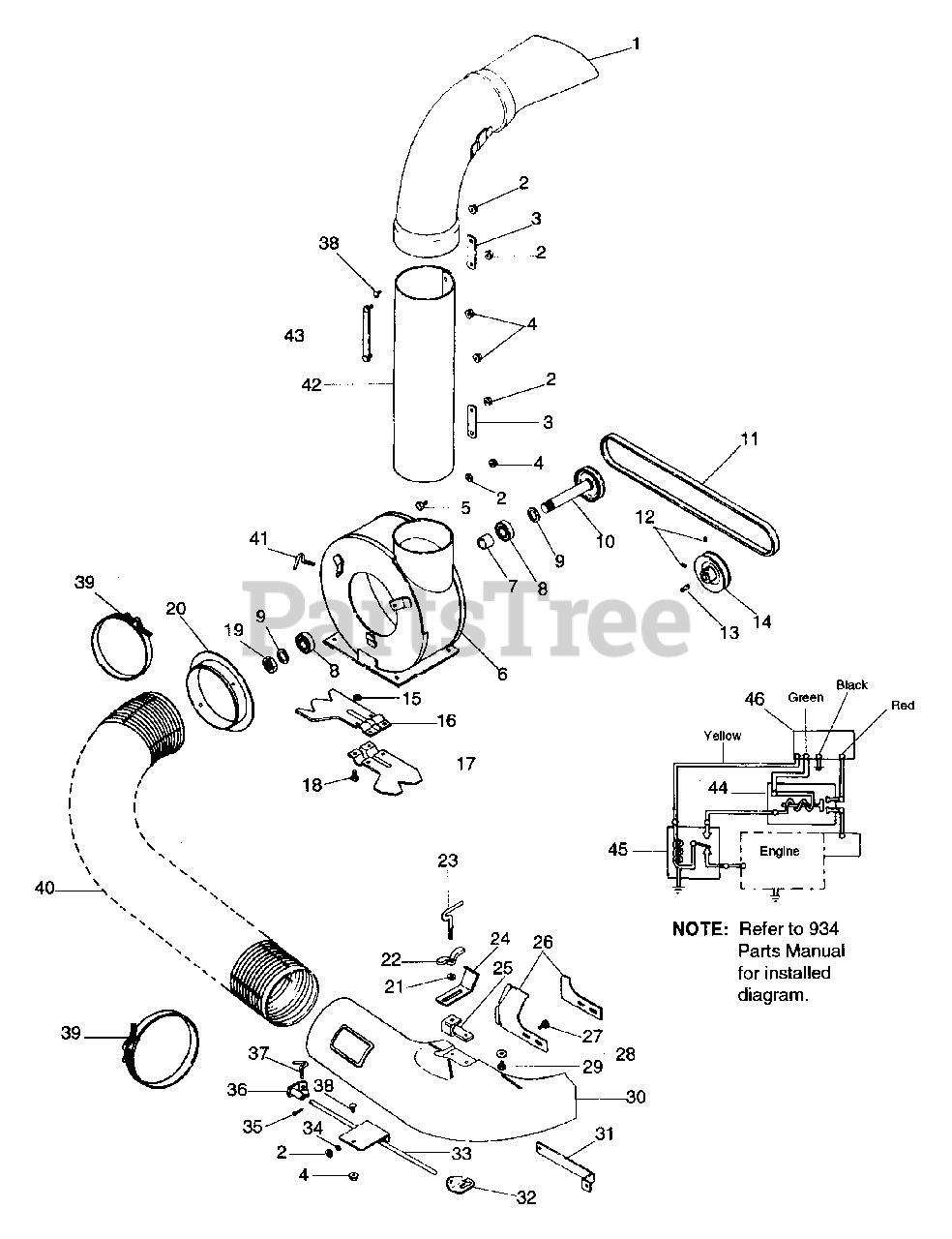

834014 - Ariens Vac Bagger (SN: 000101 & Above) > Parts Diagrams (2) > Bagger Vac Chute

  • Title

IMPORTANT: not for 934007

Part#

Not available

03053200

1

UPPER ELBOW

Part# 03053200

OEM Warranty Repair Part for Ariens

Not available

06504000

2

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

03053600

3

STRAP

Part# 03053600

OEM Warranty Repair Part for Ariens

Not available

06505600

4

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05908200

5

BLT-HEX .25-20X.75 PL GR5

Part# 05908200 (Superseded to 05946800)

OEM Warranty Repair Part for Ariens

Not available

03336900

6

G-FAN HSG

Part# 03336900 (Superseded to 58700400)

OEM Warranty Repair Part for Ariens

Not available

03421900

7

SPACER 1.010X1.250X.924

Part# 03421900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $32.65

05405200

8

BRG-BALL 1.0X2.0X.56

Part# 05405200 (Superseded to 05416000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

06418500

9

WSHR-FL-STL 1.015X1.500X.125

Part# 06418500 (Superseded to 06400025)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03422100

10

SPINDLE WELDMENT

Part# 03422100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $169.66

07217600

11

BELT,HA RAW COGGED

Part# 07217600

OEM Warranty Repair Part for Ariens

Not available

06000800

12

SCR-SET .25-20X.38 SKHCUP OH

Part# 06000800

OEM Warranty Repair Part for Ariens

Not available

06601300

13

KEY-SQ .188X1.0X.188 SAE 8630

Part# 06601300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

07315200

14

PLY-V 4.00 X .75 W/KEY ADAMS

Part# 07315200

OEM Warranty Repair Part for Ariens

Not available

06504200

15

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03021500

16

FAN BLADE

Part# 03021500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.61

03422000

17

FAN BLADE

Part# 03422000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.61

05900200

18

BLT-HEX .31-18X.63 PL GR 2

Part# 05900200 (Superseded to 05952200)

OEM Warranty Repair Part for Ariens

Not available

06512000

19

NUT-LK-JAM 1.0-14 PL

Part# 06512000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

03053700

20

HOSE ADAPTER

Part# 03053700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

06400200

21

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01101200

22

WING NUT, .312-18

Part# 01101200 (Superseded to 07534800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.89

03073400

23

CLAMP SCREW

Part# 03073400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $25.04

03073600

24

DEFLECTOR STOP

Part# 03073600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.94

03024900

25

COLLECTOR BOOT CLAMP

Part# 03024900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.00

03073500

26

VAC PLATE

Part# 03073500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.55

03038900

26

PLATE

Part# 03038900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $7.32

05908000

27

BLT-HEX .25-20X.63 PL GR2

Part# 05908000 (Superseded to 05932000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06403700

28

WSHR-FL-STL .281X1.250X.048PL

Part# 06403700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

05910400

29

BLT-HEX .25-20X.38 PL GR2

Part# 05910400 (Superseded to 05947600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

03073700

30

BOOT

Part# 03073700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $115.21

03038200

31

BRACKET - STOP

Part# 03038200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.94

03073000

32

BOOT CLIP

Part# 03073000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.68

03073100

33

BOOT BRACE

Part# 03073100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $64.90

06400100

34

WSHR-FL-STL .250X.562X.049 PL

Part# 06400100 (Superseded to 06442300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.45

06700100

35

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03073200

36

BOOT CLAMP

Part# 03073200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $64.90

03073300

37

CLAMP SCREW

Part# 03073300

OEM Warranty Repair Part for Ariens

Not available

06205300

38

BLT-RDHDSQNK .25-20X.50 SHT PL

Part# 06205300 (Superseded to 06220600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03022400

39

CLAMP-HOSE WRM 2.13/8.62X.56

Part# 03022400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

03465300

40

HOSE 7 X 44.5

Part# 03465300

OEM Warranty Repair Part for Ariens

Not available

03444800

41

CLAMP SCREW

Part# 03444800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.70

03465200

42

UPPER TUBE BLANK

Part# 03465200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

02533300

43

CLIP

Part# 02533300

OEM Warranty Repair Part for Ariens

Not available

03551000

44

SOLENOID

Part# 03551000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.55

03042800

45

RELAY

Part# 03042800 (Superseded to 00432101)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

03462600

46

HTH VAC WIRE HARNESS

Part# 03462600

OEM Warranty Repair Part for Ariens

Not available

03462800

47

SPRING SWITCH, PULL ON

Part# 03462800

OEM Warranty Repair Part for Ariens

Not available
