834019 - Ariens 42" Front Blade (SN: 000101 & Above) Blade 42" Parts Diagram

42" Front Blade

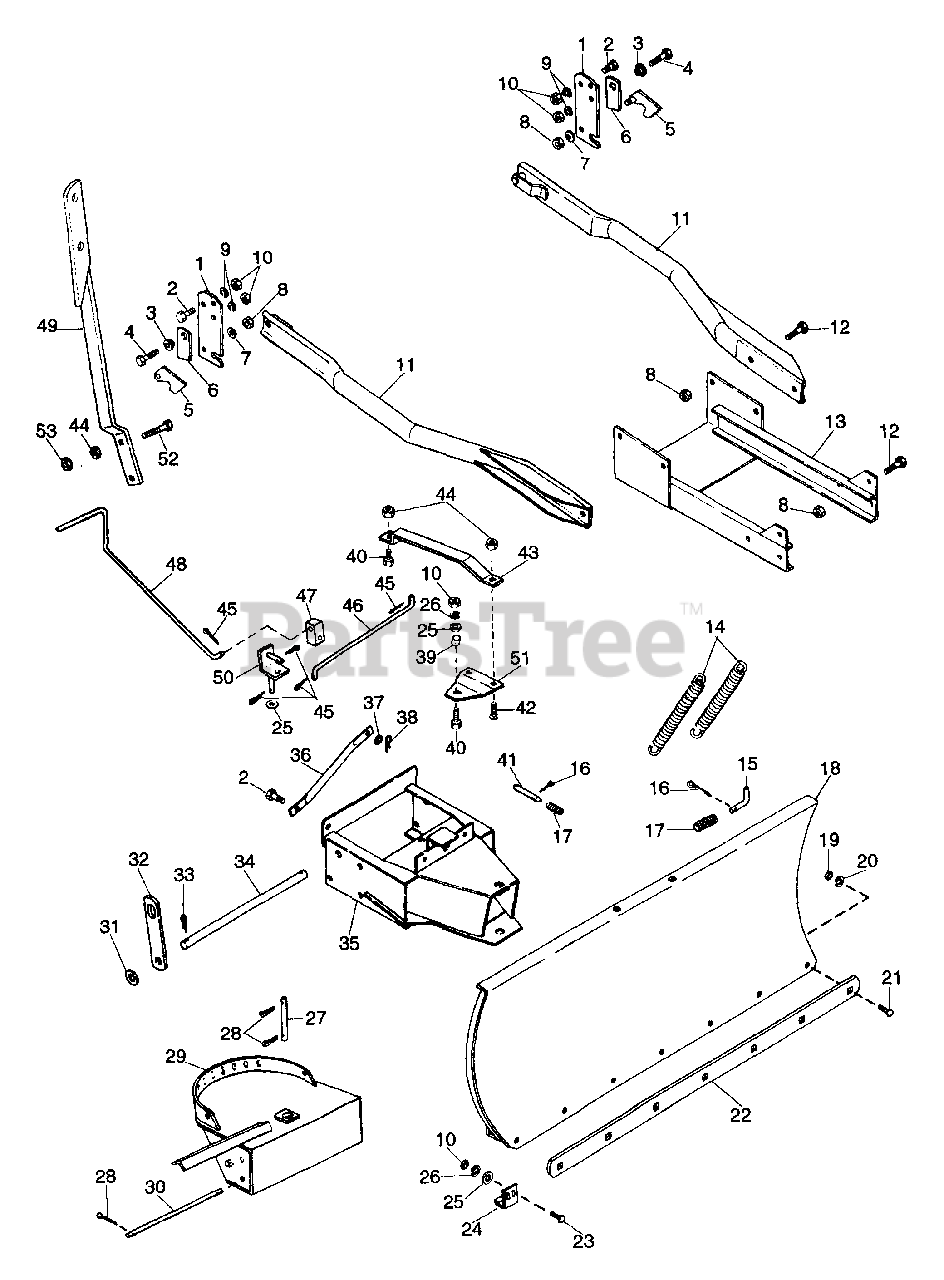

Blade 42" Parts Diagram

  • Title

IMPORTANT: Not for 934007

$

$

Not available

1

Ariens 03459500

REAR HANGER

$

$

Not available

2

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03459700

SPACER .400X.625X.400X.875

$

$

Not available

4

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 5

0

5

Ariens 03055400

LATCH RH

$

$

Not available

Ariens 03055500

LATCH LH

$62.99

$

Usually ships in 4-12 days

0

6

Ariens 03460000

LOCK STOP

$

$

Not available

7

Ariens 02902400

SPRING WASHER

$18.99

$

Usually ships in 4-12 days

0

8

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

10

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

Usually ships in 4-12 days

0

11

Ariens 03459900

REAR ATTACHMENT BRACE

$

$

Not available

12

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

13

Ariens 03460100

CHANNEL-CROSS

$

$

Not available

14

Ariens 08313300

SG-TENS .187X1.50X9.94 WLD 40

$45.99

$

In Stock, only 1 left!

0

15

Ariens 03127700

JACK PIN

$5.99

$

Usually ships in 4-12 days

0

16

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

17

Ariens 08313200

SG-COMP .080X.85X1.44

$38.99

$

Usually ships in 4-12 days

0

18

Ariens 03431300

BLADE 42 INCH

$

$

Not available

19

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

20

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

21

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 13

0

22

Ariens 03431400

WEAR PLATE
(Superseded to 02918600)

$

$

Not available

23

Ariens 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

24

Ariens 03127100

SKID SHOE

$

$

Not available

25

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

Usually ships in 4-12 days

0

26

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 18

0

27

Ariens 03127600

PIN

$34.99

$

Usually ships in 4-12 days

0

28

Ariens 06702600

PIN-COTR .18X1.0 PL
(Superseded to 06712000)

$1.99

$

Usually ships in 4-12 days

0

29

Ariens 03125100

SUPPORT

$

$

Not available

30

Ariens 03127200

ROD

$39.99

$

Usually ships in 4-12 days

0

31

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

In Stock, Qty 18

0

32

Ariens 03460600

LIFT LINK

$

$

Not available

33

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 2 left!

0

34

Ariens 03461100

PIVOT ROD

$

$

Not available

35

Ariens 03461800

FRAME HTH BLADE

$

$

Not available

36

Ariens 03461000

ROD

$

$

Not available

37

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 9

0

38

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

39

Ariens 02914000

SPACER .406X.749X.162

$

$

Not available

40

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

$2.49

$

In Stock, only 2 left!

0

41

Ariens 03125400

LATCH PIN

$

$

Not available

42

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 9

0

43

Ariens 03126700

STRAP

$

$

Not available

44

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 9

0

46

Ariens 03125300

ROD

$

$

Not available

47

Ariens 03126800

UNIVERSAL BLOCK JOINT

$

$

Not available

48

Ariens 03431500

ROD

$

$

Not available

49

Ariens 03459300

CHUTE CRANK SUPPORT

$

$

Not available

50

Ariens 03126900

ANGLE

$

$

Not available

51

Ariens 03125200

PIVOT PLATE

$

$

Not available

52

Ariens 05921500

BLT-HEX .31-18X1.50 GR2 YWZC

$2.49

$

Usually ships in 4-12 days

0

53

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0
