834023 - Ariens 17 Bushel Cart (SN: 000101 & Above) 17 Bushel Cart Parts Diagram

17 Bushel Cart

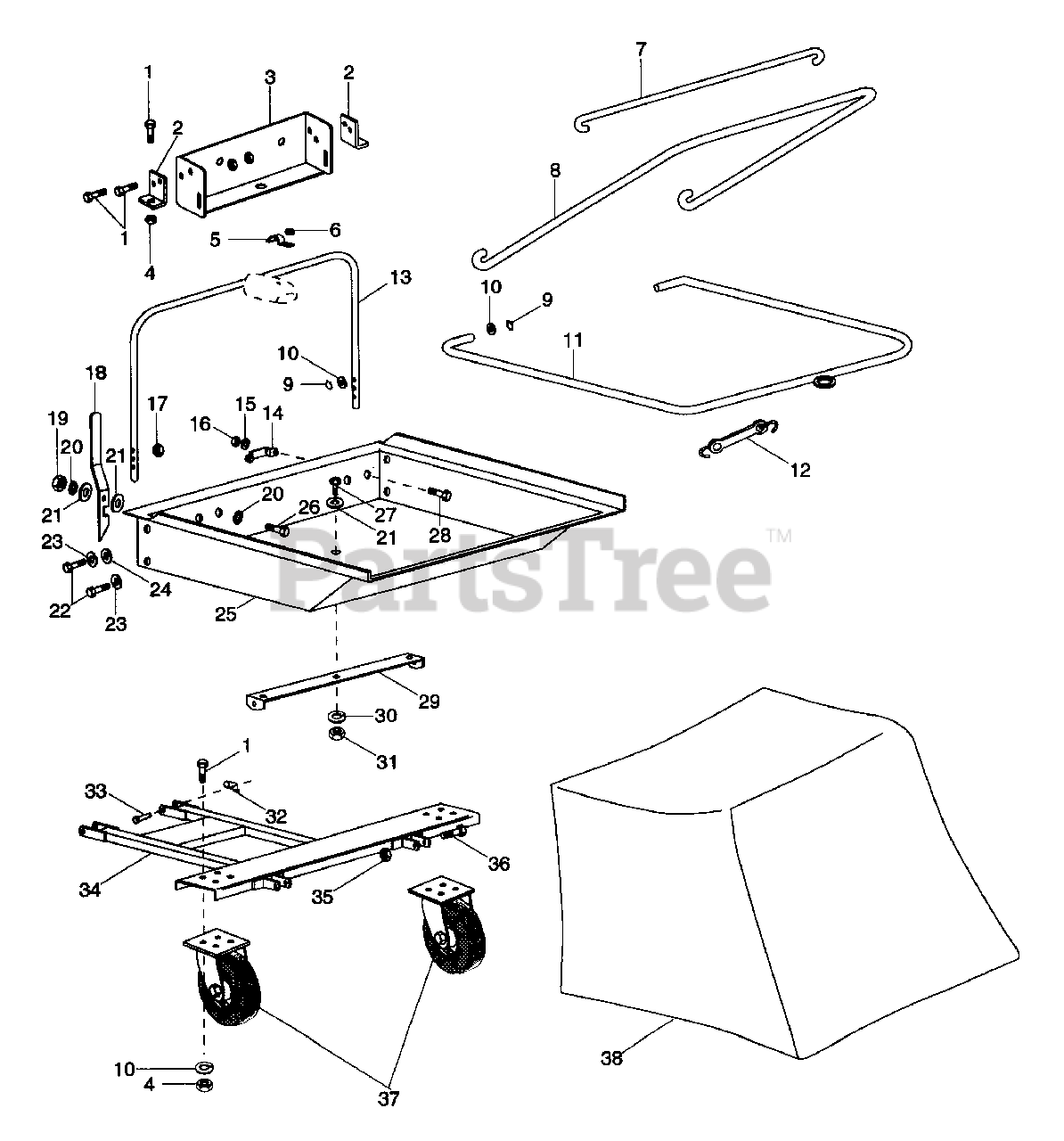

17 Bushel Cart Parts Diagram

  • Title

1

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 03481500

STRAP

$

$

Not available

3

Ariens 03481400

BRACKET, HITCH

$

$

Not available

4

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

5

Ariens 03481800

SLEEVE CLAMP, 1" W/VINYL

$

$

Not available

6

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

In Stock, only 2 left!

0

7

Ariens 03480500

ROD, STRAIGHT

$

$

Not available

8

Ariens 03480300

ROD, SUPPORT

$

$

Not available

9

Ariens 03480600

CIRCLE COTTER

$

$

Not available

10

Ariens 06420000

WSHR-FL-STL .406X1.00X.062 PL

$

$

Not available

11

Ariens 03480400

ROD, FRAME

$

$

Not available

12

Ariens 03480700

STRAP, RUBBER 6 INCH

$

$

Not available

13

Ariens 03480000

SUPPORT TUBE

$

$

Not available

14

Ariens 03481100

HANDLE, LIFT

$

$

Not available

15

Ariens 06302500

WSHR-LK .250X.047 LT PL
(Superseded to 06307000)

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 7

0

17

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 03480800

HANDLE, LATCH

$

$

Not available

19

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 03480900

WASHER, SPRING 5/16

$

$

Not available

21

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

Usually ships in 4-12 days

0

23

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

24

Ariens 03480100

SPACER - PLASTIC,5/16

$

$

Not available

25

Ariens 03479900

BOX

$

$

Not available

26

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 8

0

27

Ariens 06104200

SCR-MCH .31-18X.75 TSKBHD PL
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

28

Ariens 06101500

SCR-MCH .25-20X.50 SLRH

$

$

Not available

29

Ariens 03481000

U-BRACKET

$

$

Not available

30

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

31

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

32

Ariens 03481700

CLIP, SAFETY
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

33

Ariens 03481600

PIN, CLEVIS, 1/2 X 1 1/4

$

$

Not available

34

Ariens 03481200

FRAME

$

$

Not available

35

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 2 left!

0

36

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

$3.49

$

Usually ships in 4-12 days

0

37

Ariens 03481300

WHEEL, SWIVEL 410/350-4

$

$

Not available

38

Ariens 03480200

COVER

$

$

Not available

39

Ariens 07786500

DECAL-ARIENS

$

$

Not available
