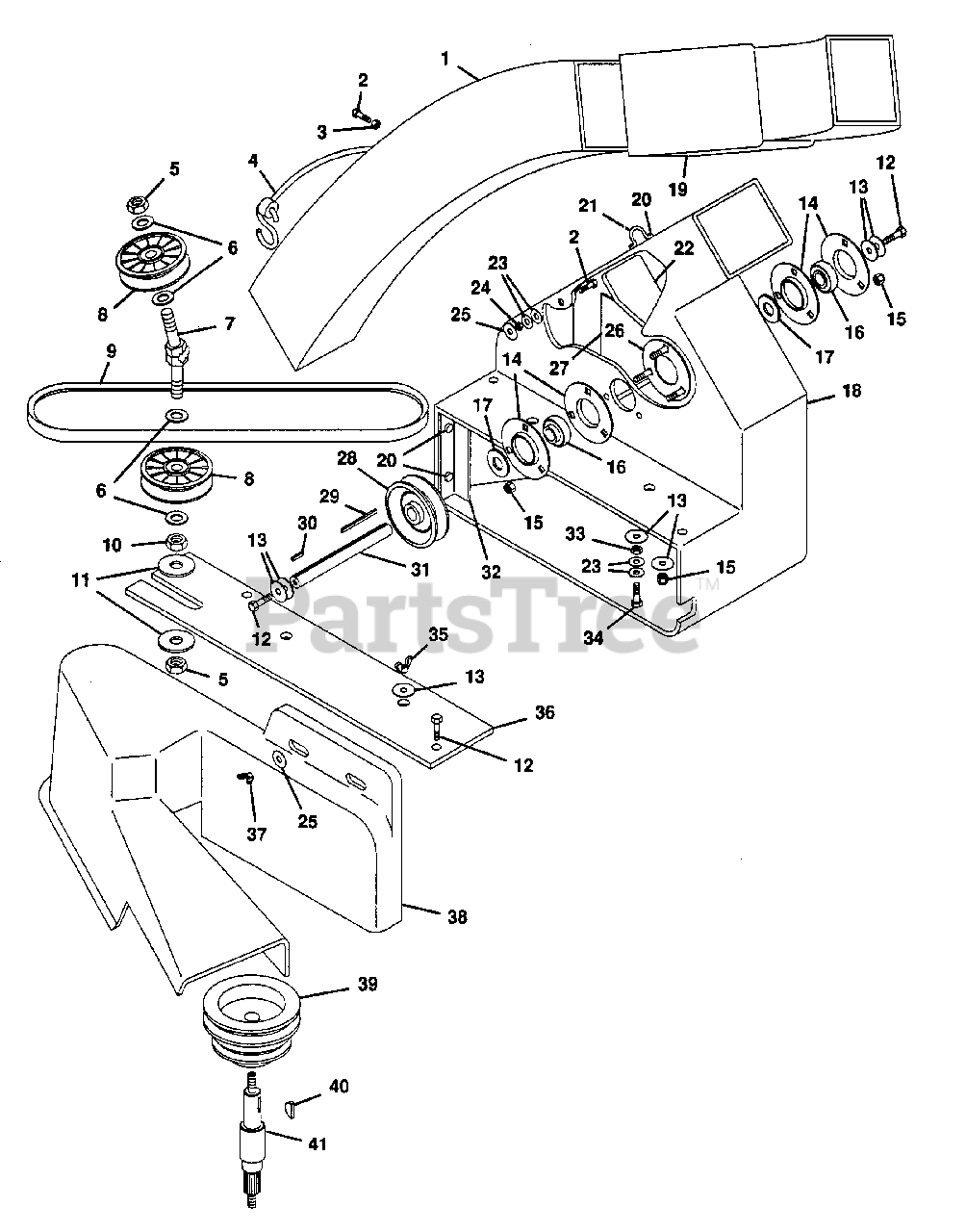

834028 - Gravely Grass Bagger for GEM Tractor (SN: 000101 & Above) BLOWER DRIVE ASSEMBLY Parts Diagram

Grass Bagger for GEM Tractor

BLOWER DRIVE ASSEMBLY Parts Diagram

  • Title

1

Gravely 050594

Tube, Grass Catcher
(Superseded to 03343500)

$

$

Not available

2

Gravely 180022

Bolt, Hex 1/4-20x1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

3

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

4

Gravely 051077

Assembly, Cord
(Superseded to 20992600)

$

$

Not available

5

Gravely 124589

Nut, Hex 5/8-11
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 018000

Bearing, Thrust Race
(Superseded to 06426200)

$

$

Not available

7

Gravely 051072

Shaft, Double Idler

$

$

Not available

8

Gravely 051071

Idler, 4" with 5/8 Bore
(Superseded to 20992100)

$

$

Not available

9

Gravely 051081

Belt, AX-66
(Superseded to 20993000)

$

$

Not available

10

Gravely 124847

Nut, Jam 5/8-11 Hex
(Superseded to 06539300)

$

$

Not available

11

Gravely 130999

Washer, Flat .688x1.75x.134

$

$

Not available

12

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

13

Gravely 051563

Washer, Flat .344x1.25x.048

$

$

Not available

14

Gravely 051066

Flangette, Bearing
(Superseded to 20991700)

$

$

Not available

15

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 051068

Bearing, 3/4 Shaft
(Superseded to 20991800)

$

$

Not available

17

Gravely 131017

Washer, Flat .812x1.469x.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 15

0

18

Gravely 051064

Shell, Blower
(Superseded to 20991500)

$

$

Not available

19

Gravely 051075

Chute, Short Curved
(Superseded to 20992400)

$

$

Not available

20

Gravely 026541

Rivet, Dome Head
(Superseded to 06807600)

$

$

Not available

21

Gravely 051083

Hook, Chute

$

$

Not available

22

Gravely 051070

Fan(Impeller)
(Superseded to 20992000)

Note: (Impeller)

$

$

Not available

23

Gravely 120386

Washer, Flat .312x.734x.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

24

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

25

Gravely 446470

Washer, Flat .375x1.125x.065
(Superseded to 06401139)

$2.49

$

In Stock, Qty 5

0

26

Gravely 051167

Weldment, Flangette

$

$

Not available

27

Gravely 051168

Weldment, Wall Support Plate
(Superseded to 21296200)

$

$

Not available

28

Gravely 051069

Sheave, Fan(4" Driven)

Note: (4" Driven)

$

$

Not available

29

Gravely 051169

Key, Square .188x2.50

$

$

Not available

30

Gravely 051170

Key, Square .188x.50

$

$

Not available

31

Gravely 051067

Shaft, 3/4 Fan
(Superseded to 21295100)

$

$

Not available

32

Gravely 051567

Filler, Angle

$

$

Not available

33

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

34

Gravely 180081

Bolt, Hex 5/16-18x1.25
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

35

Gravely 148313

Nut, Wing 5/16-18
(Superseded to 06503800)

$2.49

$

Usually ships in 4-12 days

0

36

Gravely 051073

Plate, Blower Mounting
(Superseded to 21295200)

$

$

Not available

37

Gravely 126177

Nut, Wing 1/4-20
(Superseded to 21051800)

$

$

Not available

38

Gravely 051074

Guard, Belt(Large)
(Superseded to 20992300)

Note: (Large)

$

$

Not available

39

Gravely 051947

Pulley, Drive 50"
(Superseded to 03346200)

$

$

Not available

40

Gravely 124553

Key, Woodruff .250x1.00 Hrd #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 20+

0

41

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

Usually ships in 4-12 days

0

NS

Gravely 051078

Decal, Danger(HANDS)

Note: (HANDS)

$

$

Not available

NS

Gravely 051079

Decal, Danger(SHIELD)

Note: (SHIELD)

$

$

Not available

NS

Gravely 051080

Decal, Danger

$

$

Not available
