834028 - Gravely Grass Bagger for GEM Tractor (SN: 000101 & Above) BLOWER DRIVE ASSEMBLY Parts Diagram

Grass Bagger for GEM Tractor

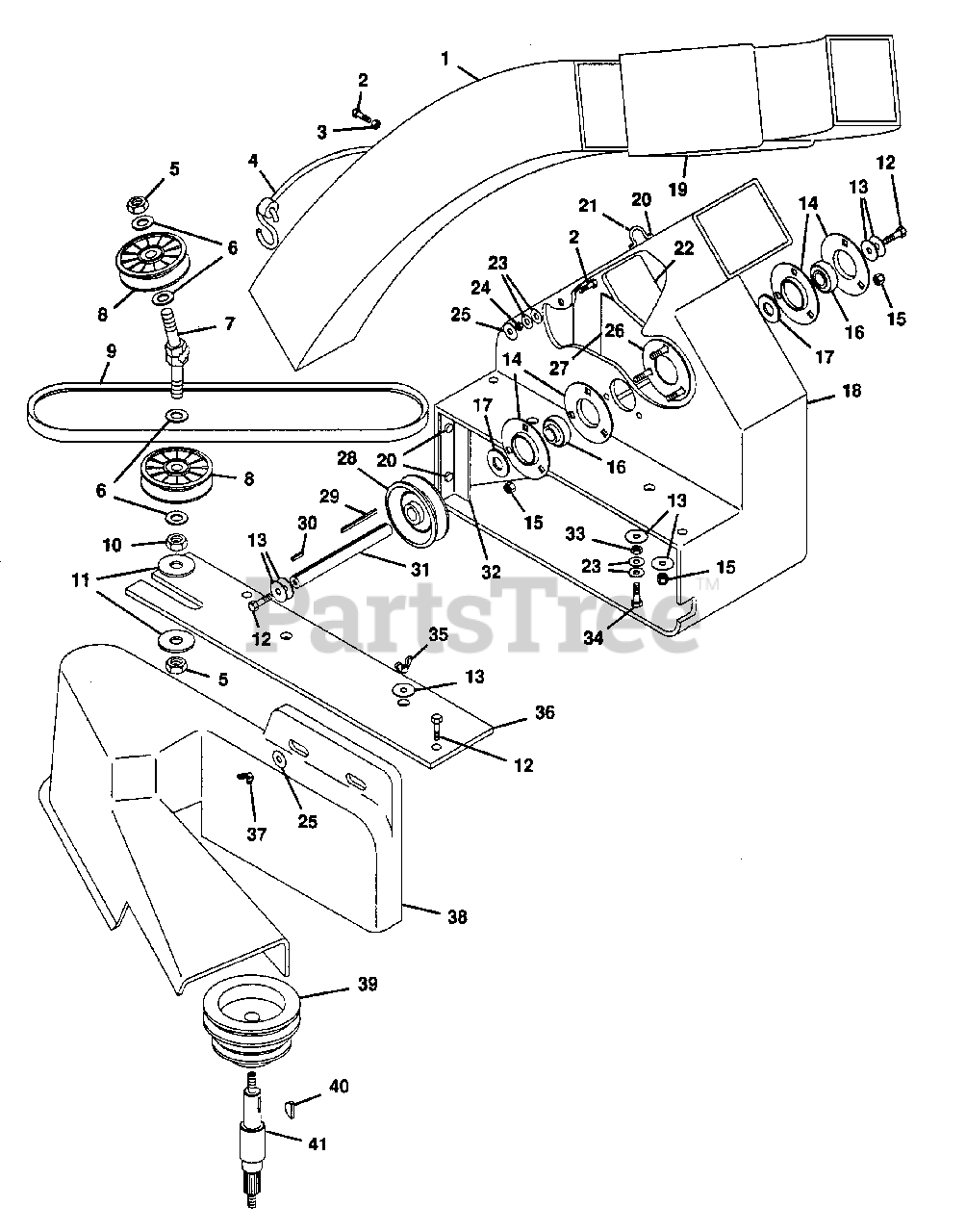

BLOWER DRIVE ASSEMBLY Parts Diagram

  • Title

1

Gravely 050594

TUBE,GRASS CTCHR GEM
(Superseded to 03343500)

$

$

Not available

2

Gravely 180022

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

3

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

4

Gravely 051077

ASM,CORD
(Superseded to 20992600)

$

$

Not available

5

Gravely 124589

NUT-HEX .62-11 YWZC
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

6

Gravely 018000

WSHR-THRST .627X1.115X.093
(Superseded to 06426200)

$

$

Not available

7

Gravely 051072

SHFT,DOUBLE IDLER

$

$

Not available

8

Gravely 051071

IDLER,4" W/5/8 BORE
(Superseded to 20992100)

$

$

Not available

9

Gravely 051081

BELT,AX-66
(Superseded to 20993000)

$

$

Not available

10

Gravely 124847

NUT-JAM .625-11 YWZC
(Superseded to 06539300)

$

$

Not available

11

Gravely 130999

WSHR,FL .688X1.75X.134

$

$

Not available

12

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 051563

WSHR,FL .344X1.25X.048

$

$

Not available

14

Gravely 051066

FLANGETTE,BEARING
(Superseded to 20991700)

$

$

Not available

15

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

16

Gravely 051068

BRG,3/4 SHAFT
(Superseded to 20991800)

$

$

Not available

17

Gravely 131017

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06426000)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 051064

SHELL,BLOWER
(Superseded to 20991500)

$

$

Not available

19

Gravely 051075

CHUTE,SHORT CURVED
(Superseded to 20992400)

$

$

Not available

20

Gravely 026541

RVT-POP .187X.375
(Superseded to 06807600)

$

$

Not available

21

Gravely 051083

HOOK,CHUTE

$

$

Not available

22

Gravely 051070

FAN (IMPELLER)
(Superseded to 20992000)

Note: (Impeller)

$

$

Not available

23

Gravely 120386

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

25

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

26

Gravely 051167

WLDMT,FLANGETTE

$

$

Not available

27

Gravely 051168

WLDMT,WALL SPRT PLATE
(Superseded to 21296200)

$

$

Not available

28

Gravely 051069

SHEAVE,FAN (4" DRIVE)

Note: (4" Driven)

$

$

Not available

29

Gravely 051169

KEY,SQUARE .188X2.50

$

$

Not available

30

Gravely 051170

KEY,SQUARE .188X.50

$

$

Not available

31

Gravely 051067

SHFT,3/4 FAN
(Superseded to 21295100)

$

$

Not available

32

Gravely 051567

FILLER,ANGLE

$

$

Not available

33

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

34

Gravely 180081

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

35

Gravely 148313

NUT-WING .312-18 YWZC
(Superseded to 06503800)

$2.99

$

Usually ships in 4-12 days

0

36

Gravely 051073

PLT,BLOWER MOUNTING
(Superseded to 21295200)

$

$

Not available

37

Gravely 126177

NUT,WING 1/4-20
(Superseded to 21051800)

$

$

Not available

38

Gravely 051074

GRD,BELT (LARGE)
(Superseded to 20992300)

Note: (Large)

$

$

Not available

39

Gravely 051947

PULLEY,DRIVE 50"
(Superseded to 03346200)

$

$

Not available

40

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 14

0

41

Gravely 034603

SPINDLE SHAFT SERVICE KIT
(Superseded to 58802900)

$128.99

$

In Stock, Qty 10

0

NS

Gravely 051078

DECAL,DANGER (HANDS)

Note: (HANDS)

$

$

Not available

NS

Gravely 051079

DECAL,DANGER (SHIELD)

Note: (SHIELD)

$

$

Not available

NS

Gravely 051080

DECAL,DANGER

$

$

Not available
