834032 - Gravely Grass Bagger for GEM Tractor (SN: 000101 & Above) BLOWER DRIVE ASSEMBLY Parts Diagram

Grass Bagger for GEM Tractor

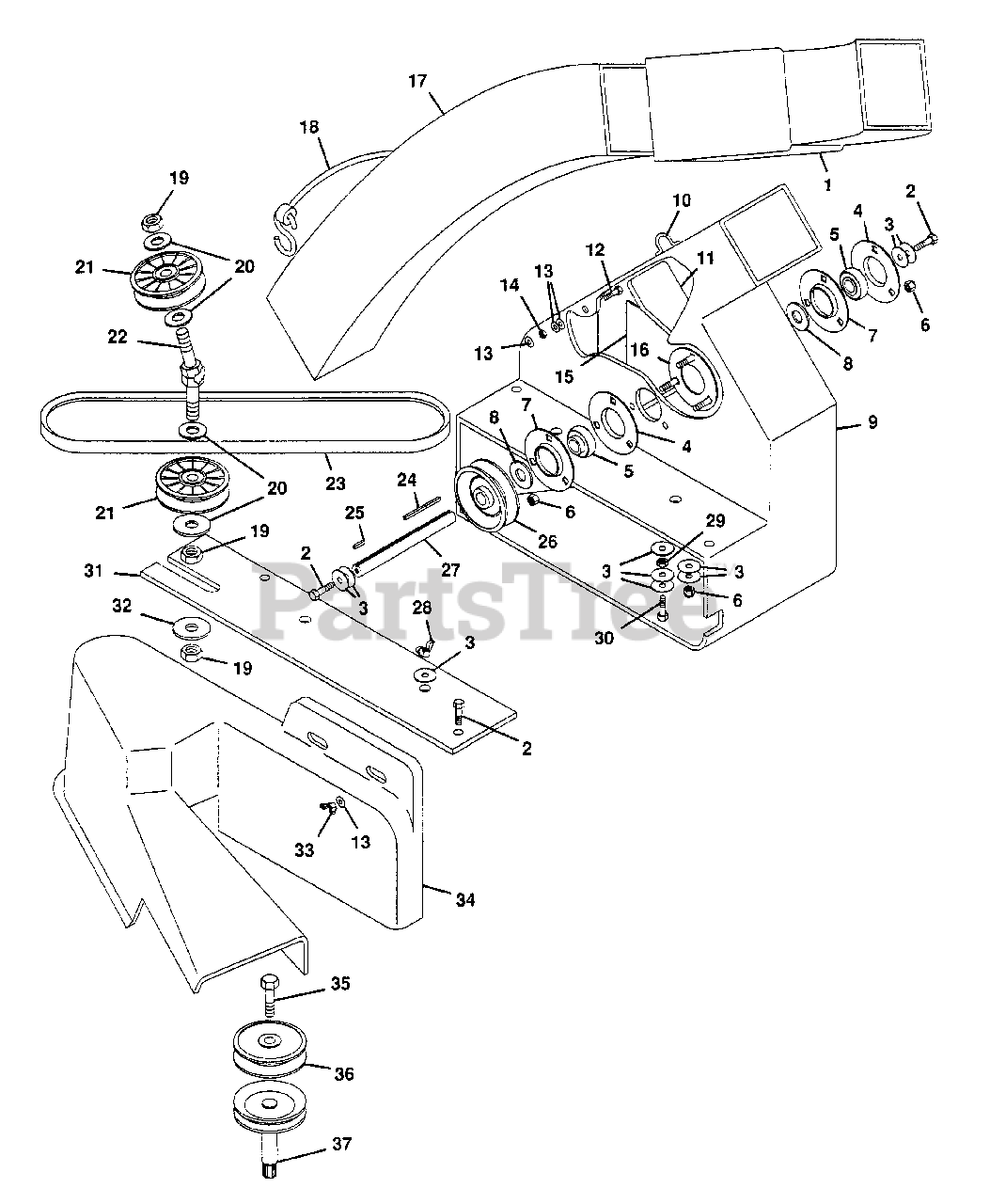

BLOWER DRIVE ASSEMBLY Parts Diagram

  • Title

1

Gravely 051075

CHUTE,SHORT CURVED
(Superseded to 20992400)

$

$

Not available

2

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 120386

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 051066

FLANGETTE,BEARING
(Superseded to 20991700)

$

$

Not available

5

Gravely 051068

BRG,3/4 SHAFT
(Superseded to 20991800)

$

$

Not available

6

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

7

Gravely 051065

FLANGETTE,OUTER

$

$

Not available

8

Gravely 051082

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 051064

SHELL,BLOWER
(Superseded to 20991500)

$

$

Not available

10

Gravely 051083

HOOK,CHUTE

$

$

Not available

11

Gravely 051070

FAN (IMPELLER)
(Superseded to 20992000)

Note: (Impeller)

$

$

Not available

12

Gravely 180022

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

13

Gravely 012694

WSHR-FL-STL .281X1.250X.048PL
(Superseded to 06403700)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

15

Gravely 051168

WLDMT,WALL SPRT PLATE
(Superseded to 21296200)

$

$

Not available

16

Gravely 051167

WLDMT,FLANGETTE

$

$

Not available

17

Gravely 050594

TUBE,GRASS CTCHR GEM
(Superseded to 03343500)

$

$

Not available

18

Gravely 051077

ASM,CORD
(Superseded to 20992600)

$

$

Not available

19

Gravely 124589

NUT-HEX .62-11 YWZC
(Superseded to 06535600)

$2.99

$

In Stock, only 3 left!

0

20

Gravely 051084

SPACER, 5/8

$

$

Not available

21

Gravely 051071

IDLER,4" W/5/8 BORE
(Superseded to 20992100)

$

$

Not available

22

Gravely 051072

SHFT,DOUBLE IDLER

$

$

Not available

23

Gravely 051081

BELT,AX-66
(Superseded to 20993000)

$

$

Not available

24

Gravely 051169

KEY,SQUARE .188X2.50

$

$

Not available

25

Gravely 051170

KEY,SQUARE .188X.50

$

$

Not available

26

Gravely 051069

SHEAVE,FAN (4" DRIVE)

Note: (4" Driven)

$

$

Not available

27

Gravely 051067

SHFT,3/4 FAN
(Superseded to 21295100)

$

$

Not available

28

Gravely 148313

NUT-WING .312-18 YWZC
(Superseded to 06503800)

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 180081

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 12

0

31

Gravely 051073

PLT,BLOWER MOUNTING
(Superseded to 21295200)

$

$

Not available

32

Gravely 421879

WSHR-FL-STL .656X1.250X.10 YZC
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 126177

NUT,WING 1/4-20
(Superseded to 21051800)

$

$

Not available

34

Gravely 051074

GRD,BELT (LARGE)
(Superseded to 20992300)

Note: (Large)

$

$

Not available

35

Gravely 051171

BLT,HEX 1/2-13X2.00 LH
(Superseded to 20994000)

$

$

Not available

36

Gravely 051063

PULLEY,DRIVE
(Superseded to 20991400)

$

$

Not available

37

Gravely 050576

WLDMT,SPINDLE SHAFT
(Superseded to 03343300)

$

$

Not available

NS

Gravely 051078

DECAL,DANGER (HANDS)

Note: (HANDS)

$

$

Not available

NS

Gravely 051079

DECAL,DANGER (SHIELD)

Note: (SHIELD)

$

$

Not available

NS

Gravely 051080

DECAL,DANGER

$

$

Not available
