834034 - Ariens 42" Front Blade (SN: 000101 & Above) Carriage & Frame Parts Diagram

42" Front Blade

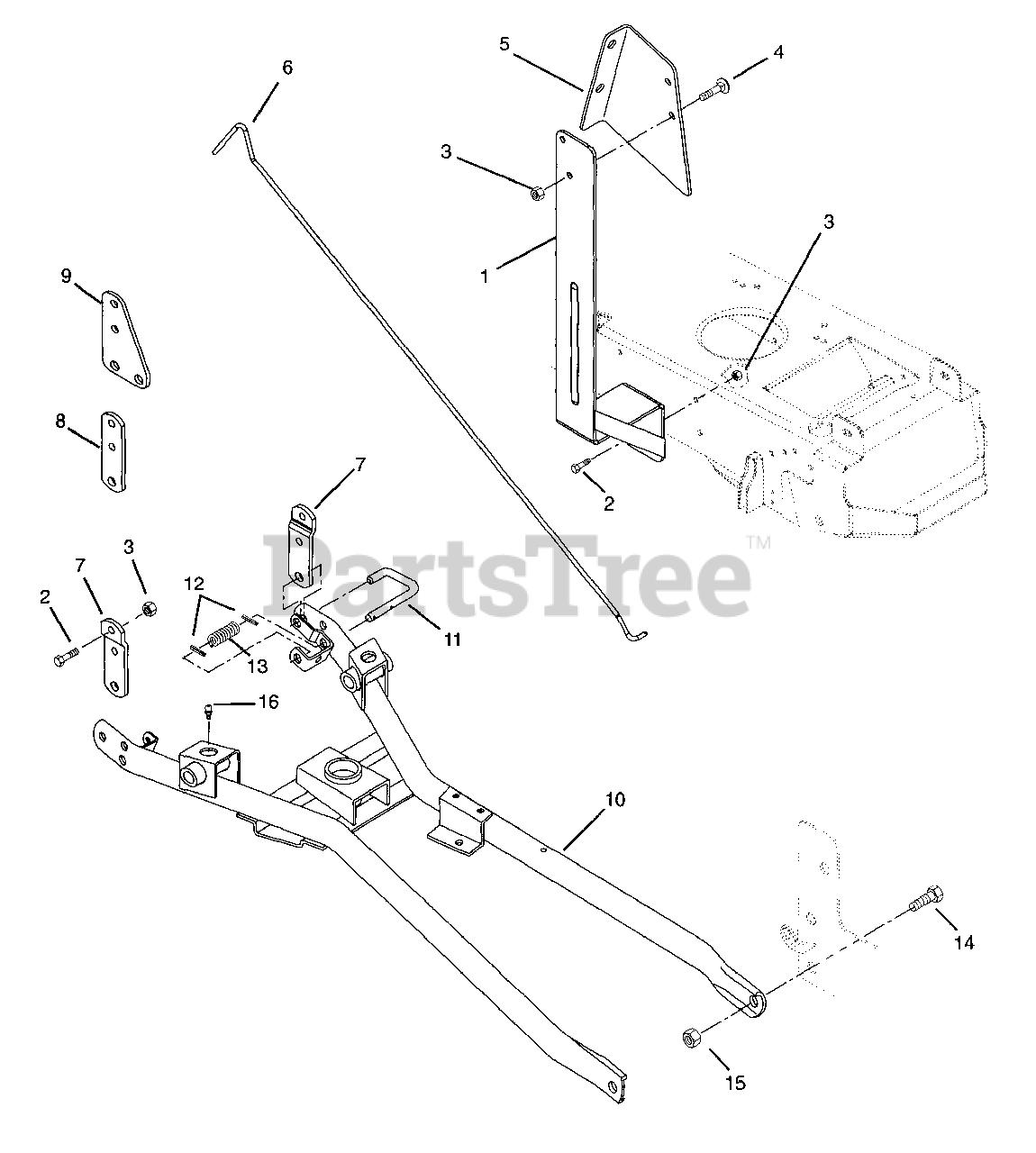

Carriage & Frame Parts Diagram

  • Title

1

Ariens 03339600

SUPPORT - CONTROL BRACKET
(Superseded to 03339643)

$

$

Not available

2

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

2

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (High Sierra only)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

5

Ariens 03630400

CONTROL BRACKET
(Superseded to 03630443)

$6.99

$

Usually ships in 4-12 days

0

6

Ariens 03360400

ROD - CONTROL

$64.99

$

Usually ships in 4-12 days

0

7

Ariens 03343800

HANGER BRACKET- OFFSET
(Superseded to 03689151)

Note: (High Sierra only)

$

$

Not available

8

Ariens 03588700

HANGER BRACKET
(Superseded to 03588751)

Note: (Sierra only)

$30.99

$

Usually ships in 4-12 days

0

9

Ariens 03665200

HANGER BRACKET

Note: (YT only)

$

$

Not available

10

Ariens 03360200

CARRIAGE FRAME WITHOUT SPINDLE

$517.99

$

Usually ships in 4-12 days

0

11

Ariens 03584700

LATCH PIN

$

$

Not available

12

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 9

0

13

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

14

Ariens 05968700

@BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 06535300

@NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

16

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available
