834034 - Gravely 42" Front Blade SierraTractor (SN: 000101 & Above) CARRIAGE & FRAME Parts Diagram

42" Front Blade SierraTractor

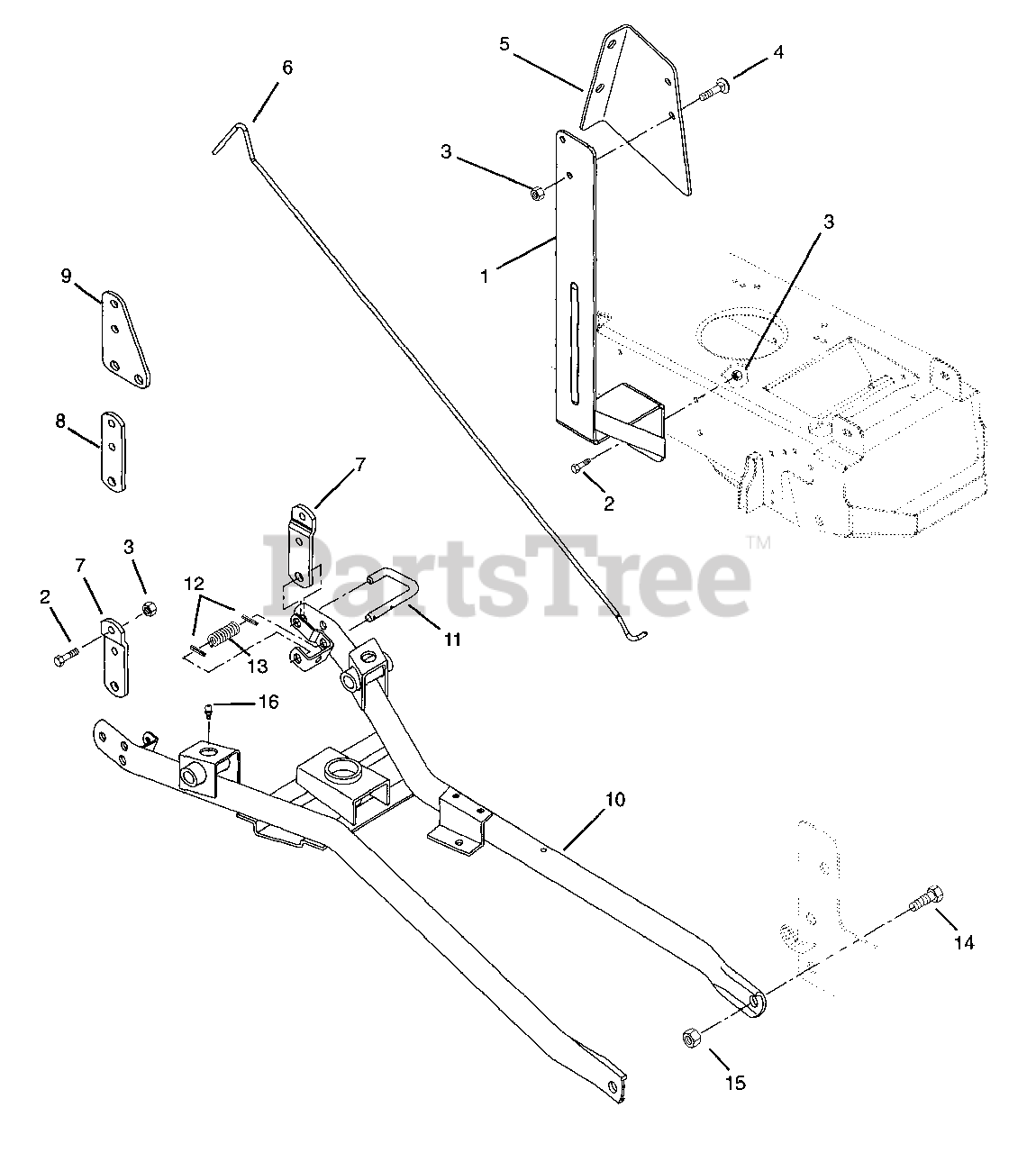

CARRIAGE & FRAME Parts Diagram

  • Title

1

Gravely 03339600

Support-Control Bracket
(Superseded to 03339643)

$

$

Not available

2

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

2

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

Note: (High Sierra only)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06529600

Nut-Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06211800

Bolt-Round Head Square Neck .38-16 x .75
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 03630400

Control Bracket
(Superseded to 03630443)

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 03360400

Rod-Control

$64.99

$

Usually ships in 4-12 days

0

7

Gravely 03343800

Bracket-Hanger
(Superseded to 03689151)

Note: (High Sierra only)

$

$

Not available

8

Gravely 03588700

Hanger Bracket
(Superseded to 03588751)

Note: (Sierra only)

$30.99

$

Usually ships in 4-12 days

0

9

Gravely 03665200

Hanger Bracket

Note: (YT only)

$

$

Not available

10

Gravely 03360200

Carriage Frame

$517.99

$

Usually ships in 4-12 days

0

11

Gravely 03584700

Latch Pin

$

$

Not available

12

Gravely 05803400

Pin-Roll .125 x .75

$0.99

$

In Stock, Qty 9

0

13

Gravely 08325900

Spring-Compression .058 x .65 x 2.13

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 05968700

Bolt-Hex .62-11 x 1.50 Grade 5

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

In Stock, only 1 left!

0

16

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available
