834034 - Gravely 42" Front Blade SierraTractor (SN: 000101 & Above) LINKAGE Parts Diagram

42" Front Blade SierraTractor

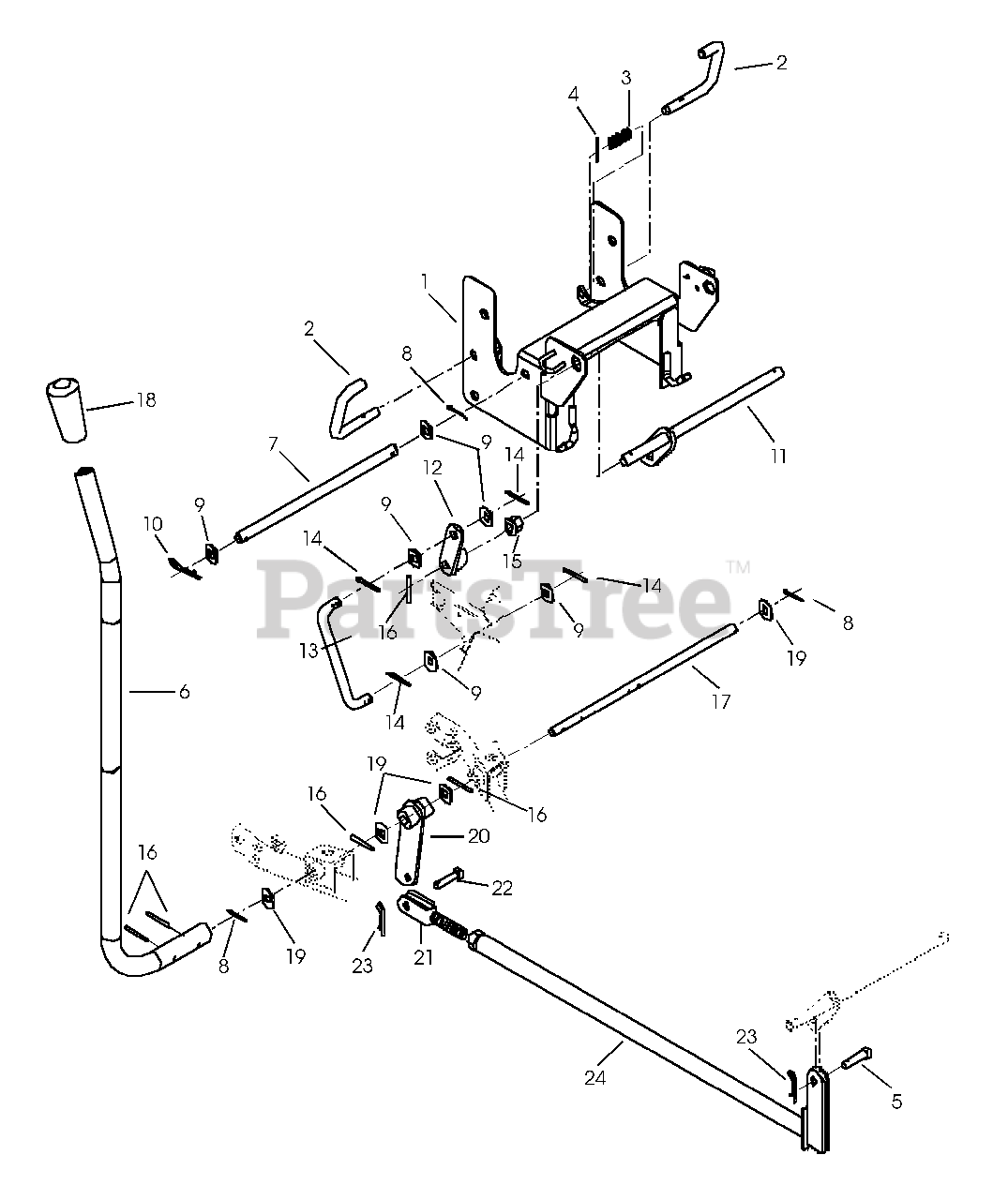

LINKAGE Parts Diagram

  • Title

1

Gravely 03360000

Frame-Pivot
(Superseded to 03360043)

$323.99

$

Usually ships in 4-12 days

0

2

Gravely 03359900

Pin-Latch

$13.99

$

Usually ships in 4-12 days

0

3

Gravely 08326000

Spring-Compression .072 x .77 x 1.75

$

$

Not available

4

Gravely 05801600

Pin-Roll .188 x 1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 04136800

Clevis Pin .500 Diameter x 1.000
(Superseded to 06821500)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 03339200

Lever
(Superseded to 03339243)

$284.99

$

Usually ships in 4-12 days

0

7

Gravely 03632300

Rod-Pivot

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 06712600

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 10

0

9

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 18

0

10

Gravely 06713300

Pin-Hair Internal .17 x .68 x 3.50
(Superseded to 06700228)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 03630800

Pivot Rod

$

$

Not available

12

Gravely 03629800

Lever-Right Hand
(Superseded to 03629843)

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 03630600

Link

Note: (Sierra Only)

$8.99

$

Usually ships in 4-12 days

0

14

Gravely 06707100

Pin-Cotter .12 x 1.0

$0.99

$

In Stock, Qty 12

0

15

Gravely 05521600

Bushing-Flange .750 x .873 Hex x .53 x 1.18

$9.49

$

In Stock, Qty 20+

0

16

Gravely 05807100

Pin-Grove .250 x 1.50

$

$

Not available

17

Gravely 03630100

Pivot Rod

$

$

Not available

18

Gravely 07526200

Grip-Handle Bar

$9.99

$

Usually ships in 4-12 days

0

19

Gravely 06441400

Washer-Flat-Steel .754 x 1.125 x .062
(Superseded to 06401119)

$0.99

$

In Stock, Qty 6

0

20

Gravely 03629700

Lever

$

$

Not available

21

Gravely 03339300

Clevis-Right Hand

$39.99

$

Usually ships in 4-12 days

0

22

Gravely 03138100

Clevis Pin .491/.496 x 1.25
(Superseded to 06821600)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 06702200

Pin-Hair Internal .14 x .43 x 2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0

24

Gravely 03630700

Lift Tube
(Superseded to 03630743)

$205.99

$

Usually ships in 4-12 days

0
