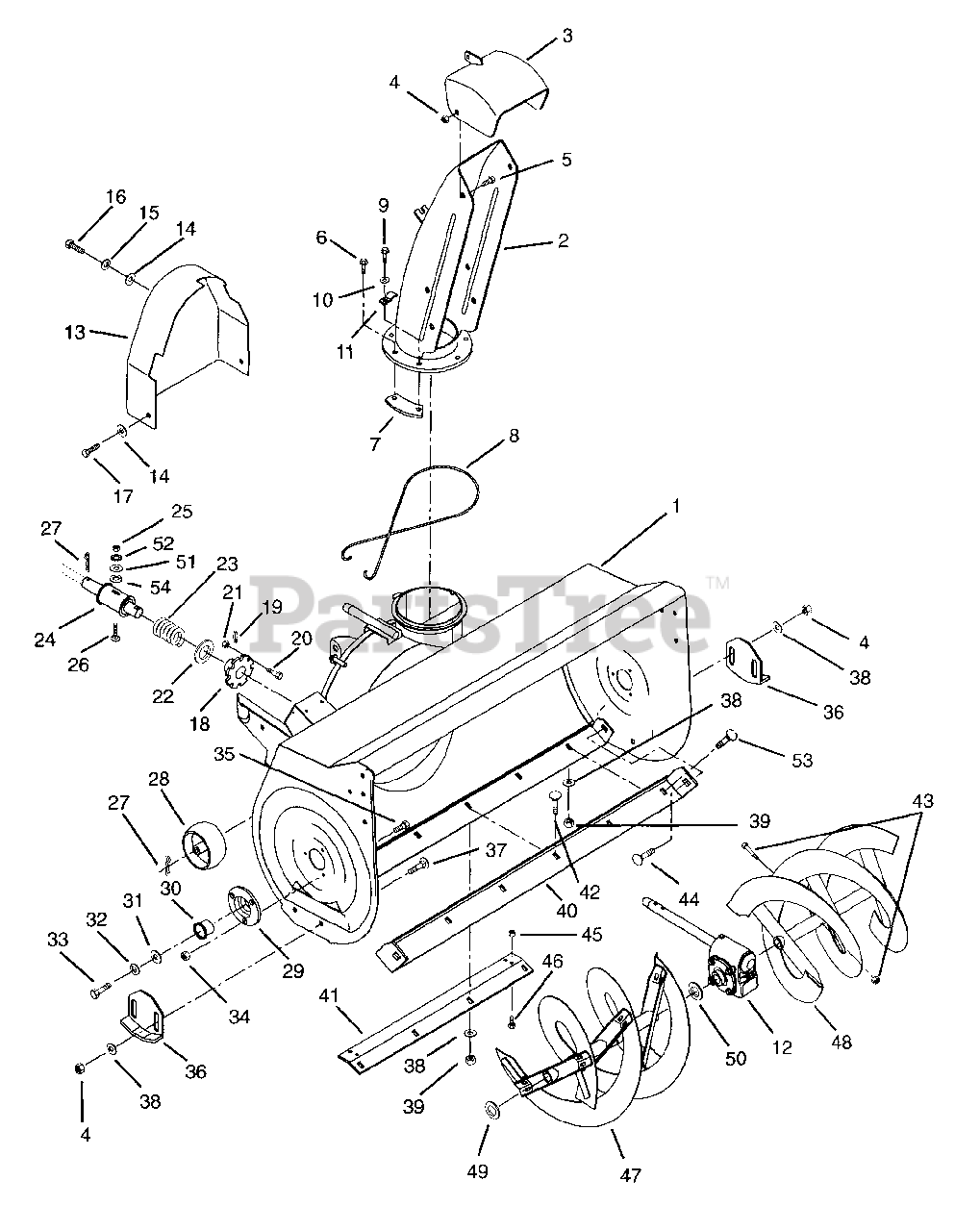

834035 - Ariens 40" Sno-Thro Attachment (SN: 000120 & Above) Housing & Auger Parts Diagram

40" Sno-Thro Attachment

Housing & Auger Parts Diagram

  • Title

1

Ariens 53407500

40" SNO-THRO HOUSING W/DECALS

Note: (Used Only On Model 834035)

$

$

Not available

1

Ariens 53607500

36" SNO-THRO HOUSING W/DECALS

Note: (Used Only On Model 836011)

$

$

Not available

2

Ariens 03028351

DISCHARGE CHUTE

$79.99

$

Usually ships in 4-12 days

0

3

Ariens 53606800

DEFLECTOR W/DECAL

$

$

Not available

4

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 11

0

6

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 5

0

7

Ariens 02463500

CHUTE CLAMP

$17.99

$

Usually ships in 4-12 days

0

8

Ariens 03625700

CABLE

$207.99

$

Usually ships in 4-12 days

0

9

Ariens 07414600

@SCR-TAP 12-24X.75 HWH YWZC

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 06409200

WSHR-FL-STL .188X.438X.049 PL

$

$

Not available

11

Ariens 06900300

CABLE CLAMP

$

$

Not available

12

Ariens 53502200

GEAR CASE - 40" - CAST IRON

$

$

Not available

13

Ariens 03625600

BELT GUARD

$47.99

$

Usually ships in 4-12 days

0

14

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

18

Ariens 03028700

DISC ASSEMBLY

$54.99

$

Usually ships in 4-12 days

0

19

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.99

$

In Stock, only 2 left!

0

20

Ariens 05915600

SCR-SKH 10-24X.38

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, only 3 left!

0

22

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

23

Ariens 08316900

SG-COMP .054X.75X1.6

$

$

Not available

24

Ariens 03028651

SPOOL
(Superseded to 03028643)

$34.99

$

Usually ships in 4-12 days

0

25

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

26

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 7

0

27

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

28

Ariens 02745400

ROLLER

$16.99

$

In Stock, Qty 20+

0

29

Ariens 02437400

BEARING SUPPORT
(Superseded to 05063300)

$30.99

$

In Stock, only 3 left!

0

30

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$13.99

$

In Stock, only 2 left!

0

31

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

32

Ariens 06306600

WSHR-LK .500X.151 HVY YWZC
(Superseded to 06300117)

$2.99

$

Usually ships in 4-12 days

0

33

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, Qty 7

0

34

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 07028600

BLT-SERNK SL .25-20X.50 YWZC

$3.99

$

In Stock, Qty 6

0

36

Ariens 03075500

RUNNER-SKID SHOE
(Superseded to 03075559)

$39.99

$

In Stock, only 2 left!

0

37

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

38

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

40

Ariens 03436351

SCRAPPER BLADE - 40"

Note: (Used Only On Model 834035)

$

$

Not available

40

Ariens 03519251

SCRAPPER BLADE - 36"
(Superseded to 03519243)

Note: (Used Only On Model 836011)

$

$

Not available

41

Ariens 03438151

BLADE BRACE - 40"
(Superseded to 03438143)

Note: (Used Only On Model 834035)

$

$

Not available

41

Ariens 03519351

BLADE BRACE - 36"
(Superseded to 03519343)

Note: (Used Only On Model 836011)

$

$

Not available

42

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

43

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

$5.99

$

In Stock, Qty 20+

0

44

Ariens 06215500

@BLT-RDHDSQNK .38-16X1.00 G2YZ
(Superseded to 06223600)

$2.99

$

In Stock, only 1 left!

0

45

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 11

0

47

Ariens 53406200

R. H. RAKE W/ZERKS - 40"

Note: (Used Only On Model 834035)

$

$

Not available

47

Ariens 53503400

RAKE, RIGHT-36"(1ID X 15.75OD)
(Superseded to 52412600)

Note: (Used Only On Model 836011)

$

$

Not available

48

Ariens 53406300

L. H. RAKE W/ZERKS

Note: (Used Only On Model 834035)

$

$

Not available

48

Ariens 53503500

RAKE, LEFT-36"(1"ID X 15.75OD)
(Superseded to 52412500)

Note: (Used Only On Model 836011)

$

$

Not available

49

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

50

Ariens 05607000

SEAL 1.625X2.125X.250

$10.99

$

In Stock, Qty 19

0

51

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

52

Ariens 06306800

@WSHR-LK-EXT.262X.502X.026YWZC
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

53

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

54

Ariens 06310600

WSHR-LK PYM .31X.062YWZC

$6.49

$

In Stock, only 2 left!

0
