834035 - Gravely 40" Sno-Thro for GEM Tractor (SN: 000101 & Above) Carriage & Frame Parts Diagram

40" Sno-Thro for GEM Tractor

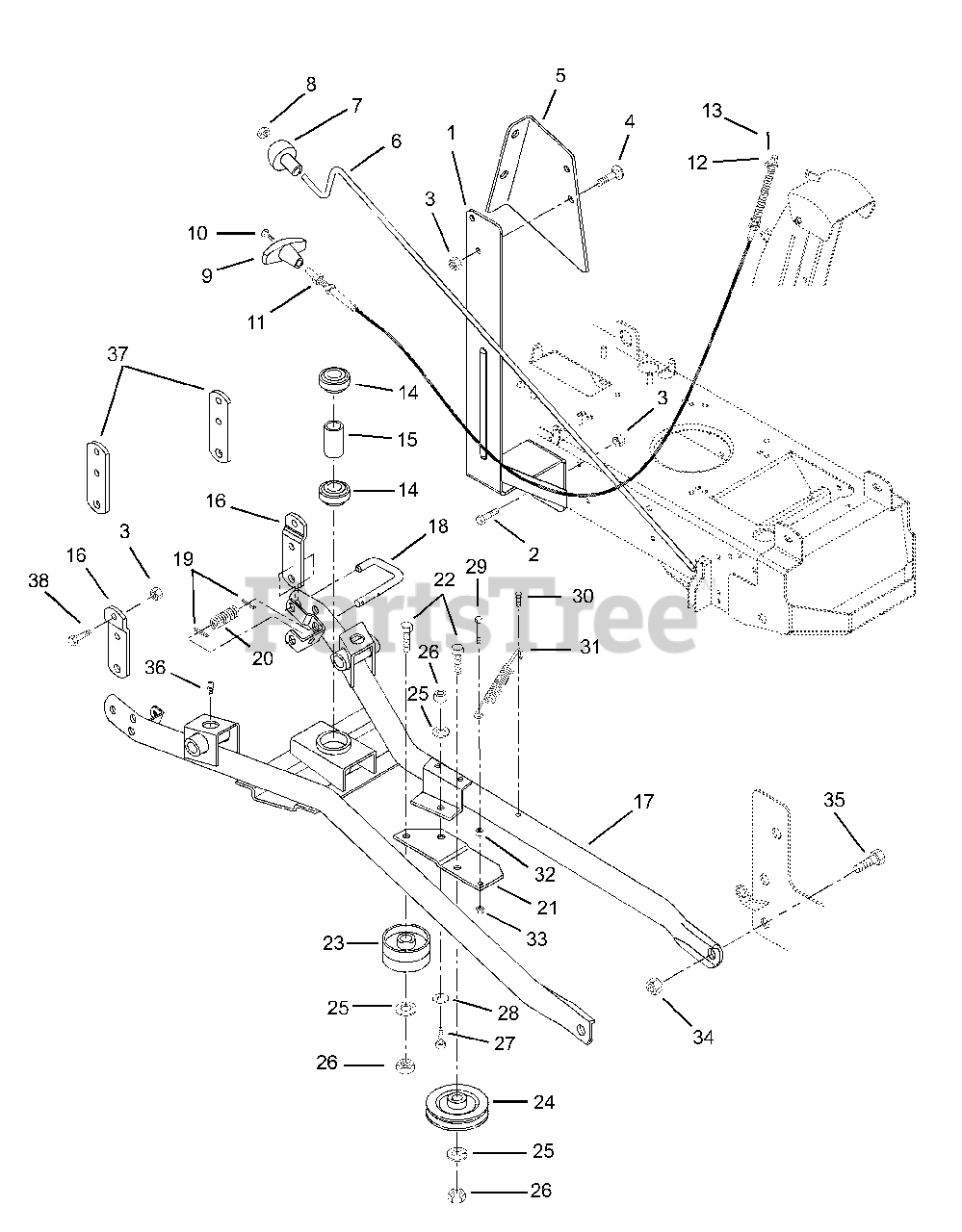

Carriage & Frame Parts Diagram

  • Title

1

Gravely 03339600

Support - Control Bracket
(Superseded to 03339643)

$

$

Not available

2

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

Note: (Model 834035)

$1.49

$

In Stock, only 2 left!

0

2

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

Note: (Model 836011)

$1.49

$

In Stock, only 2 left!

0

3

Gravely 06529600

Nut-Locking Top .375-16
(Superseded to 06500825)

Note: (Model 834035)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06529600

Nut-Locking-Top .375-16
(Superseded to 06500825)

Note: (Model 836011)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 03630400

Control Bracket
(Superseded to 03630443)

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 049105

Chute Control Crank
(Superseded to 03081900)

$154.99

$

Usually ships in 4-12 days

0

7

Gravely 049106

Knob
(Superseded to 07509600)

$

$

Not available

8

Gravely 06537200

Nut-Locking-Jam Center .38-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 049108

Knob-Black
(Superseded to 07530800)

$9.99

$

In Stock, only 1 left!

0

10

Gravely 07029300

Screw-Machine 8-32 x .75

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 06943400

Control Cable

$168.99

$

In Stock, only 1 left!

0

12

Gravely 06917500

Pivot

$37.99

$

Usually ships in 4-12 days

0

13

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 5

0

14

Gravely 035925

Bearing-Ball .750 x 1.781 x .61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 20+

0

15

Gravely 036827

Spacer
(Superseded to 03517300)

$

$

Not available

16

Gravely 03343800

Hanger Bracket-Offset
(Superseded to 03689151)

Note: (Model 834035)

$

$

Not available

17

Gravely 03339100

Carriage Frame w/Spindle & Bearings
(Superseded to 03339143)

$775.99

$

Usually ships in 4-12 days

0

18

Gravely 051642

Latch Pin
(Superseded to 03584700)

$

$

Not available

19

Gravely 05803400

Pin-Roll .125 x .75

$0.99

$

In Stock, Qty 9

0

20

Gravely 051650

Spring-Compression .047 x .28 x 5.05
(Superseded to 08325900)

$9.49

$

Usually ships in 4-12 days

0

21

Gravely 03589400

Idler Arm
(Superseded to 03589443)

$

$

Not available

22

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 2
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

23

Gravely 036247

Idler-Flat 2.25 x .38
(Superseded to 07310800)

$34.99

$

In Stock, only 3 left!

0

24

Gravely 07310900

Idler - V 3.06 x .38

$23.99

$

In Stock, only 2 left!

0

25

Gravely 06308800

Washer-Lock .375 x .115
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

26

Gravely 06529400

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

27

0411500

Shoulder Bolt

$

$

Not available

28

Gravely 06436400

Washer-Flat-Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 14

0

29

Gravely 07415200

Screw-Tapping 10-24 x 1.0

$3.49

$

Usually ships in 4-12 days

0

30

Gravely 07414400

Screw-Tapping .312-18 x .75
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

31

Gravely 036850

Spring-Tension .090 x .75 x 3.50
(Superseded to 08312200)

$34.99

$

In Stock, only 1 left!

0

32

Gravely 06536600

Nut-Hex 10-24

$0.99

$

In Stock, Qty 5

0

33

Gravely 06536000

Nut-Locking-Nylon 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

34

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

In Stock, only 1 left!

0

35

Gravely 05968700

Bolt-Hex .62-11 x 1.50 Grade 5

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

37

Gravely 03588700

Hanger Bracket
(Superseded to 03588751)

Note: (Model 836011)

$30.99

$

Usually ships in 4-12 days

0

38

Gravely 05948700

Bolt-Hex .38-16 x 1.00
(Superseded to 05901711)

Note: (Model 834035)

$1.49

$

In Stock, Qty 20+

0
