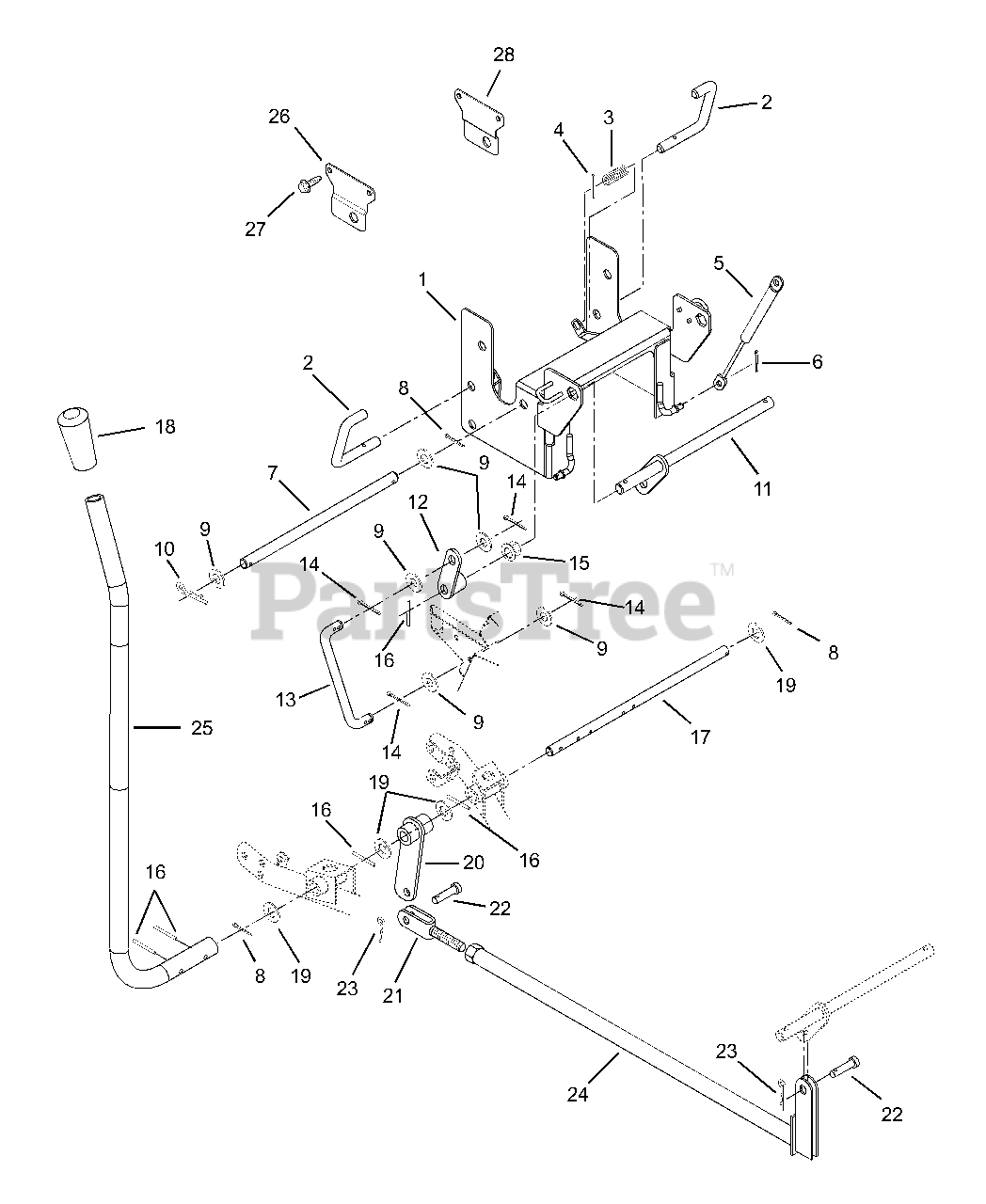

834035 - Gravely 40" Sno-Thro for GEM Tractor (SN: 000101 & Above) Linkage Parts Diagram

40" Sno-Thro for GEM Tractor

Linkage Parts Diagram

  • Title

1

Gravely 03360000

FRAME, PIVOT
(Superseded to 03360043)

$323.99

$

Usually ships in 4-12 days

0

2

Gravely 03359900

PIN, LATCH

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 051644

SG-COMP .072X.77X1.75
(Superseded to 08326000)

$

$

Not available

4

Gravely 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$3.99

$

In Stock, Qty 10

0

5

Gravely 051649

SG-GAS COMP .315X.75X10.00 120
(Superseded to 08326100)

$

$

Not available

6

Gravely 06707300

PIN-CTR .12X.75 EXTPRSQCT YWZ

$1.49

$

In Stock, Qty 6

0

7

Gravely 03632300

ROD, PIVOT

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 06712600

PIN-CTR .12X1.25 EXTPRSQCT YZ
(Superseded to 06700212)

$1.49

$

In Stock, Qty 11

0

9

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06713300

PIN-HAIR-INT .17X.68X3.50 YWZC
(Superseded to 06700228)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 03630800

PIVOT ROD

$

$

Not available

12

Gravely 03629800

ARM, LIFT
(Superseded to 03629843)

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 03630600

LINK, LIFT

$

$

Not available

14

Gravely 06707100

PIN-CTR .12X1.00 EXTPRSQCT YZ

$1.49

$

In Stock, Qty 10

0

15

Gravely 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$11.99

$

In Stock, Qty 10

0

16

Gravely 05807100

PIN-GRV .250X1.50 TP A

$

$

Not available

17

Gravely 03630100

PIVOT ROD

$

$

Not available

18

Gravely 041563

GRIP,HANDLE BAR
(Superseded to 07526200)

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$2.49

$

In Stock, Qty 14

0

20

Gravely 03629700

LEVER, ACTUATOR

$

$

Not available

21

Gravely 03339300

CLEVIS R.H.

$39.99

$

Usually ships in 4-12 days

0

22

Gravely 036568

PIN,CLEV .50X1.25X1.02 YWZC
(Superseded to 06821600)

$4.99

$

In Stock, only 2 left!

0

23

Gravely 06714000

PIN-HAIR-INT .15X2.937 YWZC

$3.99

$

In Stock, only 1 left!

0

24

Gravely 03630700

TUBE, LIFT
(Superseded to 03630743)

$205.99

$

Usually ships in 4-12 days

0

25

Gravely 03339200

LEVER
(Superseded to 03339243)

$284.99

$

Usually ships in 4-12 days

0

26

Gravely 03360700

MOUNT - PIVOT FRAME RH
(Superseded to 03360751)

Note: Model 834033 S/N > 00185

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: Model 834033 S/N > 00185

$2.49

$

In Stock, Qty 20+

0

28

Gravely 03360800

MOUNT - PIVOT FRAME LH
(Superseded to 03360851)

Note: Model 834033 S/N > 00185

$5.99

$

Usually ships in 4-12 days

0
