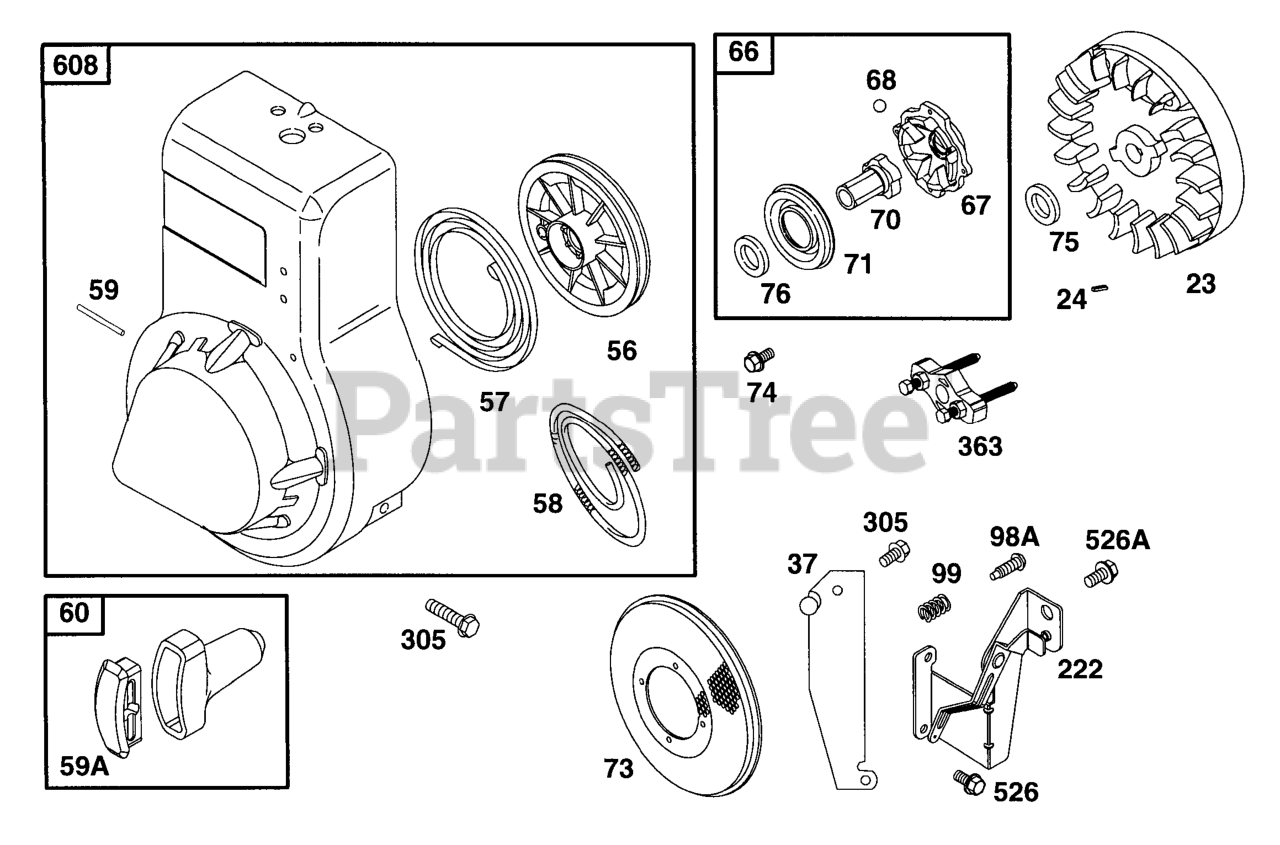

83412-0101-01 - Briggs & Stratton Horizontal Engine Blower Hsg, Rewind, Flywheel Parts Diagram

Horizontal Engine

Blower Hsg, Rewind, Flywheel Parts Diagram

  • Title

23

Briggs & Stratton 296884

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 220971

Guard-Flywheel

$11.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 280439

Pulley-Starter
(Superseded to 280439S)

$12.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$14.99

$

In Stock, Qty 9

0

58

Briggs & Stratton 280399

Rope, Starter (99" Cut To Required Length)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 18

0

58

Briggs & Stratton 66734

Rope-Starter (48-5/8")

$6.49

$

Usually ships in 2-12 days

0

59A

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

59

Briggs & Stratton 396892

Insert-Starter Rope

$5.49

$

In Stock, only 2 left!

0

60

Briggs & Stratton 393152

Insert-Starter Handle

$4.99

$

In Stock, only 3 left!

0

66

Briggs & Stratton 399671

Clutch-Starter

Note: (Uses Rubber Coated Retainer Washer-Ref. 71)

$34.99

$

In Stock, Qty 10

0

67

Briggs & Stratton 394897

Housing-Starter Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Seal/Retainer Assy (Rubber Coated)
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221661

Screw-Rewind Starter
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

75

Briggs & Stratton 223047

Washer, Flywheel
(Superseded to 691736)

$5.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 94094

Screw, Sem Pan Hd C
(Superseded to 692200)

$

$

Not available

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 493397

Bracket-Control

$27.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

Screw, Machine Hex (1/2" Long)
(Superseded to 692198)

$5.99

$

In Stock, only 2 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel (Optional Accessory)

$23.99

$

In Stock, only 2 left!

0

526A

Briggs & Stratton 94523

Screw, Hex Flange H
(Superseded to 692336)

$7.99

$

In Stock, only 2 left!

0

526

Briggs & Stratton 93062

Screw, Hex Head Tap
(Superseded to 691637)

$3.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 493414

Starter-Rewind (12 O'clock)
(Superseded to 690102)

$96.99

$

Usually ships in 2-12 days

0
