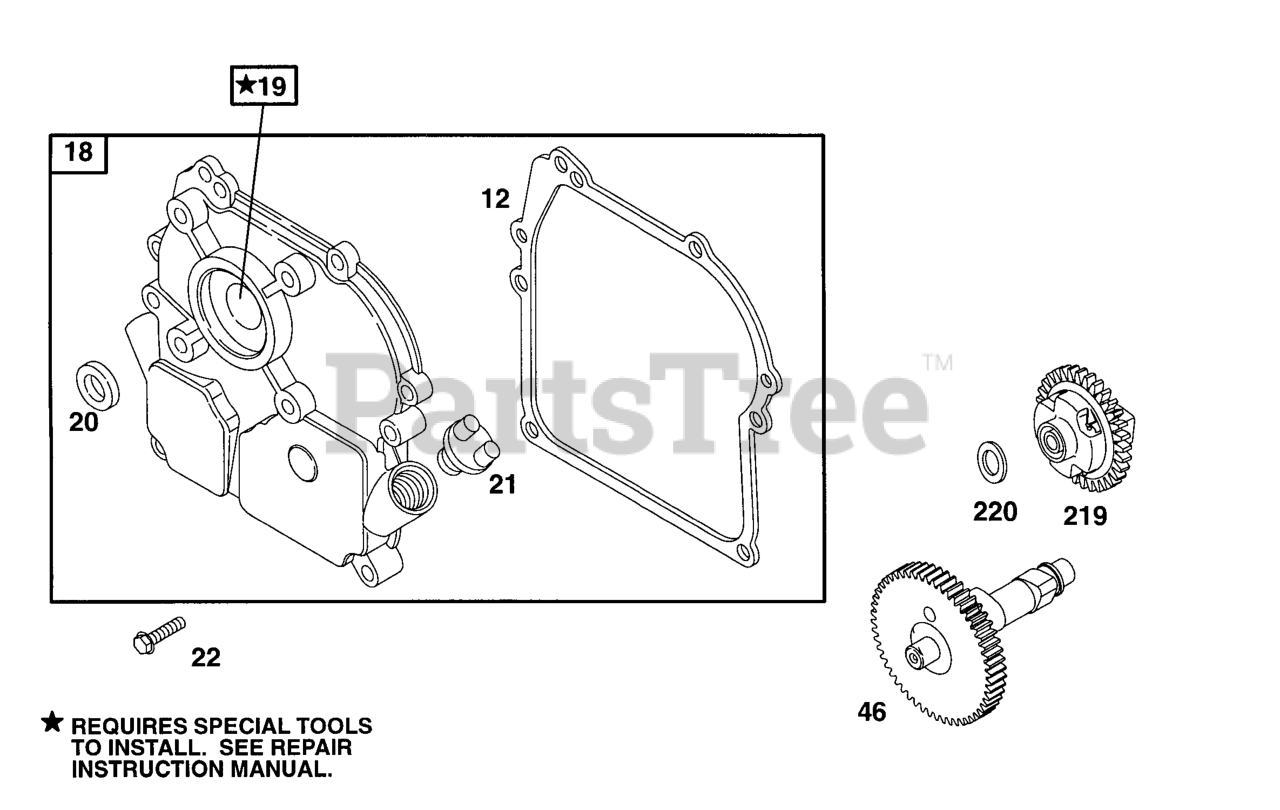

83412-0101-01 - Briggs & Stratton Horizontal Engine Crankcase Cover, Cam Parts Diagram

Horizontal Engine

Crankcase Cover, Cam Parts Diagram

  • Title

12

Briggs & Stratton 270833

Gasket, Crankcase (.015")
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 397144

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crkcse (.005")

Note: Included in Gasket Set-Part No. 397144

$9.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 270896

Gasket-Crkcse (.009")

Note: Included in Gasket Set-Part No. 397144

$5.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 496680

Cover-Crankcase

$142.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 220538

Bushing/Seal Kit
(Superseded to 796961)

$21.99

$

In Stock, Qty 6

0

20

Briggs & Stratton 392986

Seal/Spacer Assy
(Superseded to 691356)

Note: Included in Gasket Set-Part No. 397144

$31.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 92747

Screw, Sem Hex Hd M
(Superseded to 691117)

Note: (Used on Two Top Holes to Mount Cover)

$4.49

$

In Stock, only 1 left!

0

46

Briggs & Stratton 493747

Camshaft (Plastic)
(Superseded to 691998)

$61.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 391737

Gear-Governor

Note: Used Before Code Date 91061000

$38.99

$

In Stock, only 4 left!

0

219

Briggs & Stratton 494845

Gear-Governor

$

$

Not available

220

Briggs & Stratton 221551

Washer, Steel
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0
