83412-0106-01 - Briggs & Stratton Horizontal Engine Cylinder, Head Parts Diagram

Horizontal Engine

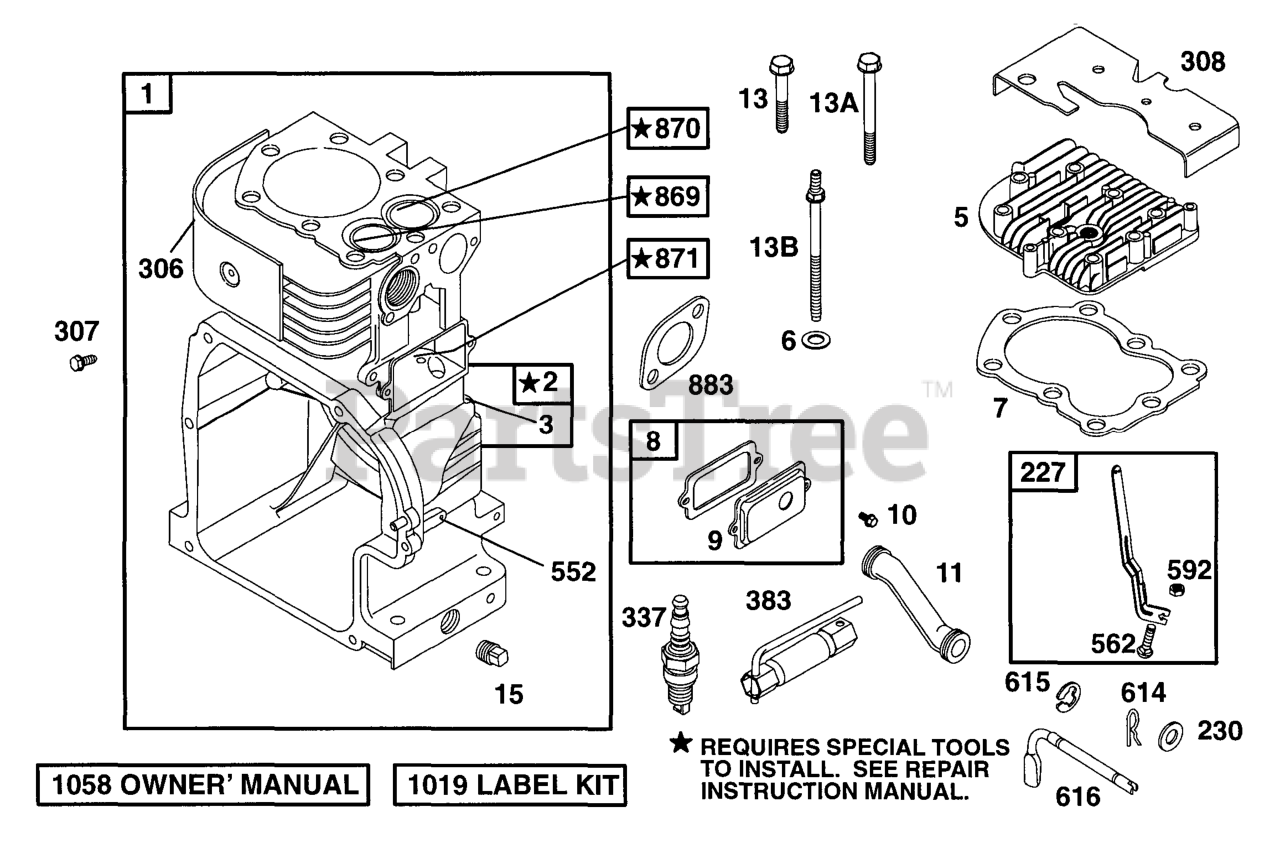

Cylinder, Head Parts Diagram

  • Title

1

Briggs & Stratton 395879

Cylinder Assembly

$199.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing/Seal Kit (Plain Bearing)
(Superseded to 796961)

$21.99

$

In Stock, Qty 6

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 397144

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 213953

Head-Cylinder

$

$

Not available

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 272167

Gasket-Cyl Hd

Note: Included in Gasket Set-Part No. 397144

$7.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 495774

Breather Assy.
(Superseded to 791779)

$15.99

$

In Stock, only 4 left!

0

9

Briggs & Stratton 27549

Gasket, Valve Cover
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 397144

$3.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 281010

Tube-Breather

$5.99

$

Usually ships in 2-12 days

0

13A

Briggs & Stratton 94547

Screw, Machine Hex (Cylinder Head)
(Superseded to 690912)

$3.99

$

In Stock, Qty 15

0

13B

Briggs & Stratton 94733

Stud, Hex Washer He (3 5/16" Long)
(Superseded to 691690)

$

$

Not available

13

Briggs & Stratton 93111

Screw, Machine Hex (15/16" Long)
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 94387

Plug, Pipe (Square Head)
(Superseded to 691686)

$5.49

$

In Stock, only 1 left!

0

227

Briggs & Stratton 493402

Lever-Governor

$15.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer, Steel Zinc
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

306

Briggs & Stratton 224377

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

Screw, Tapping Hex
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 223390

Cover-Cylinder Head

$7.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

552

Briggs & Stratton 231079

Bushing, Governor S (1/4" I.d.)
(Superseded to 690508)

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 94907

Bolt, Round Head Sq
(Superseded to 691119)

$4.49

$

In Stock, Qty 19

0

592

Briggs & Stratton 231978

Nut-Hex.
(Superseded to 691251)

$3.49

$

In Stock, Qty 11

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 4 left!

0

616

Briggs & Stratton 231077

Crank, Governor (1/4" Dia.)
(Superseded to 692016)

$

$

Not available

869

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

$8.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231348

Bushing-Guide (Exhaust Valve)

$31.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272252

Gasket-Muffler
(Superseded to 691880)

Note: Included in Gasket Set-Part No. 397144

$5.49

$

In Stock, Qty 5

0

1019

Briggs & Stratton 491675

Camshaft (Plastic)

$69.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272317

Owner's Manual

$

$

Not available
