835006 - Ariens 36" Two Stage Sno-Thro Attachment (SN: 000101 & Above) Sno-Thro 36" Auger Parts Diagram

36" Two Stage Sno-Thro Attachment

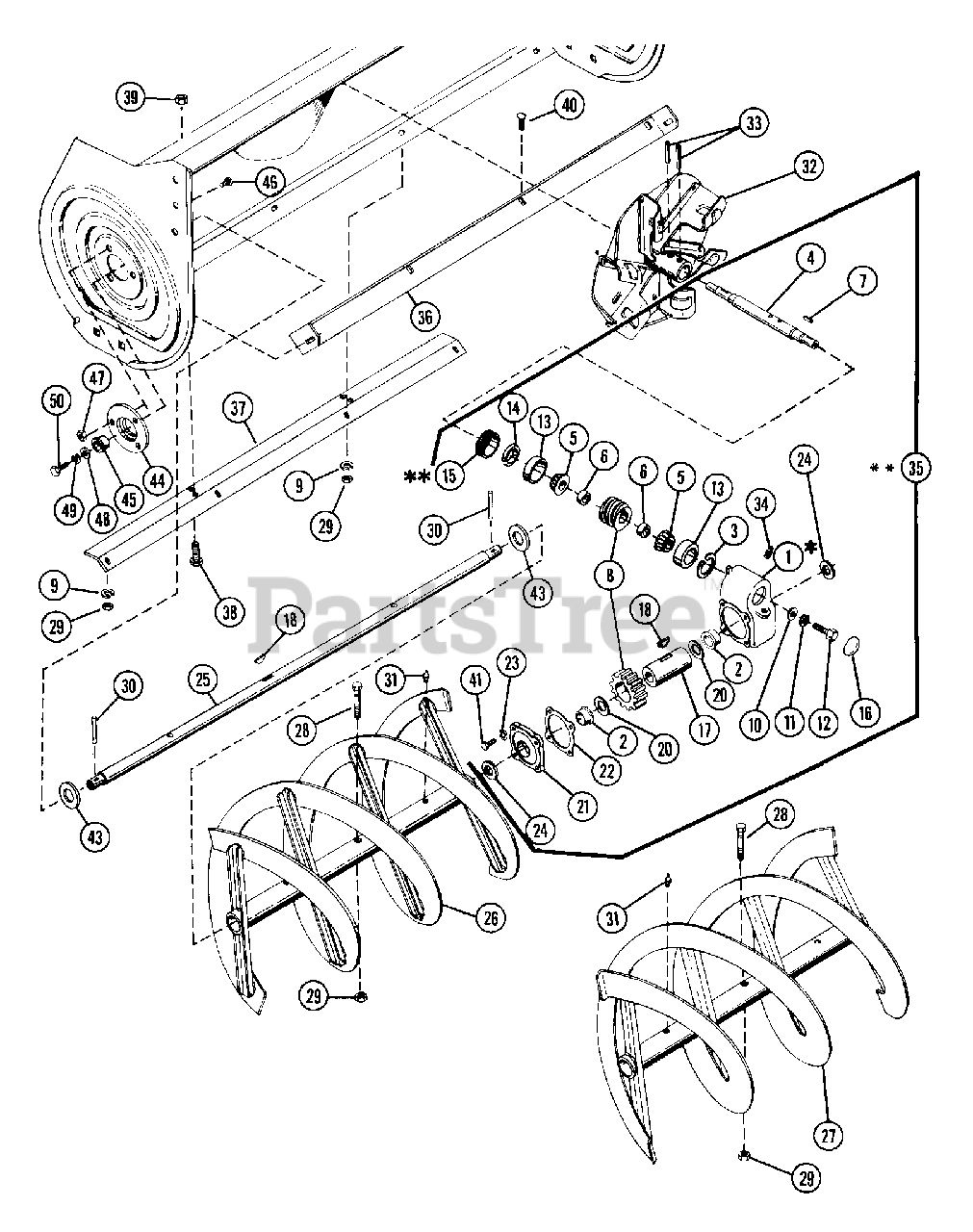

Sno-Thro 36" Auger Parts Diagram

  • Title

1

Ariens 02400200

GEAR CASE - CAST IRON

$355.99

$

Usually ships in 4-12 days

0

2

Ariens 05505900

BSHG-FLG .683X1.87X1.68X2.250

$14.99

$

In Stock, only 4 left!

0

3

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.49

$

In Stock, only 1 left!

0

4

Ariens 03519400

WORM SHAFT

$218.99

$

In Stock, only 1 left!

0

5

Ariens 05404500

BRG-CONE .750X.61

$22.99

$

In Stock, Qty 20+

0

6

Ariens 00200500

BSHG, SPCR .755X1.12X.50 PM

$7.49

$

In Stock, only 2 left!

0

7

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

8

Ariens 52400900

WORM & GEAR SERVICE ASSEMBLY

$176.99

$

Usually ships in 4-12 days

0

9

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

10

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

11

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

12

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

13

Ariens 05404400

BRG-CUP 1.781X.475

$9.49

$

In Stock, Qty 20+

0

14

Ariens 05606100

SEAL 1.000X1.312X.150

$11.99

$

In Stock, Qty 7

0

15

Ariens 02401500

ADJUSTMENT PLUG - 1" SHAFT

$92.99

$

Usually ships in 4-12 days

0

16

Ariens 00403700

DUST CAP

$18.99

$

In Stock, only 1 left!

0

17

Ariens 02406400

GEAR CASE SHAFT

$180.99

$

Usually ships in 4-12 days

0

18

Ariens 06600800

KEY-WDRF .25X.875X.375 SAE A

$3.99

$

In Stock, only 2 left!

0

20

Ariens 06408700

WSHR-FL-STL 1.625X2.500X.012

$11.99

$

In Stock, only 4 left!

0

21

Ariens 02401300

GEAR CASE COVER

$136.99

$

Usually ships in 4-12 days

0

22

Ariens 00200800

GASKET

$3.99

$

In Stock, only 3 left!

0

23

Ariens 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 05607000

SEAL 1.625X2.125X.250

$9.99

$

In Stock, only 3 left!

0

25

Ariens 03519500

SHAFT, 36" RAKE - 1.00 DIA.

$

$

Not available

26

Ariens 53503400

RAKE, RIGHT-36"(1ID X 15.75OD)
(Superseded to 52412600)

$

$

Not available

27

Ariens 53503500

RAKE, LEFT-36"(1"ID X 15.75OD)
(Superseded to 52412500)

$

$

Not available

28

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

$4.99

$

In Stock, Qty 14

0

29

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

31

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

32

Ariens 02437600

FAN - 14"
(Superseded to 02437651)

$281.99

$

Usually ships in 4-12 days

0

33

Ariens 05801500

PIN-ROLL .313X1.75

$2.49

$

In Stock, Qty 8

0

34

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

35

Ariens 53502200

GEAR CASE - 40" - CAST IRON

$

$

Not available

36

Ariens 03519200

SCRAPER BLADE 36"
(Superseded to 03519259)

$62.99

$

In Stock, only 1 left!

0

37

Ariens 03519300

BLADE BRACE
(Superseded to 03519343)

$

$

Not available

38

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, only 1 left!

0

39

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

40

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

41

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 12

0

43

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.49

$

In Stock, Qty 16

0

44

Ariens 02437400

BEARING SUPPORT
(Superseded to 05063300)

$28.99

$

In Stock, only 3 left!

0

45

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 18

0

46

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

47

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

48

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 10

0

49

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

50

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0
