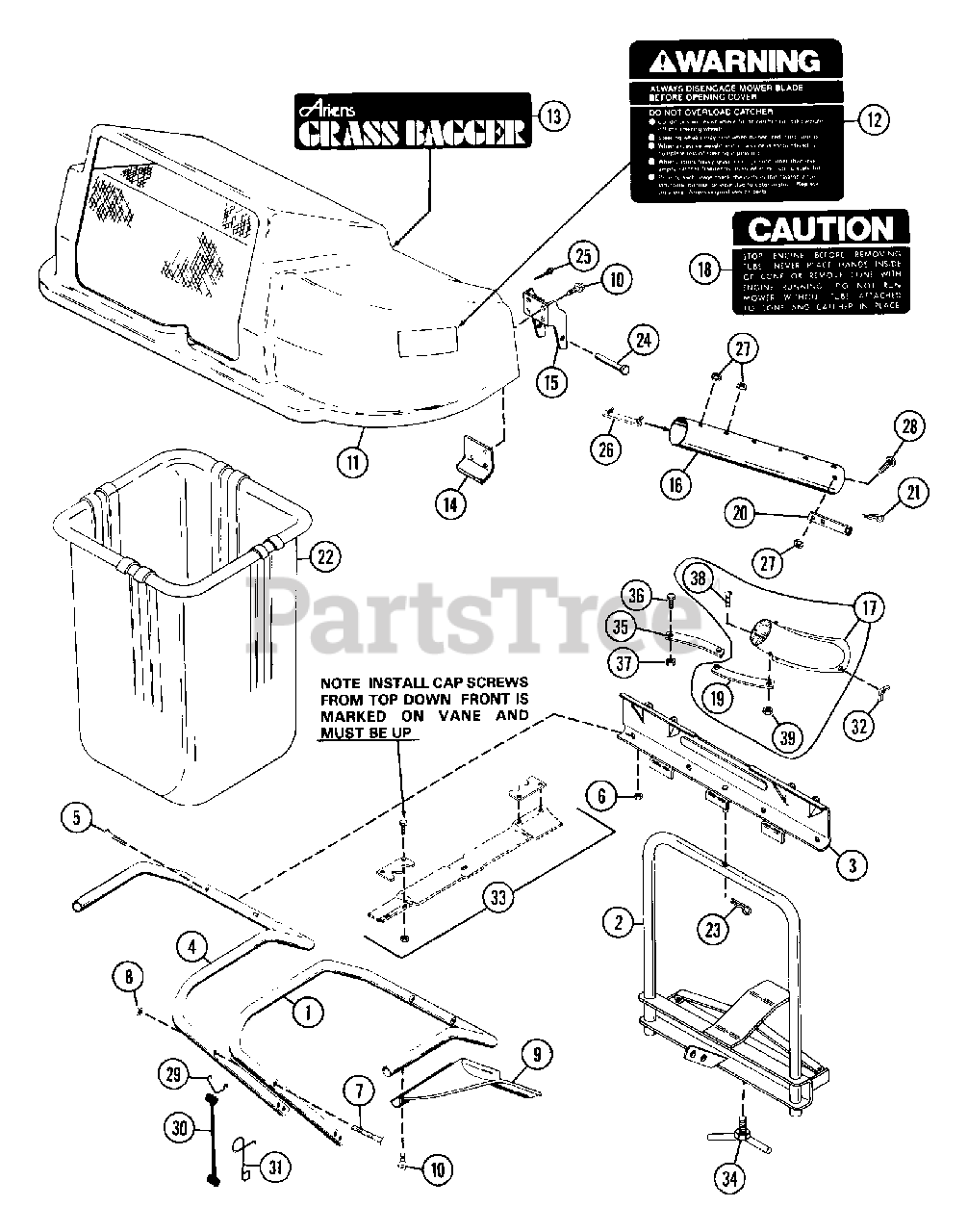

835007 - Ariens Rear Grass Bagger Attachment (SN: 000101 - 003000) Grass Bagger Parts Diagram

Rear Grass Bagger Attachment

Grass Bagger Parts Diagram

  • Title

1

Ariens 03526100

BRACKET

$

$

Not available

2

Ariens 03525800

ATTACHMENT FRAME

$

$

Not available

3

Ariens 03526000

FRAME

$

$

Not available

4

Ariens 02536800

TUBE L.H. SUPPORT

$

$

Not available

5

Ariens 06105200

SCR-MCH .31-18X1.50 CROVCNTRS
(Superseded to 06119100)

$

$

Not available

6

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

Usually ships in 4-12 days

0

7

Ariens 05904600

BLT-HEX .25-20X2.25 GR2
(Superseded to 05956700)

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 02531300

SUPPORT TUBE
(Superseded to 02537100)

$

$

Not available

10

Ariens 07002200

BLT-SCRHFWH .25-20X.62 PL

$

$

Not available

11

Ariens 62503100

GRASS CATCHER COVER ASSEMBLY
(Superseded to 52504000)

$

$

Not available

12

Ariens 07848700

WARNING DECAL
(Superseded to 05359700)

$18.99

$

Usually ships in 4-12 days

0

13

Ariens 07848500

ARIENS GRASS BAGGER DECAL
(Superseded to 07796500)

$

$

Not available

14

Ariens 02534800

RETAINER

$

$

Not available

15

Ariens 02531600

HINGE

$

$

Not available

16

Ariens 01226700

TUBE BLANK

$

$

Not available

17

Ariens 62704500

GRASS BAGGER BOOT ASSEMBLY
(Superseded to 52704700)

$

$

Not available

18

Ariens 07867200

CAUTION DECAL

$

$

Not available

19

Ariens 02723400

STRAP
(Superseded to 52703000)

$

$

Not available

20

Ariens 02539700

STRAP
(Superseded to 53506100)

$

$

Not available

21

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

22

Ariens 02532600

BASKET

$

$

Not available

23

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

In Stock, only 2 left!

0

24

Ariens 02531700

CLEVIS PIN

$

$

Not available

25

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 02533300

CLIP

$

$

Not available

27

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

28

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 7

0

29

Ariens 02533000

ANCHOR

$

$

Not available

30

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

31

Ariens 02533100

HOOK
(Superseded to 02738100)

$6.99

$

In Stock, Qty 6

0

32

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

33

Ariens 52701100

SERVICE VANE PACKAGE

Note: (INC. 0, VANES)

$45.99

$

Usually ships in 4-12 days

0

Ariens 05920600

BLT-HEX .31-24X.75 GR8
(Superseded to 05970500)

$2.49

$

Usually ships in 4-12 days

0

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 03525900

T-HANDLE BOLT

$

$

Not available

35

Ariens 02723300

PAN STRAP
(Superseded to 52703000)

$

$

Not available

36

Ariens 05920600

BLT-HEX .31-24X.75 GR8
(Superseded to 05970500)

$2.49

$

Usually ships in 4-12 days

0

37

Ariens 06514500

NUT-LK TOP .312-24 PL GR C

$

$

Not available

38

Ariens 06101400

SCR-MCH 10-24X.38 SLTOR PAN PL

$

$

Not available

39

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0
