835008 - Ariens Tiller Attachment (SN: 000101 & Above)

Tiller Attachment

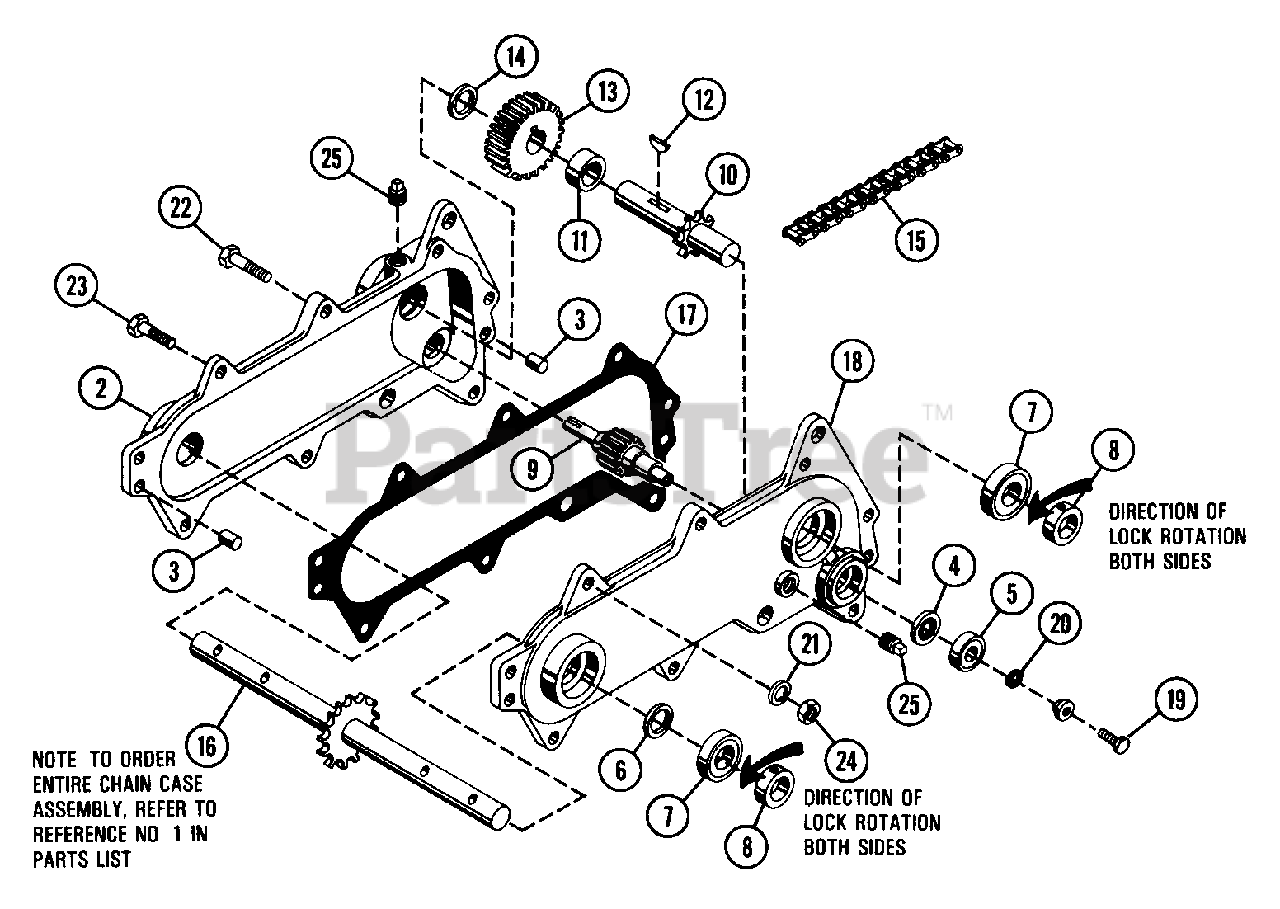

835008 - Ariens Tiller Attachment (SN: 000101 & Above) > Parts Diagrams (7) > Tiller Chain Case

  • Title
63504700

1

CHAIN CASE ASSEMBLY

Part# 63504700

OEM Warranty Repair Part for Ariens

Not available

03529200

2

CHAIN CASE

Part# 03529200

OEM Warranty Repair Part for Ariens

Not available

00406700

3

DOWEL PIN

Part# 00406700

OEM Warranty Repair Part for Ariens

Not available

05611100

4

SEAL 1.00X1.50X.188

Part# 05611100

OEM Warranty Repair Part for Ariens

Not available

05412000

5

BRG-BALL .750X1.781X.61

Part# 05412000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05611200

6

SEAL 1.125X1.874X.250

Part# 05611200

OEM Warranty Repair Part for Ariens

Not available

05414100

7

BRG-BALL 1.125X2MMX18MM

Part# 05414100

OEM Warranty Repair Part for Ariens

Not available

03531900

8

COLLAR-BEARING

Part# 03531900

OEM Warranty Repair Part for Ariens

Not available

03529300

9

DRIVE SHAFT

Part# 03529300

OEM Warranty Repair Part for Ariens

Not available

03529100

10

DRIVEN SHAFT

Part# 03529100

OEM Warranty Repair Part for Ariens

Not available

03529400

11

SPACER 1.137X1.50X.656

Part# 03529400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

06600200

12

KEY-WDRF .25X1.00X.438 SAE15

Part# 06600200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

03529500

13

GEAR 47T

Part# 03529500

OEM Warranty Repair Part for Ariens

Not available

03529600

14

SPACER 1.006X1.438X.467

Part# 03529600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03529700

15

ROLLER CHAIN #60 44P

Part# 03529700

OEM Warranty Repair Part for Ariens

Not available

03529800

16

TINE SHAFT

Part# 03529800

OEM Warranty Repair Part for Ariens

Not available

03529900

17

GASKET

Part# 03529900

OEM Warranty Repair Part for Ariens

Not available

03530000

18

CHAIN CASE COVER

Part# 03530000

OEM Warranty Repair Part for Ariens

Not available

05913500

19

BLT-HEX .31-18X.75 PL GR5

Part# 05913500 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06408200

20

WSHR-FL-STL .328X1.0X.094

Part# 06408200 (Superseded to 06437500)

OEM Warranty Repair Part for Ariens

Not available

06300300

21

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

05917000

22

BLT-HEX .31-18X2.00 PL GR5

Part# 05917000 (Superseded to 05957200)

OEM Warranty Repair Part for Ariens

Not available

05914000

23

BLT-HEX .31-18X1.50 PL GR5

Part# 05914000 (Superseded to 05952400)

OEM Warranty Repair Part for Ariens

Not available

06501500

24

NUT-HEX .312-18

Part# 06501500 (Superseded to 06529200)

OEM Warranty Repair Part for Ariens

Not available

00113800

25

PIPE PLUG

Part# 00113800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53
