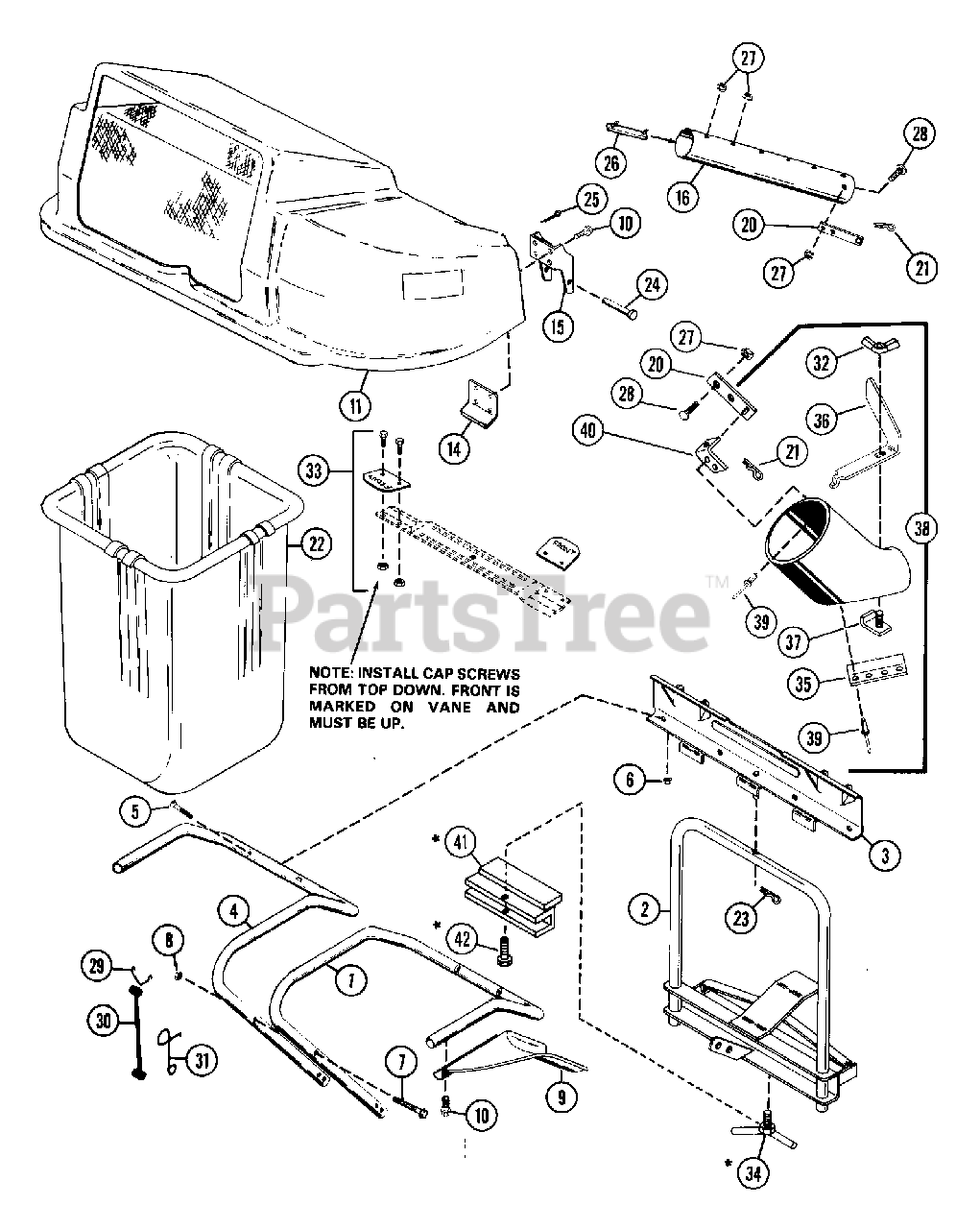

835011 - Ariens Rear Grass Bagger Attachment (SN: 000101 & Above) Grass Bagger 38" Parts Diagram

Rear Grass Bagger Attachment

Grass Bagger 38" Parts Diagram

  • Title

1

Ariens 02530900

TUBE R.H. SUPPORT

$

$

Not available

2

Ariens 03525800

ATTACHMENT FRAME

$

$

Not available

3

Ariens 03526000

FRAME

$

$

Not available

4

Ariens 02536800

TUBE L.H. SUPPORT

$

$

Not available

5

Ariens 06105200

SCR-MCH .31-18X1.50 CROVCNTRS
(Superseded to 06119100)

$

$

Not available

6

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 14

0

7

Ariens 05904600

BLT-HEX .25-20X2.25 GR2
(Superseded to 05956700)

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 02531300

SUPPORT TUBE
(Superseded to 02537100)

$

$

Not available

10

Ariens 07002200

BLT-SCRHFWH .25-20X.62 PL

$

$

Not available

11

Ariens 62503100

GRASS CATCHER COVER ASSEMBLY
(Superseded to 52504000)

$

$

Not available

14

Ariens 02534800

RETAINER

$

$

Not available

15

Ariens 02531600

HINGE

$

$

Not available

16

Ariens 01226700

TUBE BLANK

$

$

Not available

20

Ariens 02539700

STRAP
(Superseded to 53506100)

$

$

Not available

21

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.49

$

Usually ships in 4-12 days

0

22

Ariens 02532600

BASKET

$

$

Not available

23

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 2 left!

0

24

Ariens 02531700

CLEVIS PIN

$

$

Not available

25

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 02533300

CLIP

$

$

Not available

27

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 02533000

ANCHOR

$

$

Not available

30

Ariens 07507500

BATTERY STRAP

$15.99

$

Usually ships in 4-12 days

0

31

Ariens 02533100

HOOK
(Superseded to 02738100)

$7.49

$

In Stock, Qty 5

0

32

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$6.49

$

In Stock, only 1 left!

0

33

Ariens 53504600

SERVICE VANE PACKAGE

$54.99

$

Usually ships in 4-12 days

0

Ariens 05920600

BLT-HEX .31-24X.75 GR8
(Superseded to 05970500)

$2.99

$

Usually ships in 4-12 days

0

Ariens 06514500

NUT-LK TOP .312-24 PL GR C

$

$

Not available

34

Ariens 03525900

T-HANDLE BOLT

$

$

Not available

35

Ariens 02532200

EXTENSION CHUTE

$

$

Not available

36

Ariens 03549900

BOOT STRAP
(Superseded to 03536400)

$

$

Not available

37

Ariens 02532300

CLIP CONE

$

$

Not available

38

Ariens 63507600

GRASS CATCHER BOOT ASSEMBLY
(Superseded to 53505600)

$

$

Not available

39

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$

$

Not available

40

Ariens 02539600

RETAINER

$

$

Not available

41

Ariens 03532900

ADAPTOR

$

$

Not available

42

Ariens 05914300

BLT-HEX .50-13X2.25 PL GR5
(Superseded to 05961000)

$3.99

$

In Stock, only 2 left!

0
