835020 - Ariens 32" Three Basket Grass Bagger (SN: 000101 & Above) Bagger Vac Chute Parts Diagram

32" Three Basket Grass Bagger

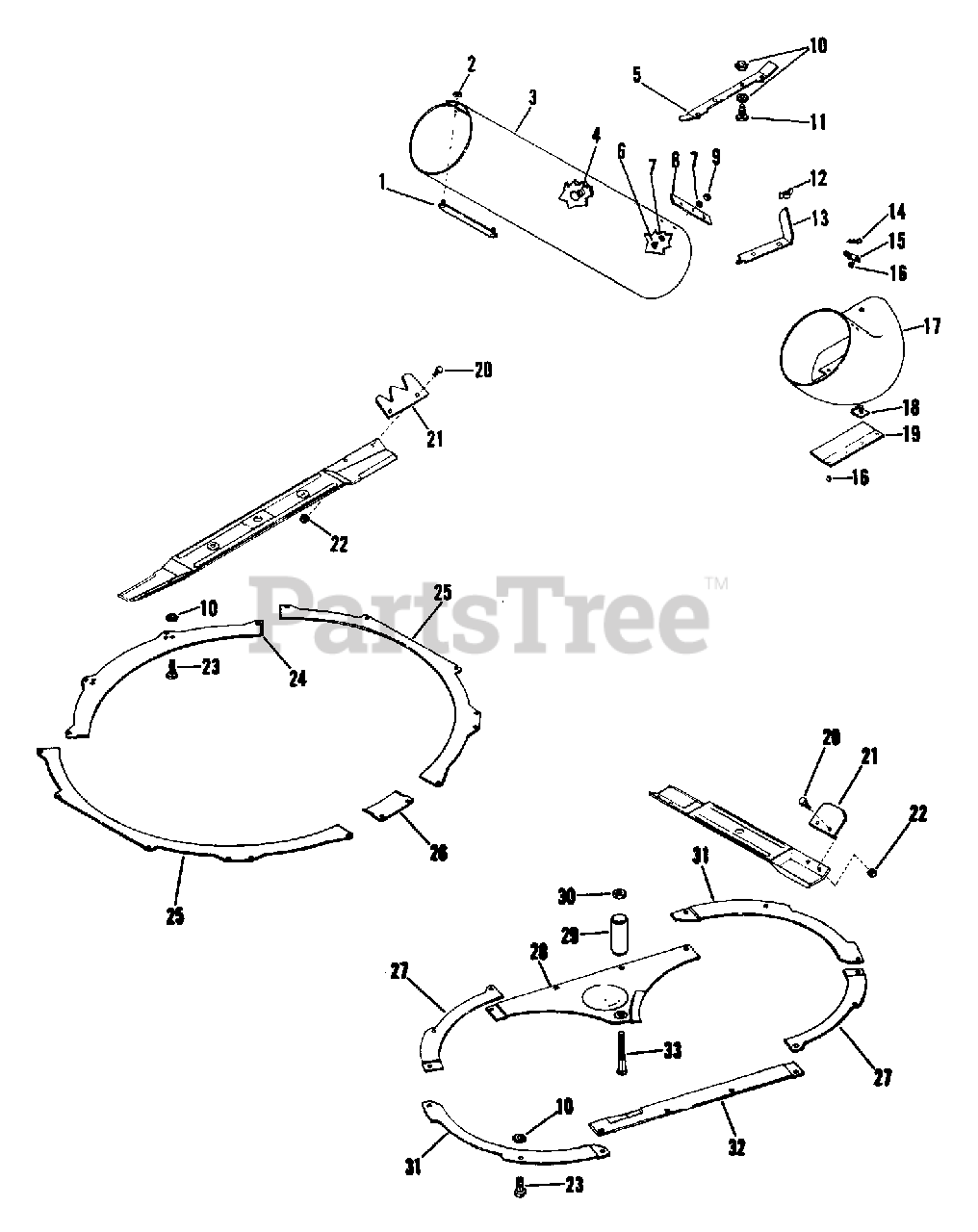

Bagger Vac Chute Parts Diagram

  • Title

$

$

Not available

2

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.96

$

In Stock, Qty 20+

0

3

Ariens 03558600

TUBE BLANK

$181.56

$

Usually ships in 4-12 days

0

4

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$1.96

$

In Stock, Qty 20+

0

6

Ariens 06101200

SCR-MCH 10-24X.50 SLRH PL
(Superseded to 06117600)

$2.46

$

Usually ships in 4-12 days

0

7

Ariens 06414100

WSHR-FL-STL .219X.500X.049 PL
(Superseded to 06442700)

$2.52

$

Usually ships in 4-12 days

0

8

$

$

Not available

9

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.68

$

Usually ships in 4-12 days

0

10

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$2.24

$

In Stock, Qty 20+

0

11

Ariens 06203700

BLT-RDHDSQNK .25-20X1.00 GR5
(Superseded to 06219800)

$1.99

$

In Stock, only 1 left!

0

14

Ariens 06702900

PIN-HAIR INT .09X.188 PL

$2.12

$

Usually ships in 4-12 days

0

15

Ariens 02539600

RETAINER

$

$

Not available

16

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$1.68

$

Usually ships in 4-12 days

0

17

Ariens 52705400

BOOT ASSEMBLY 32"

$161.21

$

In Stock, only 1 left!

0

20

Ariens 05920600

BLT-HEX .31-24X.75 GR8
(Superseded to 05970500)

$2.18

$

Usually ships in 4-12 days

0

21

Ariens 52701100

SERVICE VANE PACKAGE

$38.96

$

Usually ships in 4-12 days

0

22

Ariens 06514500

NUT-LK TOP .312-24 PL GR C

$

$

Not available

23

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$3.58

$

Usually ships in 4-12 days

0

24

Ariens 02727400

BACK FLANGE
(Superseded to 02727459)

$

$

Not available

25

Ariens 02728100

SIDE FLANGE

$14.48

$

Usually ships in 4-12 days

0

26

Ariens 02727700

FRONT CLAMP

$25.66

$

Usually ships in 4-12 days

0
