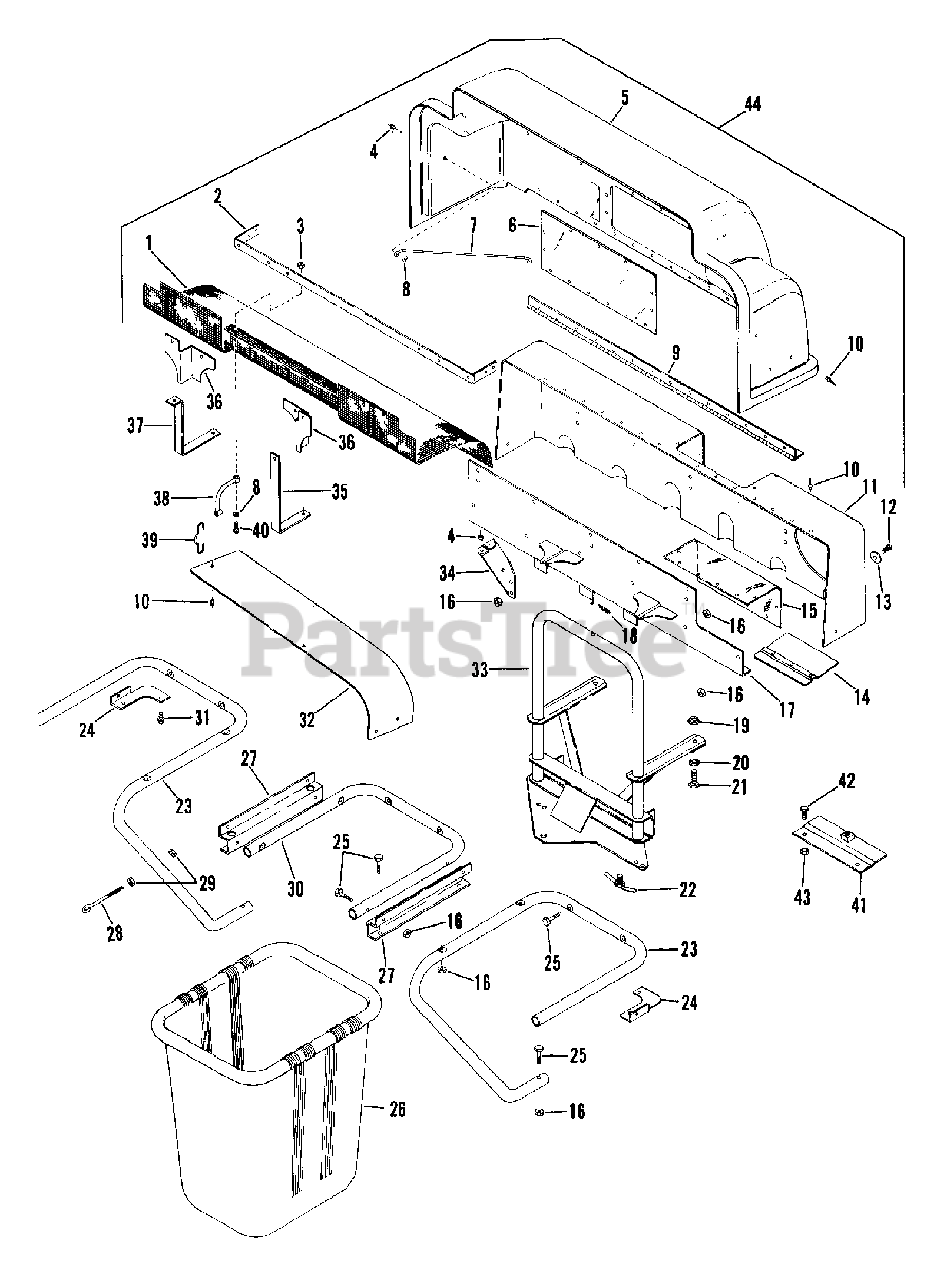

835020 - Ariens 32" Three Basket Grass Bagger (SN: 000101 & Above) Bagger Vac Collector Parts Diagram

32" Three Basket Grass Bagger

Bagger Vac Collector Parts Diagram

  • Title
1

$

$

Not available

2

Ariens 03325400

SCREEN MOUNTING BRACKET

$

$

Not available

3

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.68

$

Usually ships in 4-12 days

0

4

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.96

$

In Stock, Qty 20+

0

5

Ariens 53506800

HINGED COVER W/DECALS

$

$

Not available

6

Ariens 03560600

HINGED COVER WINDOW

$

$

Not available

7

$

$

Not available

8

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

$1.68

$

Usually ships in 4-12 days

0

9

Ariens 03325200

HINGE- 2.0"X35.0"

$

$

Not available

10

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.68

$

In Stock, Qty 11

0

11

Ariens 53506700

STATIONARY COVER

$

$

Not available

12

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.24

$

In Stock, Qty 5

0

13

Ariens 06407900

WSHR-FL-STL .344X1.125X.063PL
(Superseded to 06425500)

$5.53

$

In Stock, Qty 20+

0

14

Ariens 53506300

TUBE GUIDE

$

$

Not available

15

Ariens 03560400

STATIONARY COVER WINDOW

$

$

Not available

16

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$2.24

$

In Stock, Qty 20+

0

17

Ariens 03551400

MOUNTING BRACKET

$

$

Not available

18

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.24

$

In Stock, Qty 8

0

19

Ariens 06508000

NUT-LK-FLG .375-16 PL

$3.58

$

Usually ships in 4-12 days

0

20

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.96

$

Usually ships in 4-12 days

0

21

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$2.18

$

In Stock, only 3 left!

0

22

Ariens 03525900

T-HANDLE BOLT

$

$

Not available

23

Ariens 03324800

RIGHT TUBE

$

$

Not available

23

Ariens 03324900

LEFT TUBE

$

$

Not available

24

Ariens 02725000

RH CORNER BRACKET

$

$

Not available

24

Ariens 02725100

LH CORNER BRACKET

$

$

Not available

25

Ariens 06105200

SCR-MCH .31-18X1.50 CROVCNTRS
(Superseded to 06119100)

$

$

Not available

26

Ariens 02724400

GRASS BAGGER BASKET

$58.64

$

In Stock, only 2 left!

0

27

Ariens 02724700

TUBE BRACKET

$

$

Not available

28

Ariens 02732700

SEAT SWITCH BRACKET
(Superseded to 52706600)

$

$

Not available

29

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$2.24

$

In Stock, Qty 20+

0

30

Ariens 02724200

DASH PANEL W/SILK SCREEN

$

$

Not available

31

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$2.24

$

In Stock, Qty 20+

0

32

$6.65

$

Usually ships in 4-12 days

0

33

Ariens 03579200

ATTACHMENT FRAME

$

$

Not available

34

$

$

Not available

35

$111.63

$

Usually ships in 4-12 days

0

36

Ariens 03326900

BAFFLE LH

$5.53

$

Usually ships in 4-12 days

0

36

Ariens 03327000

BAFFLE RH

$

$

Not available

37

$5.53

$

Usually ships in 4-12 days

0

38

Ariens 07507500

BATTERY STRAP

$14.48

$

Usually ships in 4-12 days

0

39

$6.65

$

In Stock, Qty 7

0

40

Ariens 06101600

SCR-MCH 10-24X.88 SLRH PL
(Superseded to 06119200)

$

$

Not available

41

Ariens 03579300

ADAPTER WELD'T

$

$

Not available

42

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$2.18

$

In Stock, only 3 left!

0

43

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$2.24

$

In Stock, Qty 20+

0

44

Ariens 53506900

COVER ASSEMBLY

Note: (COMPLETE)

$

$

Not available
