835022 - Gravely 32" Grass Bagger for 1100 & 1200 Series Tractor (SN: 000101 & Above)

32" Grass Bagger for 1100 & 1200 Series Tractor

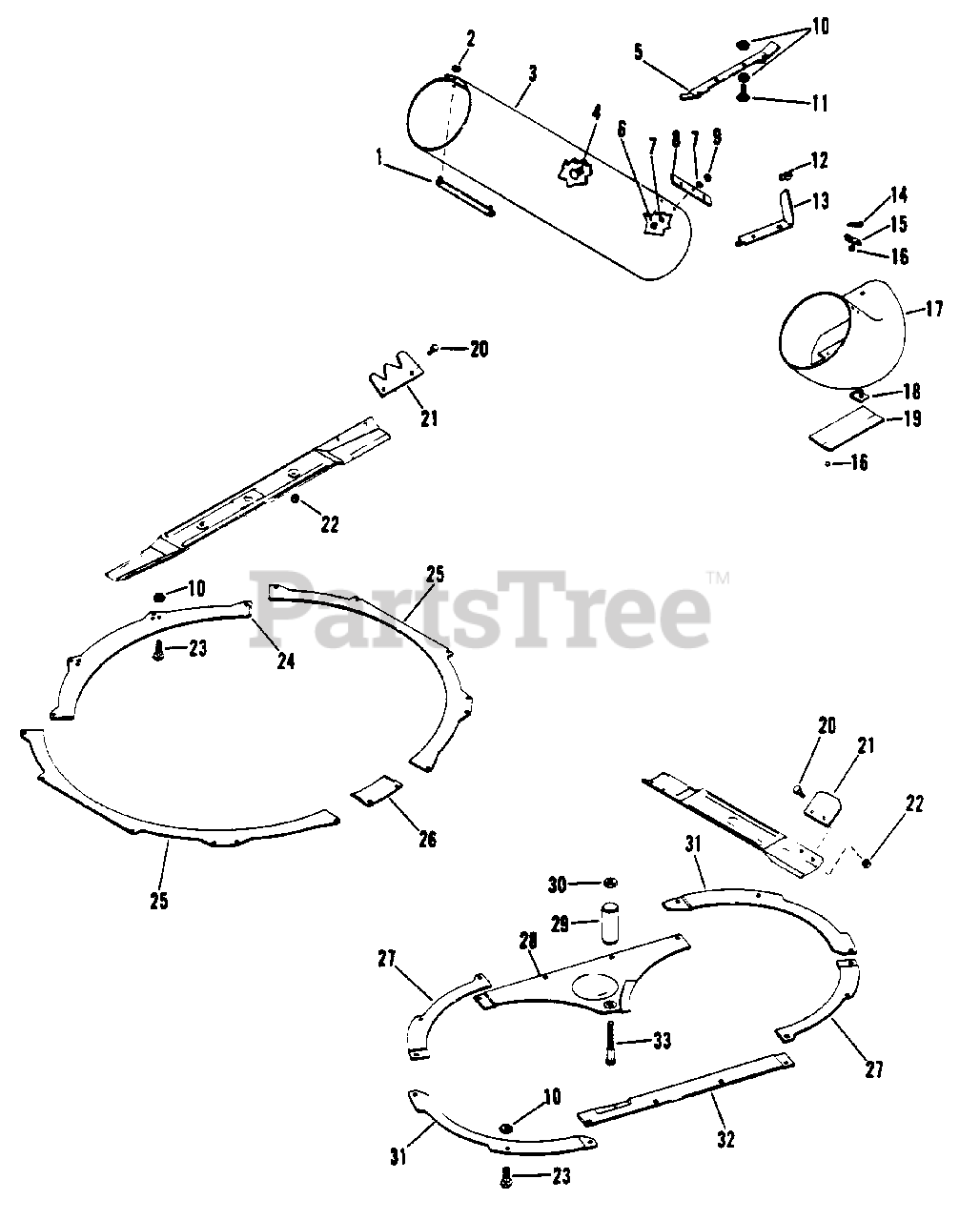

835022 - Gravely 32" Grass Bagger for 1100 & 1200 Series Tractor (SN: 000101 & Above) > Parts Diagrams (2) > TUBE AND BOOT ASSEMBLY

  • Title
035825

1

Clip

Part# 035825 (Superseded to 02533300)

OEM Warranty Repair Part for Gravely

Not available

424215

2

Nut, Lock 1/4-20

Part# 424215 (Superseded to 06529700)

OEM Warranty Repair Part for Gravely

Not available

041082

3

Blank, Tube

Part# 041082 (Superseded to 03558600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $181.56

110356

4

Bolt, Carrige 1/4-20x.50

Part# 110356 (Superseded to 21048900)

OEM Warranty Repair Part for Gravely

Not available

041084

5

Spring, Latch

Part# 041084 (Superseded to 02730800)

OEM Warranty Repair Part for Gravely

Not available

159920

6

Screw, Machine 10-24x.50 PHD

Part# 159920 (Superseded to 06113000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

446161

7

Washer, Flat .219x.438x.049

Part# 446161 (Superseded to 06442700)

OEM Warranty Repair Part for Gravely

Not available

041085

8

Strap

Part# 041085 (Superseded to 03558400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

190254

9

Nut, Lock 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

424215

10

Nut, Lock 1/4-20

Part# 424215 (Superseded to 06529700)

OEM Warranty Repair Part for Gravely

Not available

126325

11

Bolt, Carrige 1/4-20x1.25

Part# 126325 (Superseded to 06219700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

148313

12

Nut, Wing 5/16-18

Part# 148313 (Superseded to 06503800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

035837

13

Strap, Boot

Part# 035837 (Superseded to 03536400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.24

036566

14

Hairpin, Internal

Part# 036566 (Superseded to 06702900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

036783

15

Retainer

Part# 036783 (Superseded to 02539600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

036782

16

Rivet

Part# 036782 (Superseded to 06806200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

038331

17

Assembly, Boot w/Decal

Part# 038331 (Superseded to 03552400)

OEM Warranty Repair Part for Gravely

Not available

045471

17

Assembly, Boot w/Decal

Part# 045471 (Superseded to 03556700)

OEM Warranty Repair Part for Gravely

Not available

035838

18

Clip, Cone

Part# 035838 (Superseded to 02532300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

035836

19

Extension, Chute

Part# 035836 (Superseded to 02532200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

181595

20

Bolt, Hex 5/16-24x.75

Part# 181595 (Superseded to 05947300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

036779

21

Vane

Part# 036779

OEM Warranty Repair Part for Gravely

Not available

041087

21

Vane

Part# 041087 (Superseded to 52701100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $37.12

035834

22

Nut, Lock 5/16-24 Gr. C

Part# 035834 (Superseded to 06514500)

OEM Warranty Repair Part for Gravely

Not available

126203

23

Bolt, 1/4-20x.625 Rd Hd Sq Nk

Part# 126203 (Superseded to 06213800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

041107

24

Flange, Back

Part# 041107 (Superseded to 02727459)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.60

041106

25

Flange, Side

Part# 041106 (Superseded to 02728100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

041108

26

Flange, Front

Part# 041108 (Superseded to 02727700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

035840

27

Flange, Short Curve

Part# 035840

OEM Warranty Repair Part for Gravely

Not available

035842

28

Flange, Rear

Part# 035842 (Superseded to 03535900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

035846

29

Spacer

Part# 035846 (Superseded to 03536100)

OEM Warranty Repair Part for Gravely

Not available

414074

30

Nut, Lock 1/2-13

Part# 414074 (Superseded to 06536300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

035841

31

Flange, Long Curve

Part# 035841 (Superseded to 03535859)

OEM Warranty Repair Part for Gravely

Not available

035843

32

Flange, Front

Part# 035843 (Superseded to 03536000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

125720

33

Bolt, 1/2-13x4.25 Rd Hd Sq Nk

Part# 125720 (Superseded to 06216300)

OEM Warranty Repair Part for Gravely

Not available
