835025 - Gravely 36" Snow Blower for 1100 & 1200 Series Tractor (SN: 000101 & Above) CARRIAGE ASSEMBLY AND PTO Parts Diagram

36" Snow Blower for 1100 & 1200 Series Tractor

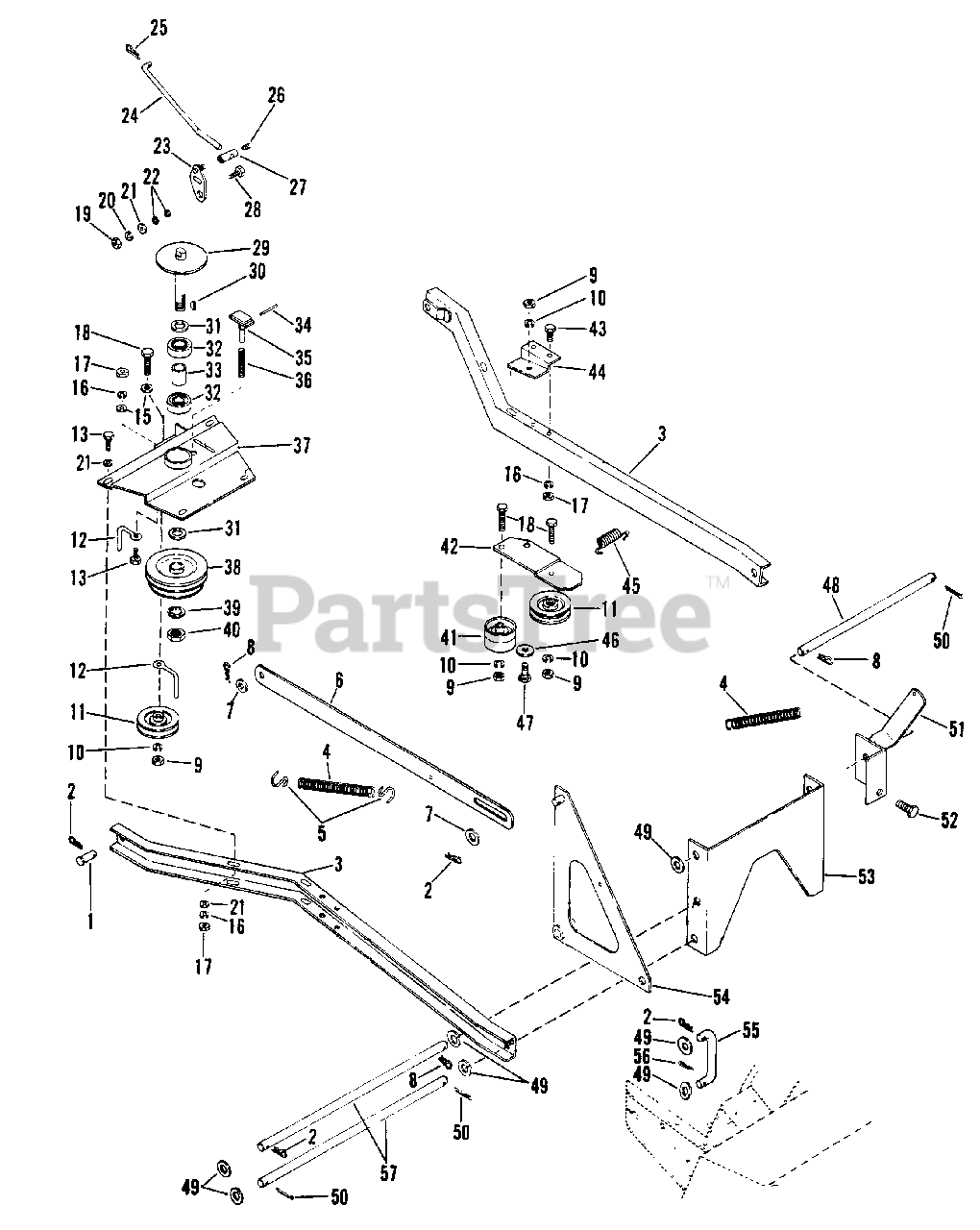

CARRIAGE ASSEMBLY AND PTO Parts Diagram

  • Title

1

Gravely 036568

PIN,CLEV .50X1.25X1.02 YWZC
(Superseded to 06821600)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 036566

PIN-HAIR INT .09X.188 PL
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 036544

CHANNEL
(Superseded to 03508000)

$

$

Not available

4

Gravely 036558

SG-TENS .187X1.50X9.94 WLD 40
(Superseded to 08313300)

$46.99

$

In Stock, only 2 left!

0

5

Gravely 036909

S HOOK
(Superseded to 03192200)

$

$

Not available

6

Gravely 036564

LIFT STRAP
(Superseded to 03508400)

$

$

Not available

7

Gravely 120389

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

8

Gravely 010405

PIN-HAIR-INT .15X2.937 YWZC
(Superseded to 06714000)

$3.49

$

In Stock, only 1 left!

0

9

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 036256

IDLER-V 3.06 X .38
(Superseded to 07310900)

$24.99

$

In Stock, only 1 left!

0

12

Gravely 036235

BELT FINGER
(Superseded to 03175500)

$

$

Not available

13

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 120379

WSHR-LK .313 SP
(Superseded to 06304800)

$

$

Not available

17

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

18

Gravely 180128

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

20

Gravely 120380

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

21

Gravely 120386

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 446179

WSHR,FL.250X.500.049
(Superseded to 21071000)

$

$

Not available

23

Gravely 036828

BRAKE ACTUATOR
(Superseded to 03517400)

$

$

Not available

24

Gravely 036834

BRAKE ROD
(Superseded to 03517700)

$

$

Not available

25

Gravely 036185

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 102581

SCR-SET .31-18X.38 SKHCUPDL
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

27

Gravely 036835

ROD ADAPTER
(Superseded to 02213500)

$40.99

$

In Stock, only 2 left!

0

28

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

29

Gravely 036832

SPINDLE SHAFT
(Superseded to 03517800)

$

$

Not available

30

Gravely 106751

KEY-WDRF .188X.75X.313 SAE 9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 13

0

31

Gravely 131000

WSHR-FL-STL.812X2.00X.148YWZC
(Superseded to 06401201)

$4.99

$

In Stock, Qty 11

0

32

Gravely 035925

BRG-BALL .750X1.781X.61
(Superseded to 05412000)

$15.99

$

In Stock, Qty 20+

0

33

Gravely 036827

SPACER .765X1.000X1.252
(Superseded to 03517300)

$

$

Not available

34

Gravely 036831

PIN-ROLL .188X1.75
(Superseded to 05805600)

$

$

Not available

35

Gravely 036829

BRAKE PLUNGER
(Superseded to 03598600)

$39.99

$

Usually ships in 4-12 days

0

36

Gravely 036830

SG-COMP ??X.44X?? WLD 10
(Superseded to 08301500)

$

$

Not available

37

Gravely 036826

SPINDLE HOUSING
(Superseded to 03517200)

$

$

Not available

38

Gravely 036833

DOUBLE SHEAVE
(Superseded to 03517900)

$

$

Not available

39

Gravely 036225

STAR WASHER
(Superseded to 03559000)

$20.99

$

Usually ships in 4-12 days

0

40

Gravely 426897

NUT-JAM .75-10 YWZC
(Superseded to 06537700)

$2.99

$

In Stock, Qty 20+

0

41

Gravely 036247

IDLER-FLAT 2.25 X .38
(Superseded to 07310800)

$35.99

$

In Stock, only 2 left!

0

42

Gravely 036838

IDLER ARM
(Superseded to 03518100)

$

$

Not available

43

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

44

Gravely 036837

IDLER MOUNT
(Superseded to 03518000)

$

$

Not available

45

Gravely 036907

SG-TENS .080X.73X3.06 WLD 20
(Superseded to 08318600)

$

$

Not available

46

Gravely 036840

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

47

Gravely 049109

BLT,SHLDR EP .38-16X.30 HEX YZ
(Superseded to 07000034)

$3.99

$

In Stock, Qty 17

0

48

Gravely 049110

MOUNT ROD
(Superseded to 03581300)

$

$

Not available

49

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

50

Gravely 137228

PIN-CTR .15X1.50 YWZC
(Superseded to 06713800)

$3.99

$

Usually ships in 4-12 days

0

51

Gravely 049112

SPRING ANCHOR
(Superseded to 03518300)

$

$

Not available

52

Gravely 180175

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

53

Gravely 036560

PIVOT SUPPORT
(Superseded to 03508100)

$

$

Not available

54

Gravely 049111

LIFT BELLCRANK
(Superseded to 03581400)

$

$

Not available

55

Gravely 049113

LIFT LINK
(Superseded to 03581100)

$

$

Not available

56

Gravely 137185

PIN-CTR .12X1.00 EXTPRSQCT YZ
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

57

Gravely 036561

PIVOT ROD
(Superseded to 03508300)

$

$

Not available
