835029 - Ariens 36" Two Stage Sno-Thro Attachment (SN: 000101 & Above)

36" Two Stage Sno-Thro Attachment

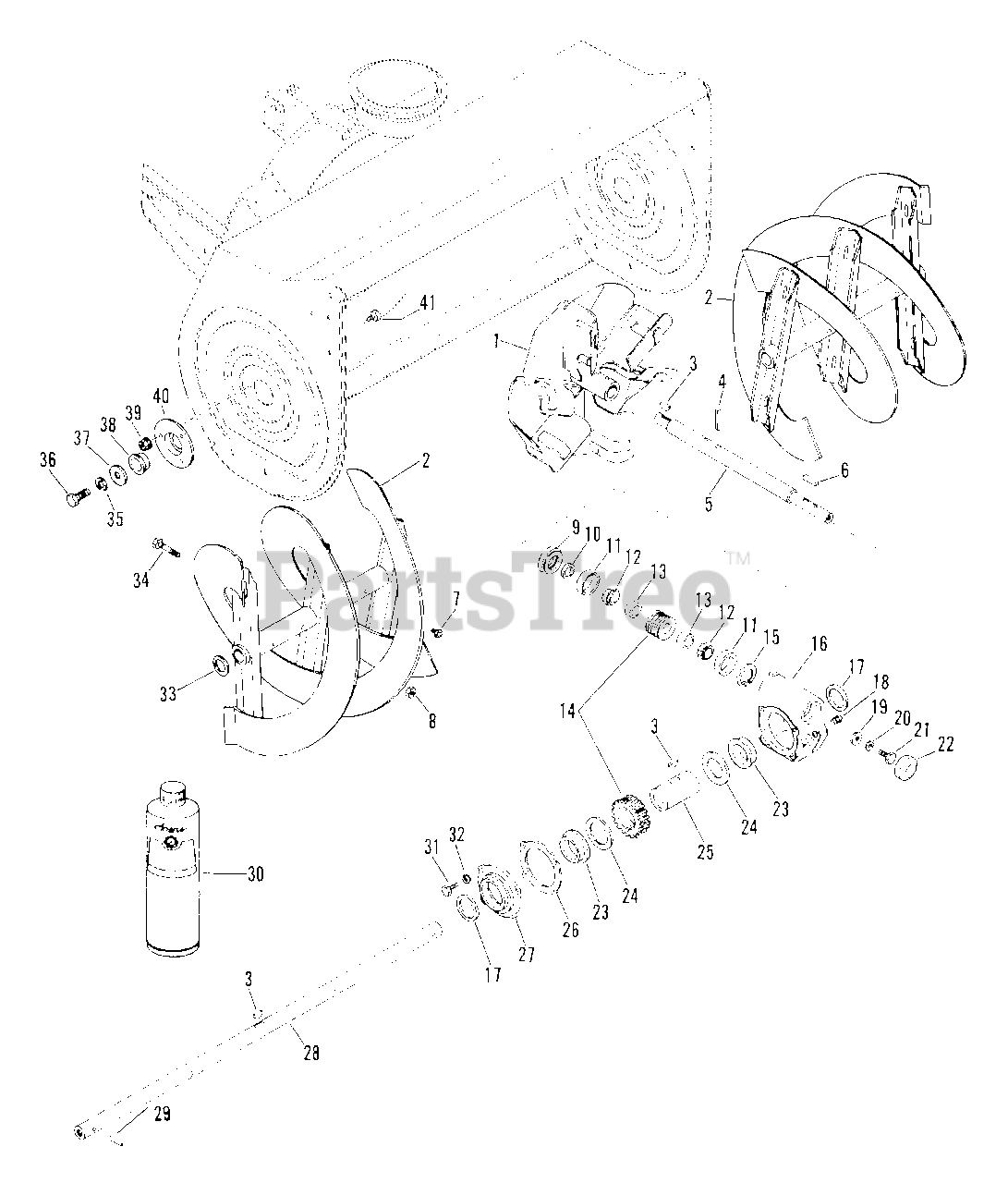

835029 - Ariens 36" Two Stage Sno-Thro Attachment (SN: 000101 & Above) > Parts Diagrams (4) > Auger / Impeller And Gear Case

  • Title
02437600

1

FAN - 14"

Part# 02437600 (Superseded to 02437651)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $263.40

53503400

2

RAKE, RIGHT-36"(1ID X 15.75OD)

Part# 53503400 (Superseded to 52412600)

OEM Warranty Repair Part for Ariens

Not available

53503500

2

RAKE, LEFT-36"(1"ID X 15.75OD)

Part# 53503500 (Superseded to 52412500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.35

06600800

3

KEY-WDRF .25X.875X.375 SAE A

Part# 06600800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05801500

4

PIN-ROLL .313X1.75

Part# 05801500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

03519400

5

WORM SHAFT

Part# 03519400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $141.37

06601300

6

KEY-SQ .188X1.0X.188 SAE 8630

Part# 06601300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

02209300

7

SPIN DRIVE ZERK FITTING

Part# 02209300 (Superseded to 07012600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06504200

8

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

02401500

9

ADJUSTMENT PLUG - 1" SHAFT

Part# 02401500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $79.77

05606100

10

SEAL 1.000X1.312X.150

Part# 05606100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.68

05404400

11

BRG-CUP 1.781X.475

Part# 05404400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05404500

12

BRG-CONE .750X.61

Part# 05404500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

00200500

13

BSHG, SPCR .755X1.12X.50 PM

Part# 00200500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.99

52400900

14

WORM & GEAR SERVICE ASSEMBLY

Part# 52400900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $145.28

05707500

15

RG-RTNG-INT 1.781X.062

Part# 05707500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

53502200

16

GEAR CASE - 40" - CAST IRON

Part# 53502200

Note: (COMPLETE)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $967.68

02400200

16

GEAR CASE - CAST IRON

Part# 02400200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $307.39

05607000

17

SEAL 1.625X2.125X.250

Part# 05607000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

00113800

18

PIPE PLUG

Part# 00113800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06408200

19

WSHR-FL-STL .328X1.0X.094

Part# 06408200 (Superseded to 06437500)

OEM Warranty Repair Part for Ariens

Not available

06300300

20

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

05902200

21

BLT-HEX .31-18X.75 PL GR2

Part# 05902200 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00403700

22

DUST CAP

Part# 00403700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.70

05505900

23

BSHG-FLG .683X1.87X1.68X2.250

Part# 05505900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.68

06408700

24

WSHR-FL-STL 1.625X2.500X.012

Part# 06408700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

02406400

25

GEAR CASE SHAFT

Part# 02406400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $126.61

00200800

26

GASKET

Part# 00200800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

02401300

27

GEAR CASE COVER

Part# 02401300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $133.99

03519500

28

SHAFT, 36" RAKE - 1.00 DIA.

Part# 03519500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $304.94

05803000

29

PIN-ROLL .188X1.50

Part# 05803000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00008000

30

ARIENS 16 OZ.BOTTLE OF L2 LUBE

Part# 00008000 (Superseded to 00068800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

05900100

31

BLT-HEX .25-20X.75 PL GR2

Part# 05900100 (Superseded to 05946800)

OEM Warranty Repair Part for Ariens

Not available

06301700

32

WSHR-LK-EXT. 250 ID

Part# 06301700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06404600

33

WSHR-FL-STL 1.010X1.505X.062PL

Part# 06404600

OEM Warranty Repair Part for Ariens

Not available

51001500

34

SHEAR BOLT SERVICE ASSEMBLY

Part# 51001500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.42

06300600

35

WSHR-LK .500X.151 HVY PL

Part# 06300600 (Superseded to 06306600)

OEM Warranty Repair Part for Ariens

Not available

05902400

36

BLT-HEX .50-13X1.00 PL GR2

Part# 05902400 (Superseded to 05947100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06404700

37

WSHR-FL-STL .511X1.441X.125 PL

Part# 06404700 (Superseded to 06436400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05503500

38

BSHG-FLG 1.000X1.12X.62X1.50BR

Part# 05503500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

06505600

39

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02437400

40

BEARING SUPPORT

Part# 02437400

OEM Warranty Repair Part for Ariens

Not available

07005800

41

BLT-SERNK SL .25-20X.50 PL

Part# 07005800 (Superseded to 07028600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30
