835029 - Ariens 36" Two Stage Sno-Thro Attachment (SN: 000101 & Above)

36" Two Stage Sno-Thro Attachment

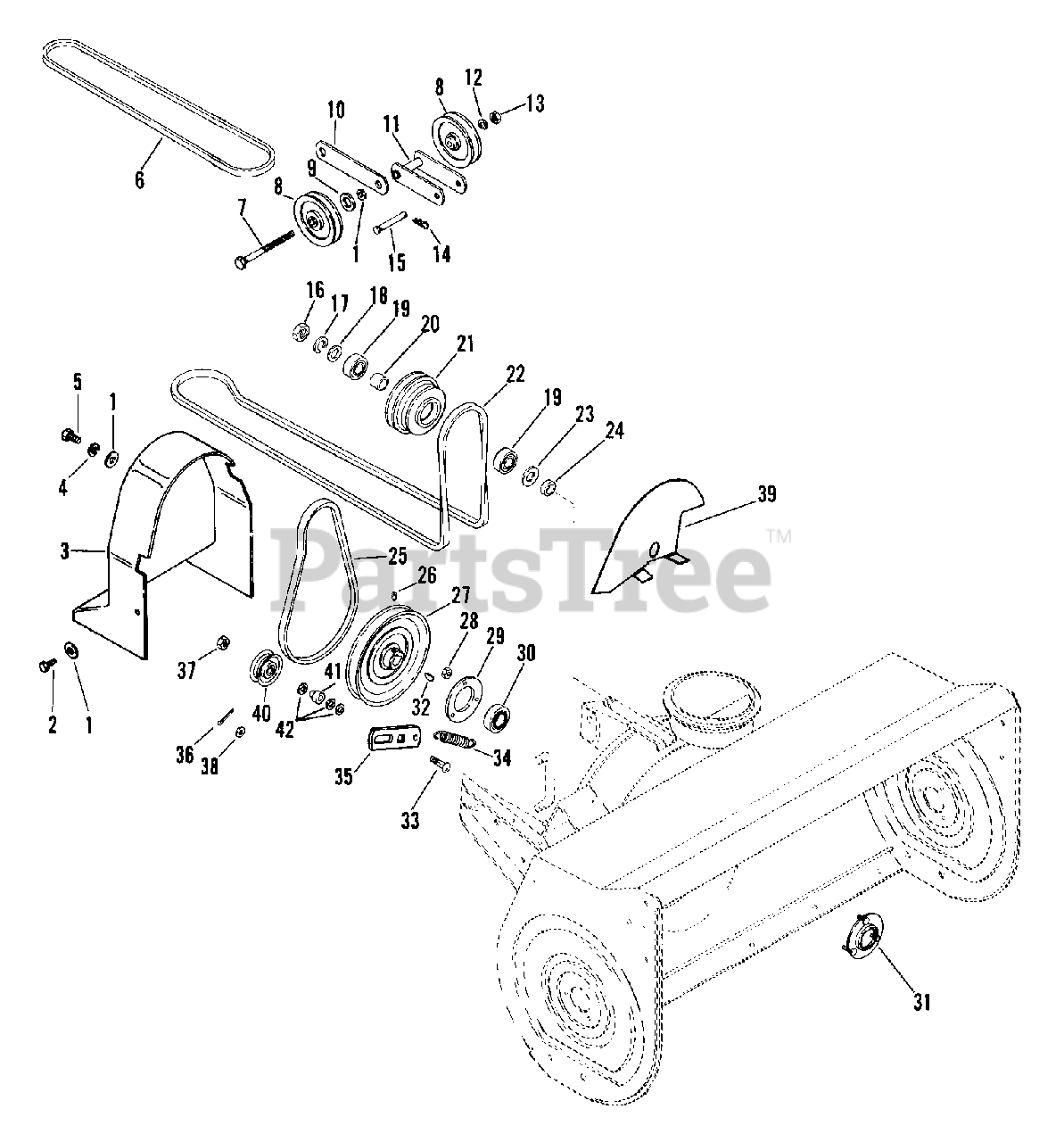

835029 - Ariens 36" Two Stage Sno-Thro Attachment (SN: 000101 & Above) > Parts Diagrams (4) > Sno-Thro Belt Drive

  • Title
06409300

1

WSHR-FL-STL .382X.812X.062

Part# 06409300 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07401400

2

SCR-TAP .312-18X.50 HWH PL TR

Part# 07401400 (Superseded to 07411500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03590900

3

BELT GUARD

Part# 03590900

OEM Warranty Repair Part for Ariens

Not available

06300300

4

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

05913500

5

BLT-HEX .31-18X.75 PL GR5

Part# 05913500 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07211800

6

V-BELT, 4L-RAW EDGE

Part# 07211800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $25.77

05917500

7

BLT-HEX .38-16X5.00 PL GR2

Part# 05917500 (Superseded to 05957700)

OEM Warranty Repair Part for Ariens

Not available

07311400

8

IDLER-V 4.00 X .38 NWHAMSHR

Part# 07311400 (Superseded to 07300528)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $39.07

06404800

9

WSHR-FL-STL .755X1.375X.062 PL

Part# 06404800 (Superseded to 06441500)

OEM Warranty Repair Part for Ariens

Not available

03518400

10

STRAP

Part# 03518400 (Superseded to 03339543)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

03518500

11

IDLER BRACKET

Part# 03518500

OEM Warranty Repair Part for Ariens

Not available

06300400

12

WSHR-LK .375X.115 HVY PL

Part# 06300400 (Superseded to 06306500)

OEM Warranty Repair Part for Ariens

Not available

06501800

13

NUT-HEX .375-16

Part# 06501800 (Superseded to 06529400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06701000

14

PIN-HAIR INT .08X.38X1.42 YWZC

Part# 06701000

OEM Warranty Repair Part for Ariens

Not available

03518600

15

CLEVIS PIN 3/8X3.0 YWZC

Part# 03518600

OEM Warranty Repair Part for Ariens

Not available

06502500

16

NUT-JAM .75-10 PL

Part# 06502500 (Superseded to 06537700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06302700

17

WSHR-LK-INT .750X.050 MED

Part# 06302700 (Superseded to 06310800)

OEM Warranty Repair Part for Ariens

Not available

06410800

18

WSHR-FL-STL .781X1.250X.059 PL

Part# 06410800 (Superseded to 06416700)

OEM Warranty Repair Part for Ariens

Not available

05412000

19

BRG-BALL .750X1.781X.61

Part# 05412000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

03519000

20

SPACER 1.00 X .770/.760 X .813

Part# 03519000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03518900

21

SHEAVE

Part# 03518900

OEM Warranty Repair Part for Ariens

Not available

07212000

22

V-BELT, HA-WRAPPED

Part# 07212000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $52.77

06410900

23

WSHR-FL-STL .781X1.500X.188

Part# 06410900 (Superseded to 06439000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03592400

24

SPACER .76/.77 X 1.00 X .30

Part# 03592400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

07212100

25

OBSOLETE

Part# 07212100 (Superseded to 07214200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $21.07

06000300

26

SCR-SET .32-18X.50 SKHCUP OH

Part# 06000300 (Superseded to 06003200)

OEM Warranty Repair Part for Ariens

Not available

07309400

27

PLY-V 7.50 X .75 W/KEY SALEM

Part# 07309400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

06504000

28

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

03185900

29

BEARING FLANGE

Part# 03185900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.24

05404200

30

BRG-BALL .984X2.047X.59

Part# 05404200

OEM Warranty Repair Part for Ariens

Not available

03186000

31

BEARING FLANGE

Part# 03186000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.55

06600100

32

KEY-WDRF .188X.875X.375 SAE11

Part# 06600100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06205600

33

BLT-RDHDSQNK .38-16X1.50 PL

Part# 06205600 (Superseded to 06224200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

08312200

34

SG-TENS .090X.75X3.50 WLD 34

Part# 08312200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

03589100

35

IDLER ARM

Part# 03589100 (Superseded to 03589143)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

06702400

36

PIN-COTR .12X.75 PL

Part# 06702400 (Superseded to 06707300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06503900

37

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06405200

38

WSHR-FL-STL .382X.812X.023 PL

Part# 06405200 (Superseded to 06436500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03592500

39

SHIELD

Part# 03592500 (Superseded to 03592543)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.70

02457400

40

IDLER

Part# 02457400 (Superseded to 52007000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.43

03114500

41

SPACER -FLANGED .390X.500X.781

Part# 03114500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $9.34

06405600

42

WSHR-FL-STL .505X.880X.072 PL

Part# 06405600 (Superseded to 06436600)

OEM Warranty Repair Part for Ariens

Not available
