835029 - Ariens 36" Two Stage Sno-Thro Attachment (SN: 000101 & Above) Sno-Thro PTO And Carriage Parts Diagram

36" Two Stage Sno-Thro Attachment

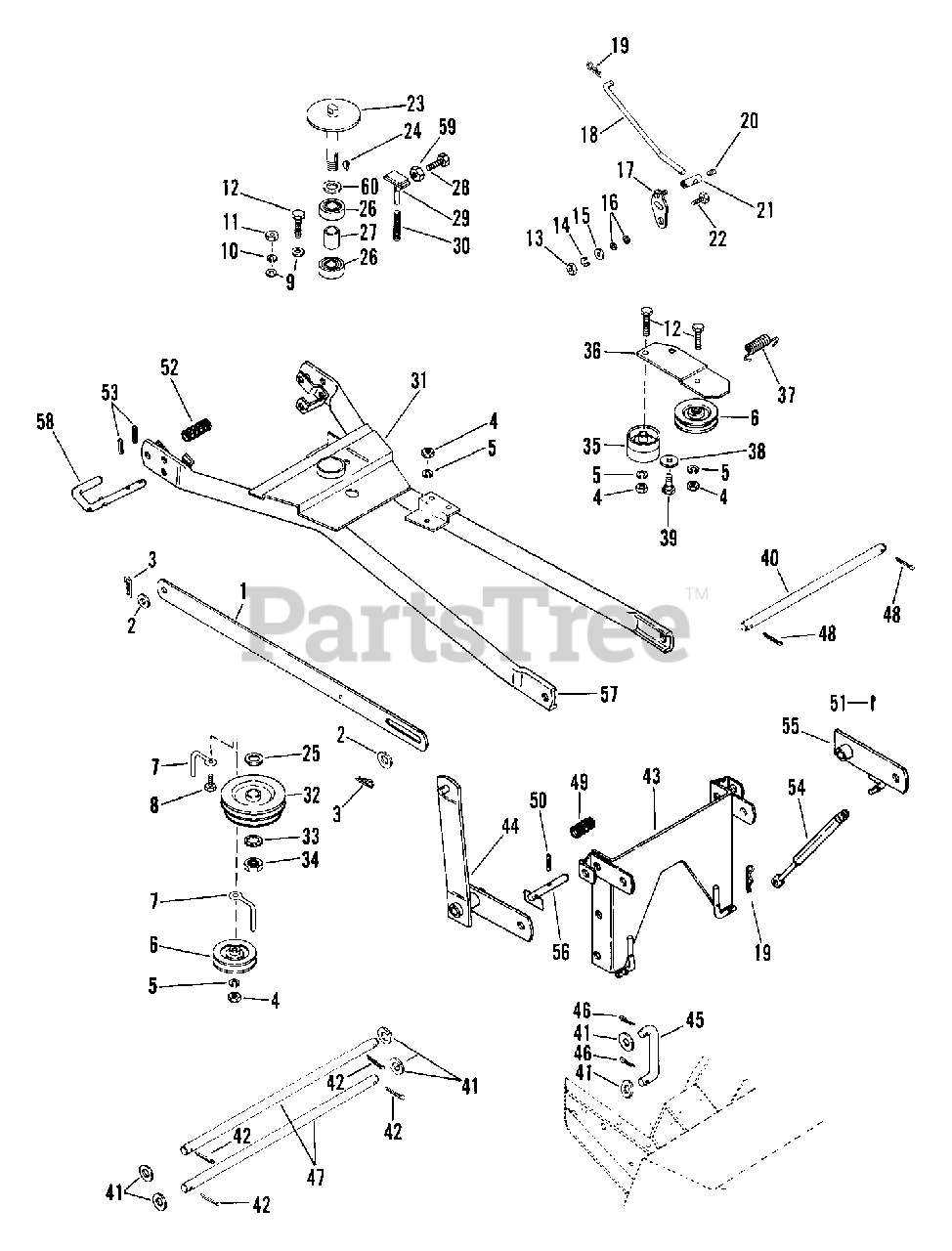

Sno-Thro PTO And Carriage Parts Diagram

  • Title

1

Ariens 03592000

LIFT STRAP

$

$

Not available

2

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0

4

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 7

0

5

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, Qty 10

0

6

Ariens 07310900

IDLER-V 3.06 X .38

$23.99

$

Usually ships in 4-12 days

0

7

Ariens 03175500

BELT FINGER

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, only 4 left!

0

9

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 3 left!

0

11

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 14

0

12

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, only 3 left!

0

13

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 7

0

14

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

15

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 8

0

16

Ariens 06409400

WSHR-FL-STL .265X.500X.087 PL
(Superseded to 06439500)

$1.49

$

In Stock, only 1 left!

0

17

Ariens 03517400

BRAKE ACTUATOR

$

$

Not available

18

Ariens 03517400

BRAKE ACTUATOR

$

$

Not available

19

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 14

0

20

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

21

Ariens 02213500

ROD ADAPTER

$38.99

$

Usually ships in 4-12 days

0

22

Ariens 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 10

0

23

Ariens 03517800

SPINDLE SHAFT

$

$

Not available

24

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

25

Ariens 06410800

WSHR-FL-STL .781X1.250X.059 PL
(Superseded to 06416700)

$

$

Not available

26

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 20+

0

27

Ariens 03517300

SPACER .765X1.000X1.252

$

$

Not available

28

Ariens 05930100

SCR-SKH 10-24X1.25

$

$

Not available

29

Ariens 03517600

PLUNGER
(Superseded to 03598600)

$39.99

$

Usually ships in 4-12 days

0

30

Ariens 08301500

SG-COMP ??X.44X?? WLD 10

$5.99

$

Usually ships in 4-12 days

0

31

Ariens 03517200

SPINDLE HOUSING

$

$

Not available

32

Ariens 03517900

DOUBLE SHEAVE

$

$

Not available

33

Ariens 06302700

WSHR-LK-INT .750X.050 MED
(Superseded to 06310800)

$1.49

$

Usually ships in 4-12 days

0

34

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, Qty 18

0

35

Ariens 07310800

IDLER-FLAT 2.25 X .38

$34.99

$

In Stock, only 2 left!

0

36

Ariens 03589400

IDLER ARM
(Superseded to 03589443)

$

$

Not available

37

Ariens 08318600

SG-TENS .080X.73X3.06 WLD 20

$

$

Not available

38

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 20+

0

39

Ariens 00411500

SHOULDER BOLT .50 X .281
(Superseded to 07000034)

$3.99

$

In Stock, Qty 7

0

40

Ariens 03589500

MOUNT ROD

$

$

Not available

41

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

In Stock, Qty 15

0

42

Ariens 06700500

PIN-COTR .15X1.50
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

43

Ariens 03589000

PIVOT FRAME

$

$

Not available

44

Ariens 03589600

LIFT BELLCRANK

$

$

Not available

45

Ariens 03519900

LIFT LINK

$

$

Not available

46

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

47

Ariens 03508300

PIVOT ROD

$

$

Not available

48

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

49

Ariens 08326000

SG-COMP .072X.77X1.75

$

$

Not available

50

Ariens 05805800

PIN-ROLL .125X.88

$

$

Not available

51

Ariens 06700200

PIN-COTR .09X1.0 PL

$0.99

$

Usually ships in 4-12 days

0

52

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

53

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 9

0

54

Ariens 08326100

SG-GAS COMP .315X.75X10.00 120

$

$

Not available

55

Ariens 03591700

LIFT LEVER

$

$

Not available

56

Ariens 03592200

HITCH PIN

$

$

Not available

57

Ariens 03589200

CARRIAGE FRAME

$

$

Not available

58

Ariens 03584700

LATCH PIN

$

$

Not available

59

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

60

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0
