8354 (54AO85A-710) - Cub Cadet Compact Tractor Bonnet 1 Group Parts Diagram

Compact Tractor

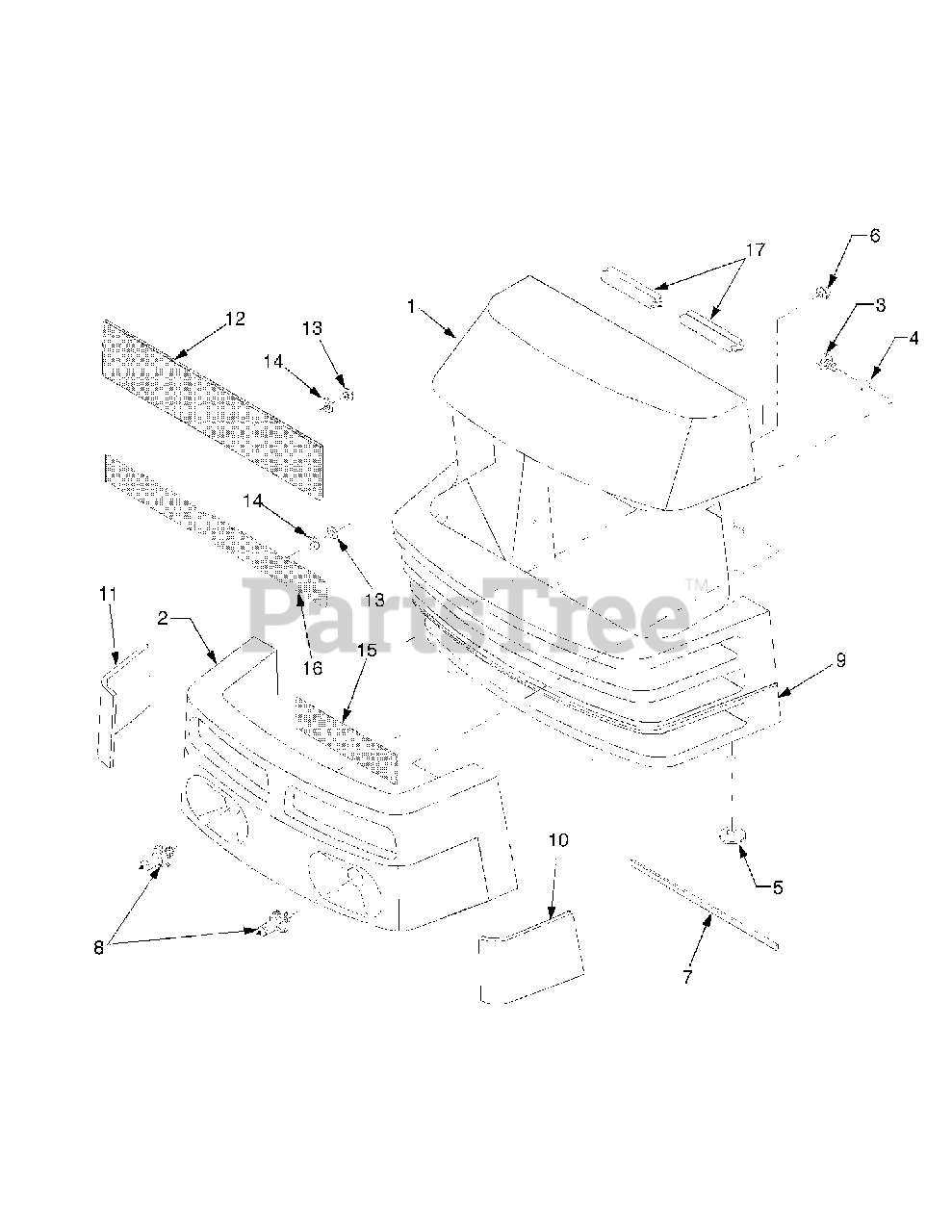

Bonnet 1 Group Parts Diagram

  • Title

1

Cub Cadet DDT462050505BE

Front Grill Ass'y
(Superseded to DDT462050505OE)

Note: Incl. Ref No. 9

$707.99

$

Usually ships in 3-6 days

0

2

Cub Cadet DDT462050533BE

Head Lamp Ass'y
(Superseded to DDT462050533SBE)

Note: Replaces DD-T4620-50533, Incl. Ref 10 & 11

$735.99

$

Usually ships in 3-6 days

0

3

Cub Cadet DD-01023-50614

Bolt

$3.49

$

Usually ships in 3-6 days

0

4

Cub Cadet DD-04015-50060

Washer, Plain

$4.49

$

In Stock, only 1 left!

0

5

Cub Cadet DD-T4620-50592

Rubber, Cushion

$

$

Not available

6

Cub Cadet DD-02751-50060

Nut, Flange

$2.99

$

In Stock, only 4 left!

0

7

Cub Cadet DD-T4620-50582

Cushion, Front Grill

$27.99

$

Usually ships in 3-6 days

0

8

Cub Cadet DD-T4620-69241

Bulb

$

$

Not available

9

Cub Cadet DD-T4620-50522

Grill, Front

$

$

Not available

10

Cub Cadet DDT462050531003

Cover, Head Light Side (LH)

$

$

Not available

11

Cub Cadet DDT462050531004

Cover, Head Light Side (RH)

$

$

Not available

12

Cub Cadet DD-T4620-50542

Screen, Front Grill (Upper)

$

$

Not available

13

Cub Cadet DD-T4620-50701

Plate, Lock

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet DD-82KC-0641

Cushion

$

$

Not available

15

Cub Cadet DD-T4620-50522

Screen, Front Grill (Lower)

$

$

Not available

16

Cub Cadet DD-T4620-50552

Screen, Front Grill (Lower)

$

$

Not available

17

Cub Cadet DD-T4620-50731

Rubber

$

$

Not available
