8354 (54AY85A-710) - Cub Cadet Compact Tractor Rear Differential System Parts Diagram

Compact Tractor

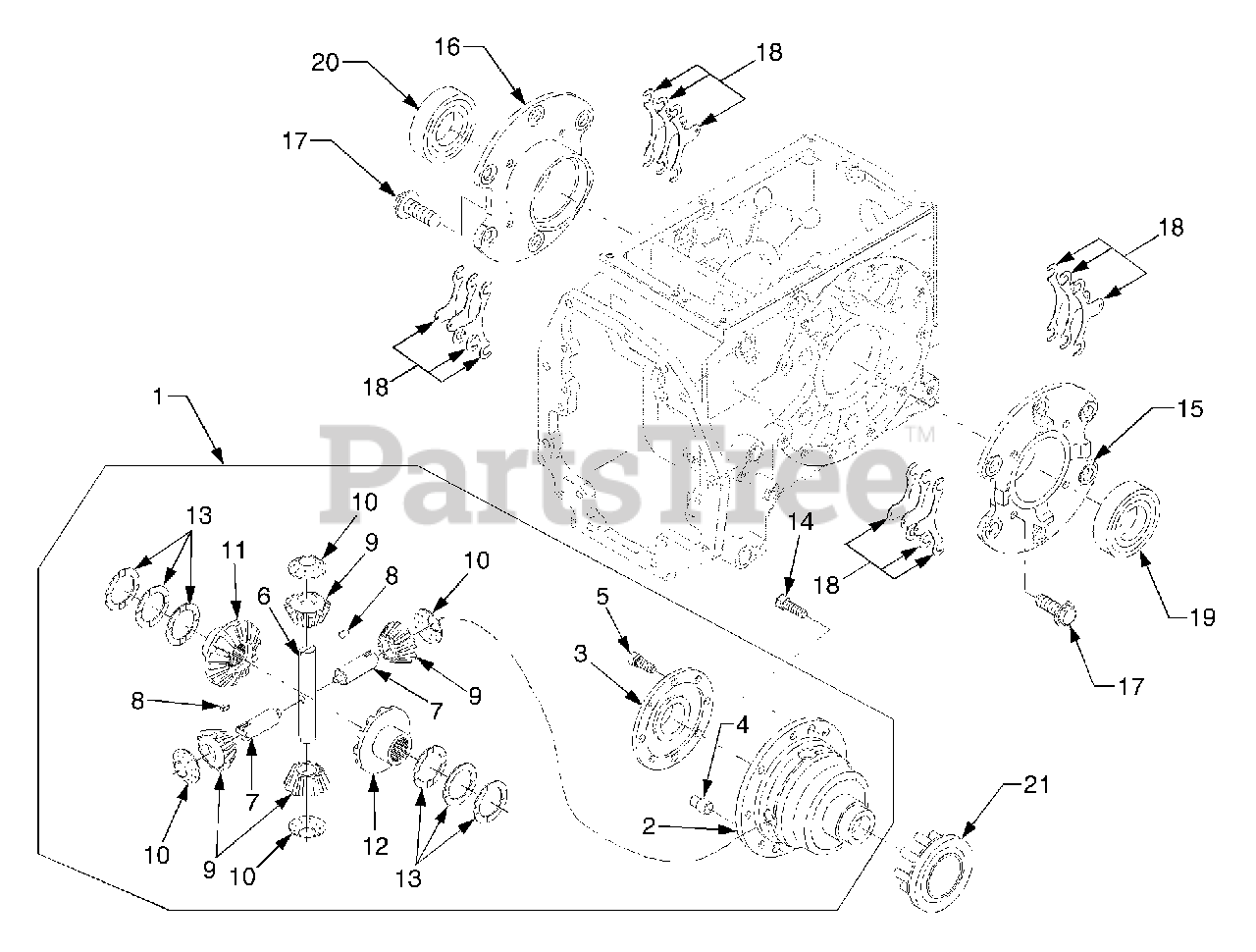

Rear Differential System Parts Diagram

  • Title
1

Cub Cadet DD-T4620-26102

Differential System

$

$

Not available

2

Cub Cadet DD-38240-26515

Case, Differential System

$

$

Not available

$

$

Not available

4

Cub Cadet DD-37300-28172

Pin, Straight

$

$

Not available

$

$

Not available

6

Cub Cadet DD-38430-26343

Shaft, 1 Differential Pinion

$

$

Not available

7

Cub Cadet DD-38430-26333

Shaft, 2 Differential Pinion

$

$

Not available

$

$

Not available

9

Cub Cadet DD-T2240-26353

Pinion, Differential

$

$

Not available

10

Cub Cadet DD-31220-26392

Washer, Differential Pinion

$

$

Not available

11

Cub Cadet DD-37300-26432

Gear, Differential Side (RH)

$

$

Not available

12

Cub Cadet DD-37300-26442

Gear, Differential Side (LH)

$

$

Not available

13

Cub Cadet DD-38240-26472

Washer, Differential (1.7)

$

$

Not available

Cub Cadet DD-37300-26481

Washer, Differential (1.5)

$

$

Not available

Cub Cadet DD-37300-26491

Washer, Differential (1.6)

$

$

Not available

$

$

Not available

15

Cub Cadet DD-T4620-26561

Case, Differential Bearing (LH)

$

$

Not available

16

Cub Cadet DD-T4620-26551

Case, Differential Bearing (RH)

$

$

Not available

$

$

Not available

18

$

$

Not available

$

$

Not available

$

$

Not available

19

Cub Cadet DD-08711-30209

Bearing, Taper Roller

$

$

Not available

20

Cub Cadet DD-08711-32011

Bearing, Taper Roller

$

$

Not available

21

Cub Cadet DD-37300-26614

Shift, Differential Lock

$

$

Not available
