836 B (129-836B100) - Cub Cadet Walk-Behind Mower Engine (1989) B&S 4 HP 110702-0285-02 Part 1 Parts Diagram

Walk-Behind Mower Engine

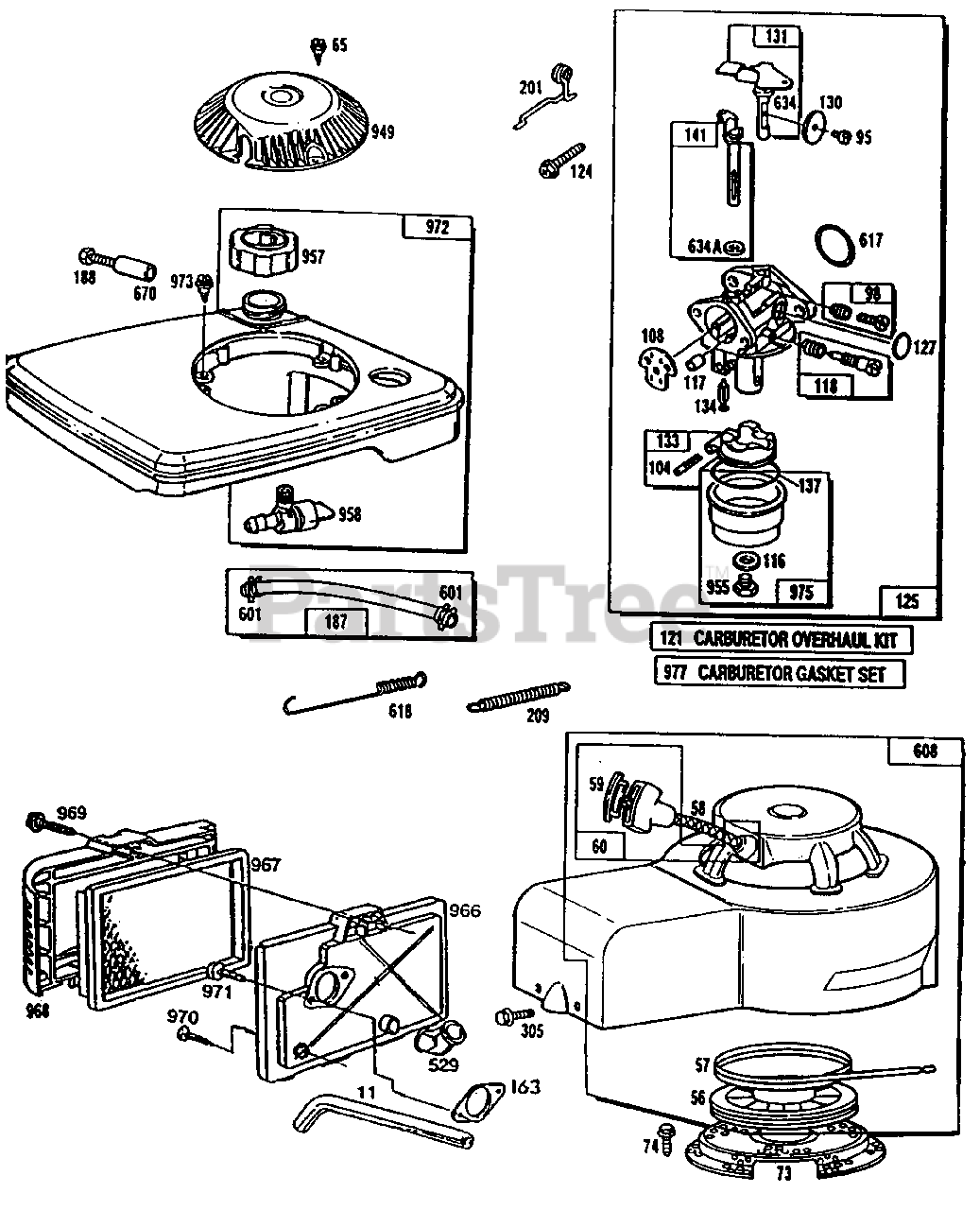

B&S 4 HP 110702-0285-02 Part 1 Parts Diagram

  • Title

11

Cub Cadet BS-231392

Tube Breather

$9.99

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-280439

Pulley Starter
(Superseded to BS-280439S)

$12.99

$

In Stock, only 1 left!

0

57

Cub Cadet BS-490179

Spring Rewind Starter

$14.99

$

In Stock, Qty 10

0

58

Cub Cadet BS-280406

Rope Rewind Starter
(Superseded to BS-280406S)

$8.49

$

In Stock, only 2 left!

0

59

Cub Cadet BS-396892

Insert Starter Grip

$5.49

$

In Stock, only 2 left!

0

60

Cub Cadet BS-393152

Grip Starer Rope

$4.99

$

In Stock, only 3 left!

0

65

Cub Cadet BS-94058

Screw Guard Mounting

$3.99

$

Usually ships in 2-12 days

0

73

Cub Cadet BS-221661

Screen Starter Pulley
(Superseded to BS-691725)

$

$

Not available

74

Cub Cadet BS-93490

Screw Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

95

Cub Cadet BS-94098

Screw Throttle Valve Mounting Sem
(Superseded to BS-691636)

$3.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-398185

Screw Idle Adjustment

$7.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-231371

Pin Float Hinge
(Superseded to BS-797622)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$3.99

$

In Stock, only 1 left!

0

108

Cub Cadet BS-223471

Valve Choke
(Superseded to BS-691182)

$9.49

$

Usually ships in 2-12 days

0

116

Gasket Sealing (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

117

Jet (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

118

Cub Cadet BS-492945

Valve and Spring Needle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

121

Cub Cadet BS-492495

Carburetor Overhaul Kit
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0

124

Cub Cadet BS-94119

Screw Carburetor Mtg.

$

$

Currently unavailable

125

Cub Cadet BS-492588

Carburetor Assembly

$112.99

$

Usually ships in 2-12 days

0

127

Plug Welch (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

130

Cub Cadet BS-223470

Valve Throttle

$

$

Not available

131

Cub Cadet BS-491333

Shaft and Lever Throttle

$6.49

$

Usually ships in 2-12 days

0

133

Cub Cadet BS-398187

Float Ass'y. Carburetor

$9.99

$

In Stock, Qty 7

0

134

Cub Cadet BS-398188

Valve Inlet (Includes Seat)

$6.49

$

In Stock, Qty 20+

0

137

Gasket Bowl (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

141

Cub Cadet BS-492834

Shaft Choke

$

$

Currently unavailable

163

Cub Cadet BS-271840

Gasket Air Cleaner

$

$

Not available

187

Cub Cadet BS-393815

Hose Fuel

$11.99

$

In Stock, only 1 left!

0

188

Cub Cadet BS-398540

Screw Fuel Tank and Starter Mounting (Includes Washer)
(Superseded to BS-692311)

$7.49

$

In Stock, Qty 10

0

201

Cub Cadet BS-262365

Link Governor

$22.99

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-260877

Spring Governor

$7.99

$

Usually ships in 2-12 days

0

305

Cub Cadet BS-94153

Screw Blower Housing Mounting Sem

$

$

Not available

529

Cub Cadet BS-280524

Grommet Breather

$8.49

$

Usually ships in 2-12 days

0

601

Cub Cadet BS-93053

Clamp Hoseose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

608

Cub Cadet BS-398378

Starter Ass'y. Rewind

$67.99

$

Usually ships in 2-12 days

0

617

Cub Cadet BS-270344

Seal Fuel Intake Tube
(Superseded to BS-270344S)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$3.49

$

In Stock, Qty 20+

0

618

Cub Cadet BS-260870

Spring Choke

$2.99

$

In Stock, Qty 9

0

634

Washer Throttle Shaft (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

634A

Seal Choke (Sold in Kit Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

670

Cub Cadet BS-280512

Spacer Fuel Tank
(Superseded to BS-692294)

$4.99

$

In Stock, Qty 12

0

949

Cub Cadet BS-280502

Cover Static-Gard

$30.99

$

Usually ships in 2-12 days

0

955

Cub Cadet BS-231373

Screw Bowl Mtg.

$

$

Currently unavailable

957

Cub Cadet BS-397974

Cap Assembly Fuel
(Superseded to BS-796577)

$16.99

$

In Stock, Qty 11

0

958

Cub Cadet BS-399517

Valve Fuel Shut-Off
(Superseded to BS-698182)

$

$

Not available

966

Cub Cadet BS-399059

Base Air Cleaner

$

$

Not available

967

Cub Cadet BS-397795

Filter Air

$

$

Not available

968

Cub Cadet BS-280501

Cover Air Cleaner

$23.99

$

Usually ships in 2-12 days

0

969

Cub Cadet BS-94120

Screw Cover Mtg.
(Superseded to BS-690670)

$5.99

$

Usually ships in 2-12 days

0

970

Cub Cadet BS-94118

Screw Hex Hd.

$

$

Not available

971

Cub Cadet BS-94121

Screw Air Cleaner
(Superseded to BS-692523)

$7.49

$

In Stock, Qty 10

0

972

Cub Cadet BS-490622

Tank Assembly Fuel

$70.99

$

Usually ships in 2-12 days

0

973

Cub Cadet BS-94114

Screw Hex Hd.

$3.99

$

In Stock, only 3 left!

0

975

Cub Cadet BS-398191

Bowl Assembly Carburetor

$

$

Not available

977

Cub Cadet BS-490937

Gasket Set Carburetor
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0
