836003 - Ariens 40" 3-Bucket Grass Bagger (SN: 000101 & Above) BAGGER VAC CHUTE Parts Diagram

40" 3-Bucket Grass Bagger

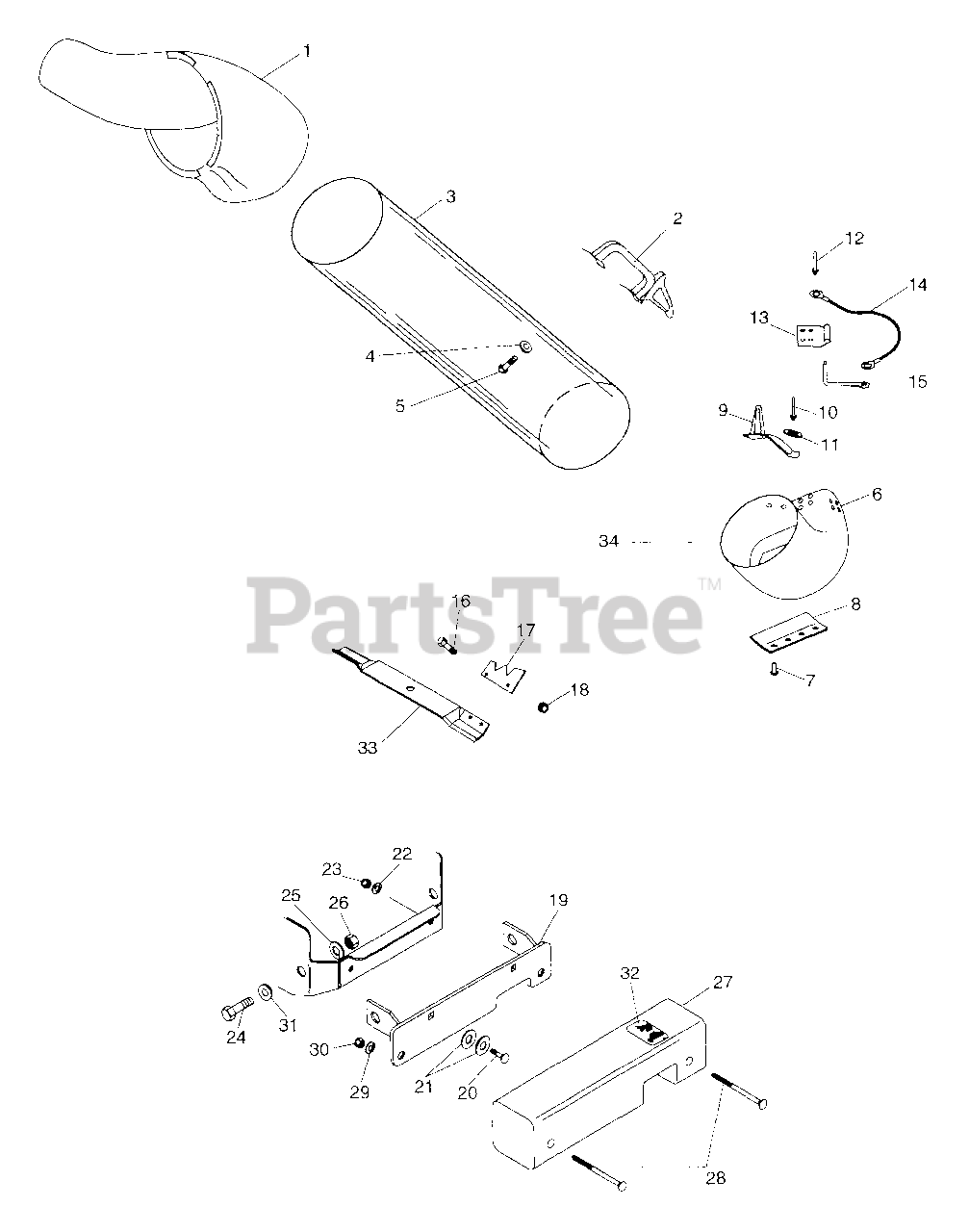

BAGGER VAC CHUTE Parts Diagram

  • Title

1

Ariens 03610700

BAGGER BOOT

$

$

Not available

2

Ariens 02746600

TUBE HANDLE

$

$

Not available

3

Ariens 03618000

BAGGER TUBE

$

$

Not available

4

Ariens 06406500

WSHR-FL-STL .268X.562X.046 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 15

0

5

Ariens 07403300

SCR-TAP 10-16X .75 HWH PL SD
(Superseded to 07413600)

$

$

Not available

6

Ariens 03610600

PAN BOOT ASSEMBLY
(Superseded to 53602100)

$230.99

$

Usually ships in 4-12 days

0

7

Ariens 06806200

RVT-TBLR .187X.375 OH ST PL

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 02532200

EXTENSION CHUTE

$

$

Not available

9

Ariens 02746200

TUBE RETAINER

$19.99

$

Usually ships in 4-12 days

0

10

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

$1.99

$

Usually ships in 4-12 days

0

12

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 11

0

13

Ariens 02746100

BOOT BRACKET

$17.99

$

Usually ships in 4-12 days

0

14

Ariens 02746400

LANYARD

$21.99

$

Usually ships in 4-12 days

0

15

Ariens 02746300

PULL PIN

$29.99

$

In Stock, only 2 left!

0

16

Ariens 05920600

BLT-HEX .31-24X.75 GR8
(Superseded to 05970500)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 53504600

SERVICE VANE PACKAGE

$52.99

$

Usually ships in 4-12 days

0

18

Ariens 06514500

NUT-LK TOP .312-24 PL GR C

$

$

Not available

19

Ariens 03610800

ADAPTER
(Superseded to 03640300)

$

$

Not available

20

Ariens 06202900

BLT-RDHDSQNK .38-16X1.0 PL
(Superseded to 06223600)

$2.49

$

In Stock, Qty 20+

0

21

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

22

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 19

0

23

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

24

Ariens 05939200

BLT-HEX .62-11X1.25 PL GR5
(Superseded to 05971600)

$

$

Not available

25

Ariens 06300700

WSHR-LK .625X.156 MED PL
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

26

Ariens 06500700

NUT-HEX .625-11
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

27

Ariens 03611600

COUNTER WEIGHT
(Superseded to 03640251)

$387.99

$

Usually ships in 4-12 days

0

28

Ariens 06210400

BLT-RDHDSQNK .44-14X4.50 PL

$

$

Not available

29

Ariens 06304000

WSHR-LK-INT .438 YWZC

$3.99

$

Usually ships in 4-12 days

0

30

Ariens 06503500

@NUT-HEX .44-14 YWZC

$3.49

$

In Stock, only 4 left!

0

31

Ariens 06400400

WSHR-FL-STL.656X1.312X.095 PL
(Superseded to 06442800)

$2.49

$

In Stock, Qty 20+

0

32

Ariens 07843200

DECAL- HOT SURFACE SYMB.
(Superseded to 07754100)

$3.49

$

In Stock, only 3 left!

0

33

Ariens 03607000

MOWER BLADE
(Superseded to 03624700)

$29.99

$

In Stock, only 2 left!

0

34

Ariens 53600700

MOWER BOOT ASSY- 40"
(Superseded to 53602100)

$230.99

$

Usually ships in 4-12 days

0
