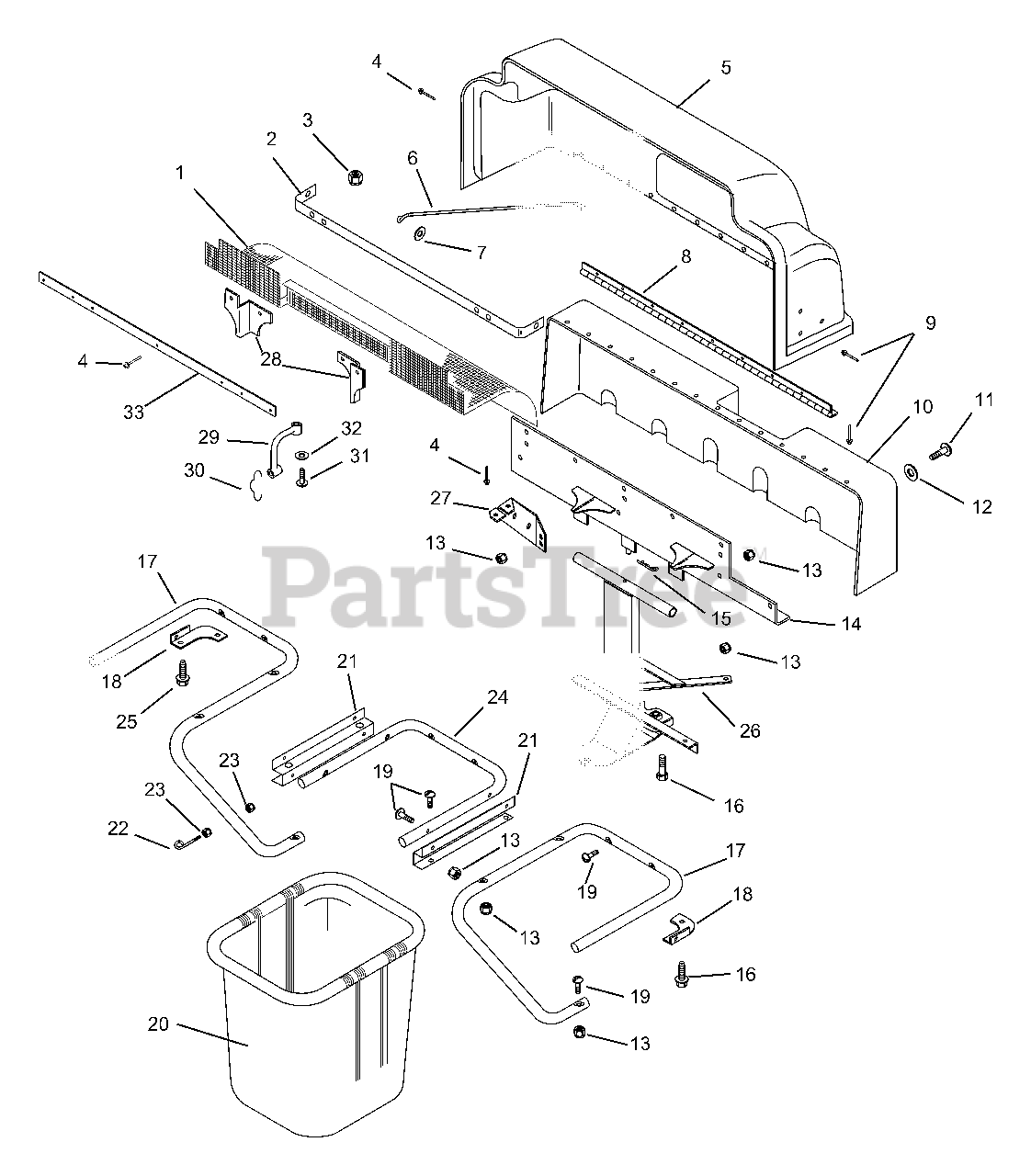

836008 - Ariens 40" 3-Bucket Grass Bagger (SN: 000101 & Above) > Parts Diagrams (3) > Bagger Assembly

  • Title
03325500

1

SCREEN

Part# 03325500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

03325400

2

SCREEN MOUNTING BRACKET

Part# 03325400

OEM Warranty Repair Part for Ariens

Not available

06536000

3

@NUT-LK-NYL 10-24 W/INSRT YWZC

Part# 06536000

OEM Warranty Repair Part for Ariens

Not available

06803800

4

RVT-POP.187X.527 DOME ST

Part# 06803800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

53600100

5

HINGED COVER W/DECALS

Part# 53600100

OEM Warranty Repair Part for Ariens

Not available

03552900

6

BRACE

Part# 03552900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06444400

7

@WSHR-FL-STL .188X.438X.049 YZ

Part# 06444400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

03325200

8

HINGE- 2.0"X35.0"

Part# 03325200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $51.37

06802500

9

RVT-POP .187X.402 DOME ST

Part# 06802500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

53506700

10

STATIONARY COVER

Part# 53506700

OEM Warranty Repair Part for Ariens

Not available

05947000

11

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06439400

12

WSHR-FL-STL .328X.875X.062YWZC

Part# 06439400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06529800

13

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03586200

14

MOUNTING BRACKET

Part# 03586200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06701000

15

PIN-HAIR INT .08X.38X1.42 YWZC

Part# 06701000

OEM Warranty Repair Part for Ariens

Not available

05958900

16

@BLT-HEX .50-13X1.25 GR5 YWZC

Part# 05958900

OEM Warranty Repair Part for Ariens

Not available

03610400

17

RIGHT TUBE

Part# 03610400 (Superseded to 03610451)

OEM Warranty Repair Part for Ariens

Not available

03610500

17

LEFT TUBE

Part# 03610500 (Superseded to 03610551)

OEM Warranty Repair Part for Ariens

Not available

02725000

18

RH CORNER BRACKET

Part# 02725000

OEM Warranty Repair Part for Ariens

Not available

02725100

18

LH CORNER BRACKET

Part# 02725100

OEM Warranty Repair Part for Ariens

Not available

06105200

19

SCR-MCH .31-18X1.50 CROVCNTRS

Part# 06105200 (Superseded to 06119100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02724400

20

GRASS BAGGER BASKET

Part# 02724400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $94.97

02724700

21

TUBE BRACKET

Part# 02724700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

02432700

22

EYEBOLT

Part# 02432700 (Superseded to 02440100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06529700

23

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

02724600

24

CENTER TUBE

Part# 02724600 (Superseded to 02724651)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $43.43

07411500

25

@SCR-TAP .31-18X.50 HWH TR YWZ

Part# 07411500 (Superseded to 07400124)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

03608900

26

BAGGER FRAME

Part# 03608900

OEM Warranty Repair Part for Ariens

Not available

02725200

27

BRACE

Part# 02725200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03326900

28

BAFFLE LH

Part# 03326900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03327000

28

BAFFLE RH

Part# 03327000

OEM Warranty Repair Part for Ariens

Not available

07507500

29

BATTERY STRAP

Part# 07507500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

02738100

30

HOOK

Part# 02738100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06118500

31

@SCR-MCH 10-24X1.00 HWH YWZC

Part# 06118500

OEM Warranty Repair Part for Ariens

Not available

06442700

32

@WSHR-FL-STL.219X.50X.049 YWZC

Part# 06442700

OEM Warranty Repair Part for Ariens

Not available

00429751

33

GUARD - SCREEN

Part# 00429751

OEM Warranty Repair Part for Ariens

Not available
