836008 - Ariens 40" 3-Bucket Grass Bagger (SN: 000101 & Above)

40" 3-Bucket Grass Bagger

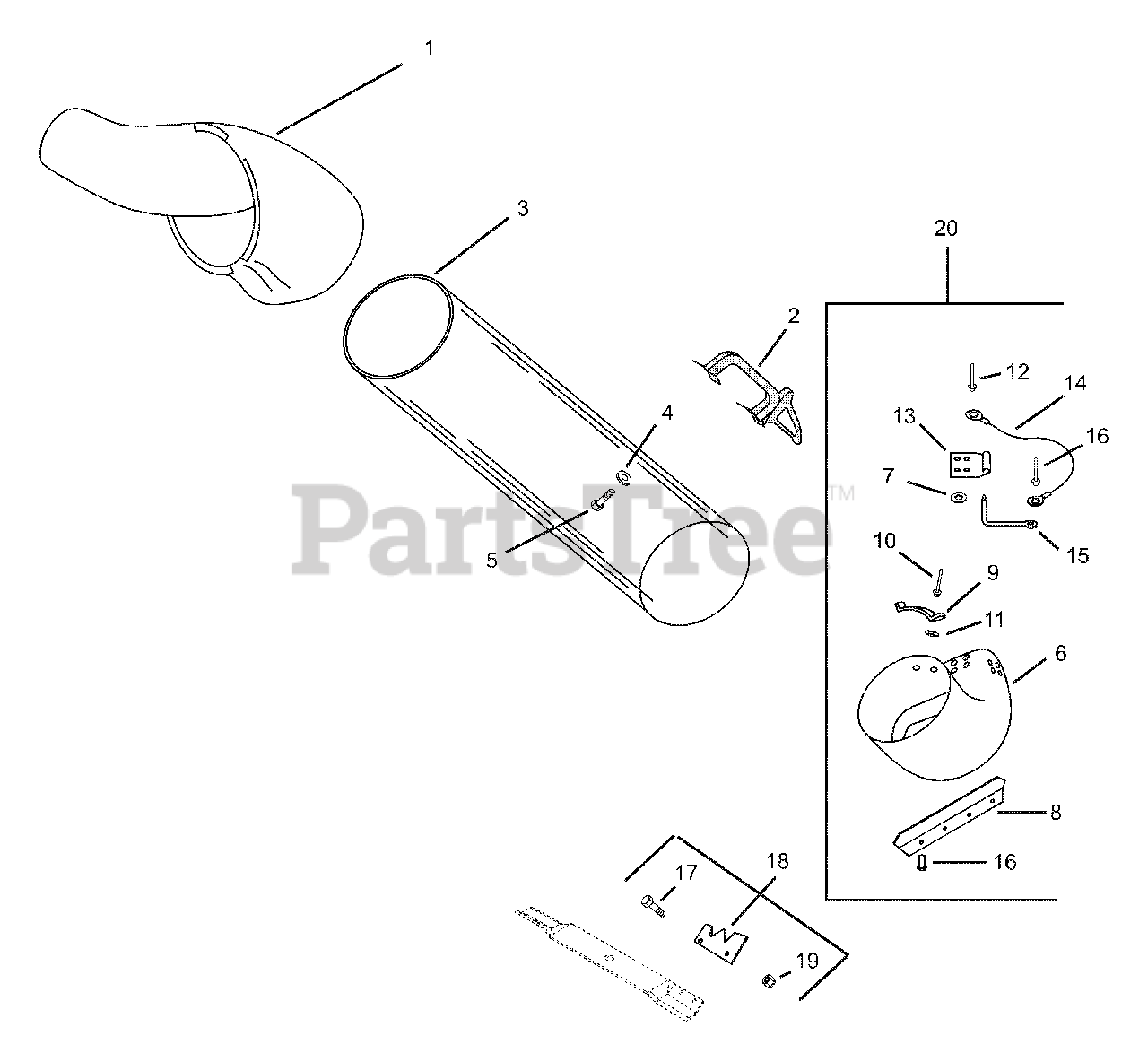

836008 - Ariens 40" 3-Bucket Grass Bagger (SN: 000101 & Above) > Parts Diagrams (3) > Tubes, Boots, & Vanes

  • Title
03610700

1

BAGGER BOOT

Part# 03610700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $133.04

02746600

2

TUBE HANDLE

Part# 02746600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

03618000

3

BAGGER TUBE

Part# 03618000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $229.77

06437300

4

@WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07413000

5

SCR-TAP 10-24X.75 HWH TR YWZC

Part# 07413000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03640400

6

PAN BOOT ASSEMBLY

Part# 03640400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

06442700

7

@WSHR-FL-STL.219X.50X.049 YWZC

Part# 06442700

OEM Warranty Repair Part for Ariens

Not available

03640100

8

EXTENSION-CHUTE

Part# 03640100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

02750600

9

TUBE RETAINER CLIP

Part# 02750600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06803800

10

RVT-POP.187X.527 DOME ST

Part# 06803800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06442700

11

@WSHR-FL-STL.219X.50X.049 YWZC

Part# 06442700

OEM Warranty Repair Part for Ariens

Not available

06802500

12

RVT-POP .187X.402 DOME ST

Part# 06802500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

02746100

13

BOOT BRACKET

Part# 02746100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02746400

14

LANYARD

Part# 02746400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

02746300

15

PULL PIN

Part# 02746300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06807200

16

RVT-TBLR .187X.375 ST-AL PL

Part# 06807200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

05970500

17

BLT-HEX .31-24X.75 GR8 YWZC

Part# 05970500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

53504600

18

SERVICE VANE PACKAGE

Part# 53504600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

06537000

19

NUT-CTRLK .31-24 YWZC

Part# 06537000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

53602100

20

MOWER BOOT ASSY- 40"

Part# 53602100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $156.46
