836008 - Gravely 40" Bagger (SN: 000101 & Above) Bagger Assembly Parts Diagram

40" Bagger

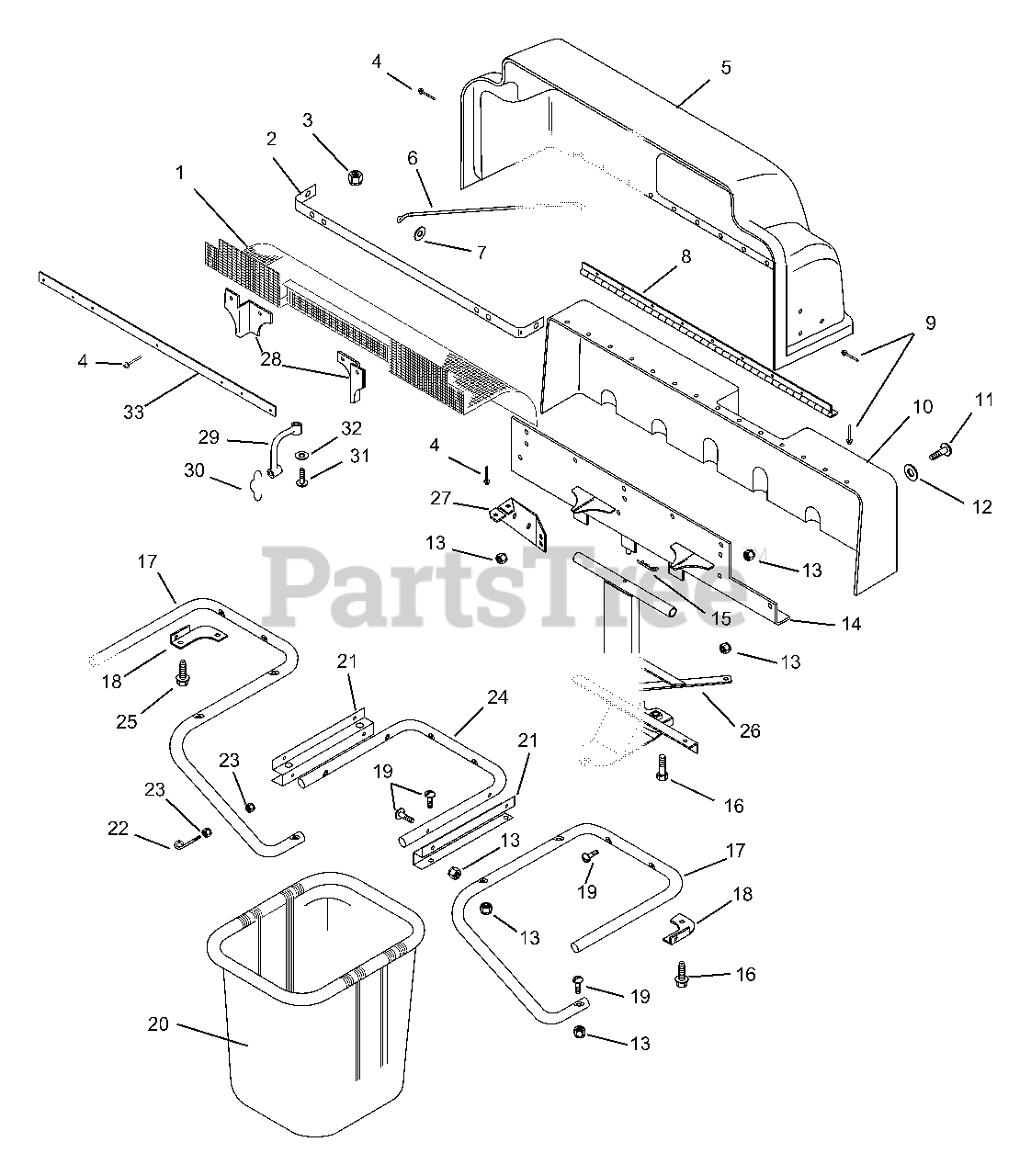

Bagger Assembly Parts Diagram

  • Title

1

Gravely 041095

SCREEN
(Superseded to 03325500)

$

$

Not available

2

Gravely 045462

SCREEN MOUNTING BRACKET
(Superseded to 03325400)

$

$

Not available

3

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 041098

RVT-POP.187X.527 DOME ST
(Superseded to 06803800)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 53600100

HINGED COVER W/DECALS

$

$

Not available

6

Gravely 041097

BRACE
(Superseded to 03552900)

$

$

Not available

7

Gravely 06444400

WSHR-FL-STL .188X.438X.049 YZ

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 03325200

HINGE- 2.0"X35.0"

$

$

Not available

9

Gravely 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 9

0

10

Gravely 050353

STATIONARY COVER
(Superseded to 53506700)

$

$

Not available

11

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 050354

MOUNTING BRACKET
(Superseded to 03586200)

$

$

Not available

15

Gravely 036075

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 2 left!

0

16

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

17

Gravely 03610400

RIGHT TUBE
(Superseded to 03610451)

$

$

Not available

Gravely 03610500

LEFT TUBE
(Superseded to 03610551)

$

$

Not available

18

Gravely 041089

RH CORNER BRACKET
(Superseded to 02725000)

$

$

Not available

Gravely 041090

LH CORNER BRACKET
(Superseded to 02725100)

$

$

Not available

19

Gravely 035809

SCR-MCH .31-18 X 1.50 YWZC
(Superseded to 06119100)

$

$

Not available

20

Gravely 038328

GRASS BAGGER BASKET
(Superseded to 02724400)

$81.99

$

In Stock, only 4 left!

0

21

Gravely 038323

TUBE BRACKET
(Superseded to 02724700)

$

$

Not available

22

Gravely 02432700

EYEBOLT
(Superseded to 02440100)

$11.99

$

Usually ships in 4-12 days

0

23

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 038325

CENTER TUBE
(Superseded to 02724651)

$

$

Not available

25

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 03608900

BAGGER FRAME

$

$

Not available

27

Gravely 041092

BRACE
(Superseded to 02725200)

$

$

Not available

28

Gravely 041099

BAFFLE LH
(Superseded to 03326900)

$5.99

$

Usually ships in 4-12 days

0

Gravely 041100

BAFFLE RH
(Superseded to 03327000)

$

$

Not available

29

Gravely 035829

BATTERY STRAP
(Superseded to 07507500)

$15.99

$

Usually ships in 4-12 days

0

30

Gravely 035830

HOOK
(Superseded to 02738100)

$7.49

$

In Stock, only 4 left!

0

31

Gravely 06118500

SCR-MCH 10-24X1.00 HWH YWZC
(Superseded to 05901838)

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

33

Gravely 00429751

GUARD - SCREEN

$

$

Not available
