836008 - Gravely 40" Bagger (SN: 000101 & Above) Tubes, Boots, & Vanes Parts Diagram

40" Bagger

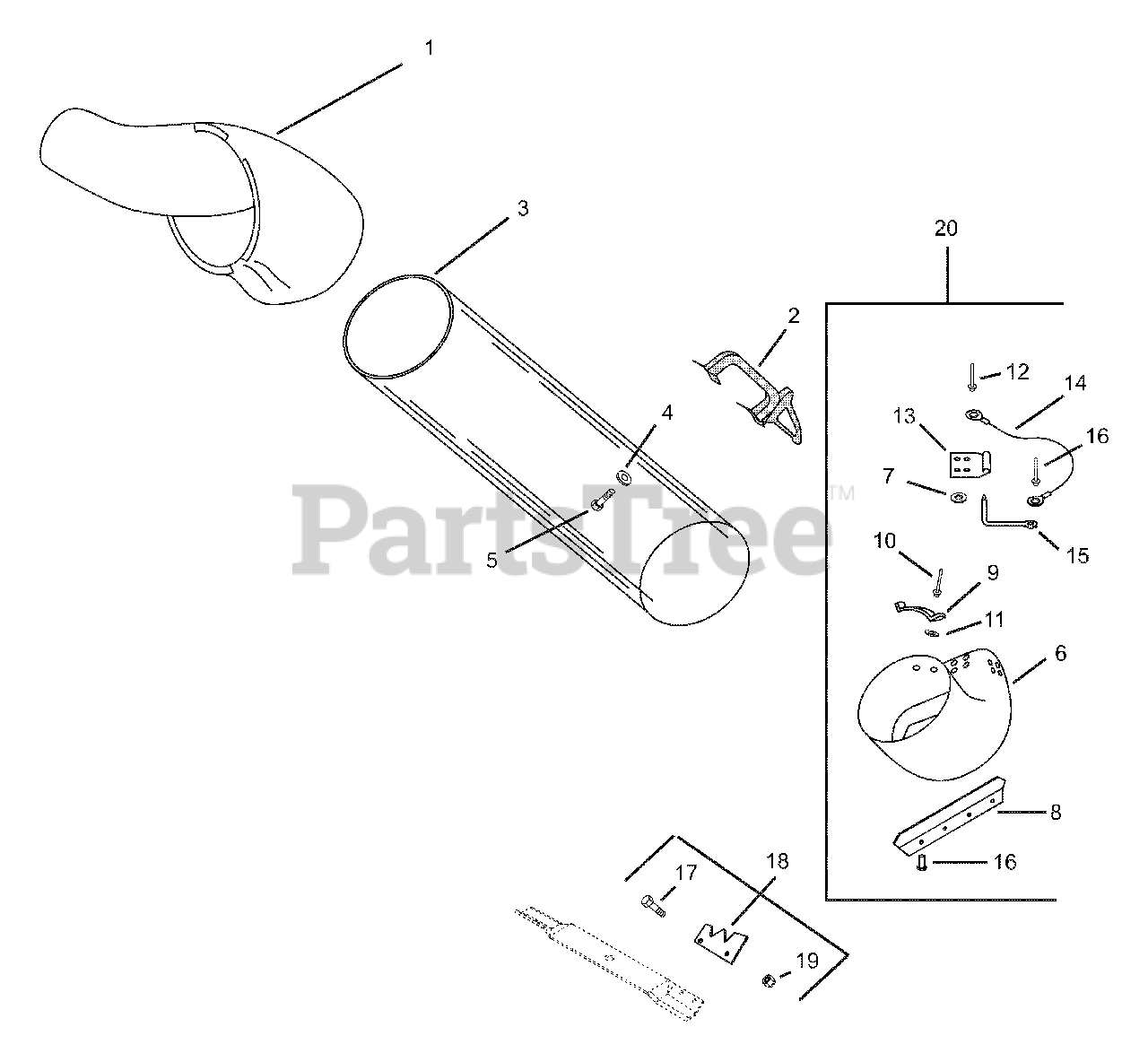

Tubes, Boots, & Vanes Parts Diagram

  • Title

1

Gravely 03610700

Upper Boot

$

$

Not available

2

Gravely 050359

Tub Handle
(Superseded to 02746600)

$

$

Not available

3

Gravely 03618000

Bagger Tube

$

$

Not available

4

Gravely 06437300

Washer-Flat-Steel .268 x .562 x .046
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

5

Gravely 07413000

Screw-Tapping 10-16 x .75
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

6

Gravely 03640400

Pan Head Boot Assembly

$

$

Not available

7

Gravely 06442700

Washer-Flat-Steel .194 x .492 x .047
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

8

Gravely 03640100

Extension-Chute

$50.99

$

Usually ships in 4-12 days

0

9

Gravely 050360

Tube Retainer Clip
(Superseded to 02750600)

$17.99

$

Usually ships in 4-12 days

0

10

Gravely 041098

Rivet-Pop .187 x .527
(Superseded to 06803800)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06442700

Washer-Flat-Steel .215 x .56 x .085
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 11

0

13

Gravely 050363

Boot Bracket
(Superseded to 02746100)

$17.99

$

Usually ships in 4-12 days

0

14

Gravely 050369

Lanyard
(Superseded to 02746400)

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 050368

Pull Pin
(Superseded to 02746300)

$29.99

$

In Stock, only 2 left!

0

16

Gravely 06807200

Rivet-Tubular .187 x .375

$

$

Not available

17

Gravely 05970500

Bolt-Hex .31-24 x .75 Grade 8
(Superseded to 05902019)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 035832

Vane Service Assembly
(Superseded to 53504600)

$52.99

$

Usually ships in 4-12 days

0

19

Gravely 06537000

Nut-Locking Top .312-24

$1.49

$

In Stock, only 3 left!

0

20

Gravely 53602100

Mower Boot Assembly - 40"

$230.99

$

Usually ships in 4-12 days

0
