836011 - Gravely 36" Sno-Thro (SN: 000101 & Above) Carriage & Frame Parts Diagram

36" Sno-Thro

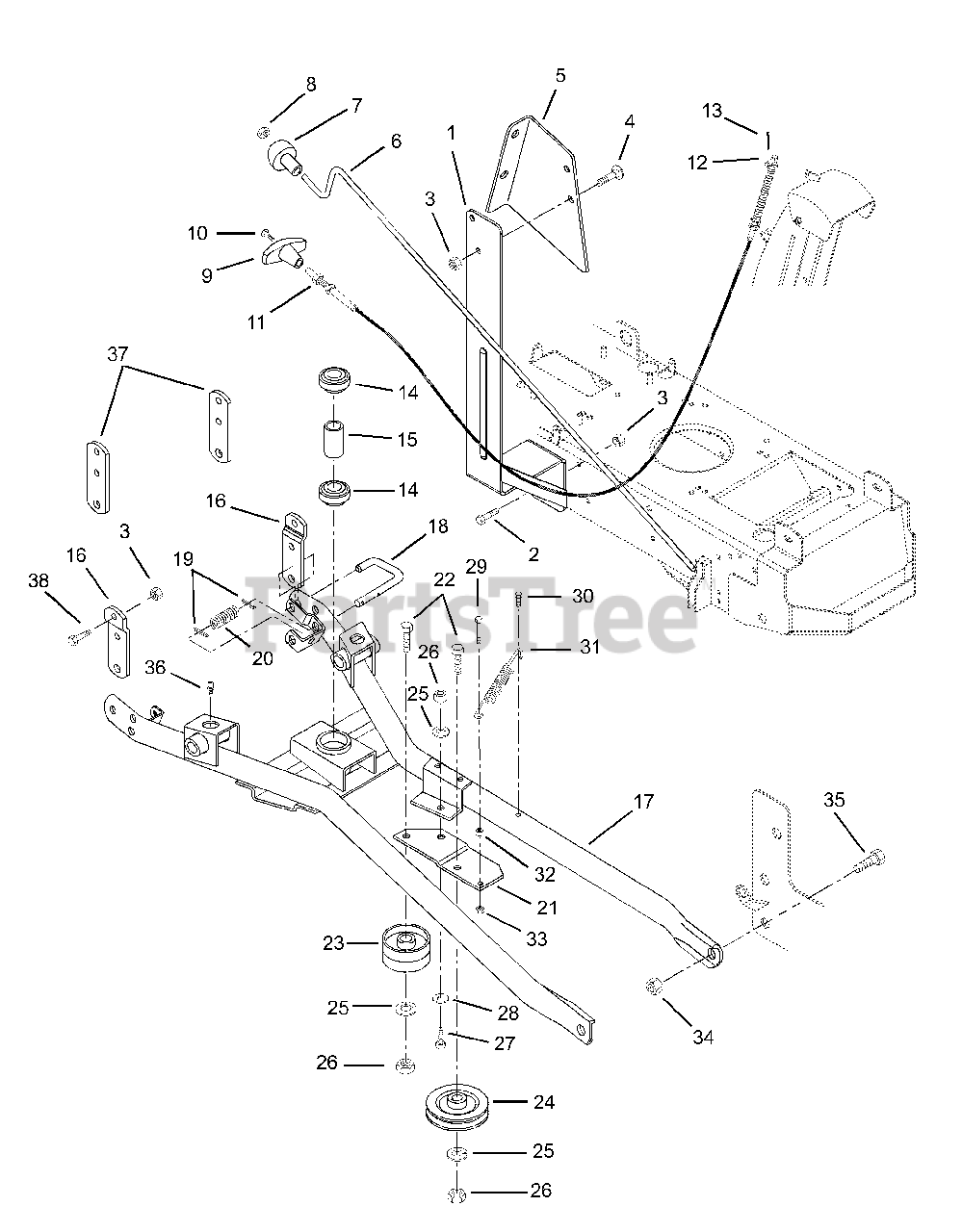

Carriage & Frame Parts Diagram

  • Title

1

Gravely 03339600

SUPPORT - CONTROL BRACKET
(Superseded to 03339643)

$

$

Not available

2

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (Model 834035)

$1.99

$

In Stock, Qty 14

0

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: (Model 836011)

$1.99

$

In Stock, Qty 14

0

3

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (Model 834035)

$1.49

$

In Stock, Qty 20+

0

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (Model 836011)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

5

Gravely 03630400

CONTROL BRACKET
(Superseded to 03630443)

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 049105

CHUTE CONTROL CRANK
(Superseded to 03081900)

$158.99

$

Usually ships in 4-12 days

0

7

Gravely 049106

KNOB
(Superseded to 07509600)

$

$

Not available

8

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 049108

KNOB, CONTROL
(Superseded to 07530800)

$9.99

$

In Stock, only 1 left!

0

10

Gravely 07029300

SCR-MCH 8-32X.75 PN HD YWZC

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06943400

CABLE, CONTROL W/HANDLE/SCREW

$171.99

$

Usually ships in 4-12 days

0

12

Gravely 06917500

PIVOT

$38.99

$

Usually ships in 4-12 days

0

13

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

14

Gravely 035925

BRG-BALL .750X1.781X.61
(Superseded to 05412000)

$15.99

$

In Stock, Qty 20+

0

15

Gravely 036827

SPACER .765X1.000X1.252
(Superseded to 03517300)

$

$

Not available

16

Gravely 03343800

HANGER BRACKET- OFFSET
(Superseded to 03689151)

Note: (Model 834035)

$

$

Not available

17

Gravely 03339100

CARRIAGE FRAME W/ SPINDLE&BRGS
(Superseded to 03339143)

$775.99

$

Usually ships in 4-12 days

0

18

Gravely 051642

LATCH PIN
(Superseded to 03584700)

$

$

Not available

19

Gravely 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 12

0

20

Gravely 051650

SPRG, COMP .058X.65X2.13 WLD15
(Superseded to 08325900)

$

$

Not available

21

Gravely 03589400

IDLER ARM
(Superseded to 03589443)

$

$

Not available

22

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 036247

IDLER-FLAT 2.25 X .38
(Superseded to 07310800)

$35.99

$

In Stock, only 2 left!

0

24

Gravely 07310900

IDLER-V 3.06 X .38

$24.99

$

In Stock, only 1 left!

0

25

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 00411500

SHOULDER BOLT .50 X .281
(Superseded to 07000034)

$3.99

$

In Stock, Qty 11

0

28

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

29

Gravely 07415200

SCR-TAP 10-24X1.00 HWH TRYWZC

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 12

0

31

Gravely 036850

SG-TENS .090X.75X3.50 WLD 34
(Superseded to 08312200)

$35.99

$

Usually ships in 4-12 days

0

32

Gravely 06536600

NUT-HEX 10-24 YWZC

$0.99

$

In Stock, only 3 left!

0

33

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 2 left!

0

35

Gravely 05968700

BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

In Stock, Qty 9

0

36

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

37

Gravely 03588700

HANGER BRACKET
(Superseded to 03588751)

Note: (Model 836011)

$31.99

$

Usually ships in 4-12 days

0

38

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (Model 834035)

$1.99

$

In Stock, Qty 20+

0
