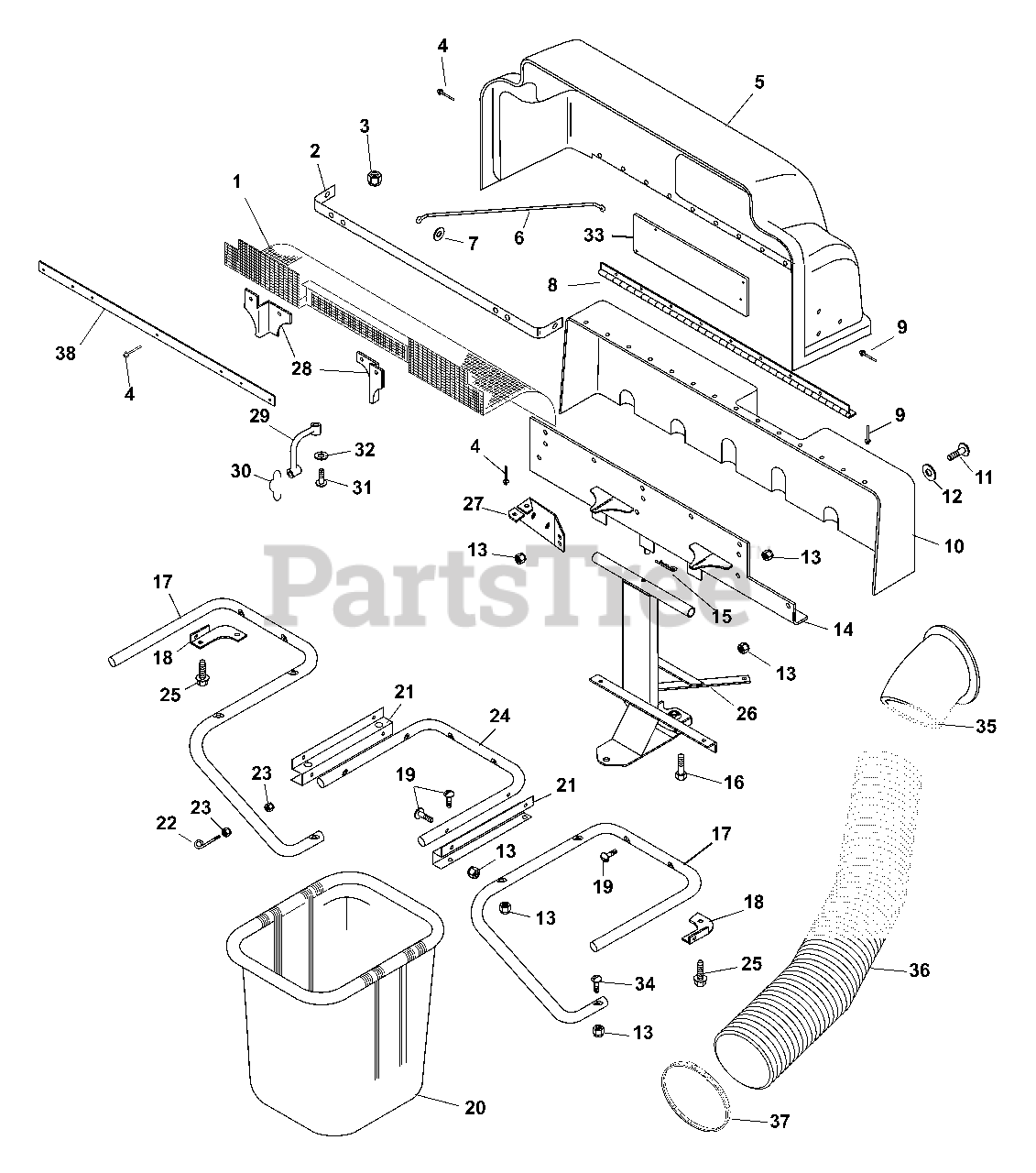

836014 - Ariens 48" Grass Collection System (SN: 000101 & Above) Bags & Cover Parts Diagram

48" Grass Collection System

Bags & Cover Parts Diagram

  • Title

1

Ariens 03325500

SCREEN

$

$

Not available

2

Ariens 09224351

SCREEN MOUNTING BRACKET

$

$

Not available

3

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

4

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

5

Ariens 53610600

HINGED COVER W/DECALS

$

$

Not available

6

Ariens 03552900

BRACE

$

$

Not available

7

Ariens 06444400

@WSHR-FL-STL .188X.438X.049 YZ

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 03325200

HINGE- 2.0"X35.0"

$

$

Not available

9

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 11

0

10

Ariens 03569100

STATIONARY COVER

$

$

Not available

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

12

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 03586200

MOUNTING BRACKET

$

$

Not available

15

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

In Stock, only 2 left!

0

16

Ariens 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

17

Ariens 03610451

RIGHT TUBE

$

$

Not available

17

Ariens 03610551

LEFT TUBE

$

$

Not available

18

Ariens 02725000

RH CORNER BRACKET

$

$

Not available

18

Ariens 02725100

LH CORNER BRACKET

$

$

Not available

19

Ariens 06119100

SCR-MCH .31-18 X 1.50 YWZC

$

$

Not available

20

Ariens 02724400

GRASS BAGGER BASKET

$79.99

$

In Stock, only 2 left!

0

21

Ariens 02724700

TUBE BRACKET

$

$

Not available

22

Ariens 02440100

EYEBOLT

$10.99

$

Usually ships in 4-12 days

0

23

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 02724651

CENTER TUBE

$44.99

$

Usually ships in 4-12 days

0

25

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 03608900

BAGGER FRAME

$

$

Not available

27

Ariens 02725200

BRACE

$

$

Not available

28

Ariens 03326900

BAFFLE LH

$5.99

$

Usually ships in 4-12 days

0

28

Ariens 03327000

BAFFLE RH

$

$

Not available

29

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

30

Ariens 02738100

HOOK

$6.99

$

In Stock, Qty 6

0

31

Ariens 06118500

@SCR-MCH 10-24X1.00 HWH YWZC
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

32

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

33

Ariens 02731200

BAFFLE

$

$

Not available

34

Ariens 06120100

@SCR, .31-18X2.0 FL SKT HD YZC

$3.99

$

Usually ships in 4-12 days

0

35

Ariens 03599600

BAGGER BOOT - UPPER

$

$

Not available

36

Ariens 03694000

HOSE 7 X 35

$

$

Not available

37

Ariens 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$17.99

$

Usually ships in 4-12 days

0

38

Ariens 00429751

GUARD - SCREEN

$

$

Not available
