836014 - Ariens 48" Grass Collection System (SN: 000101 & Above) Belt & Counterweight Parts Diagram

48" Grass Collection System

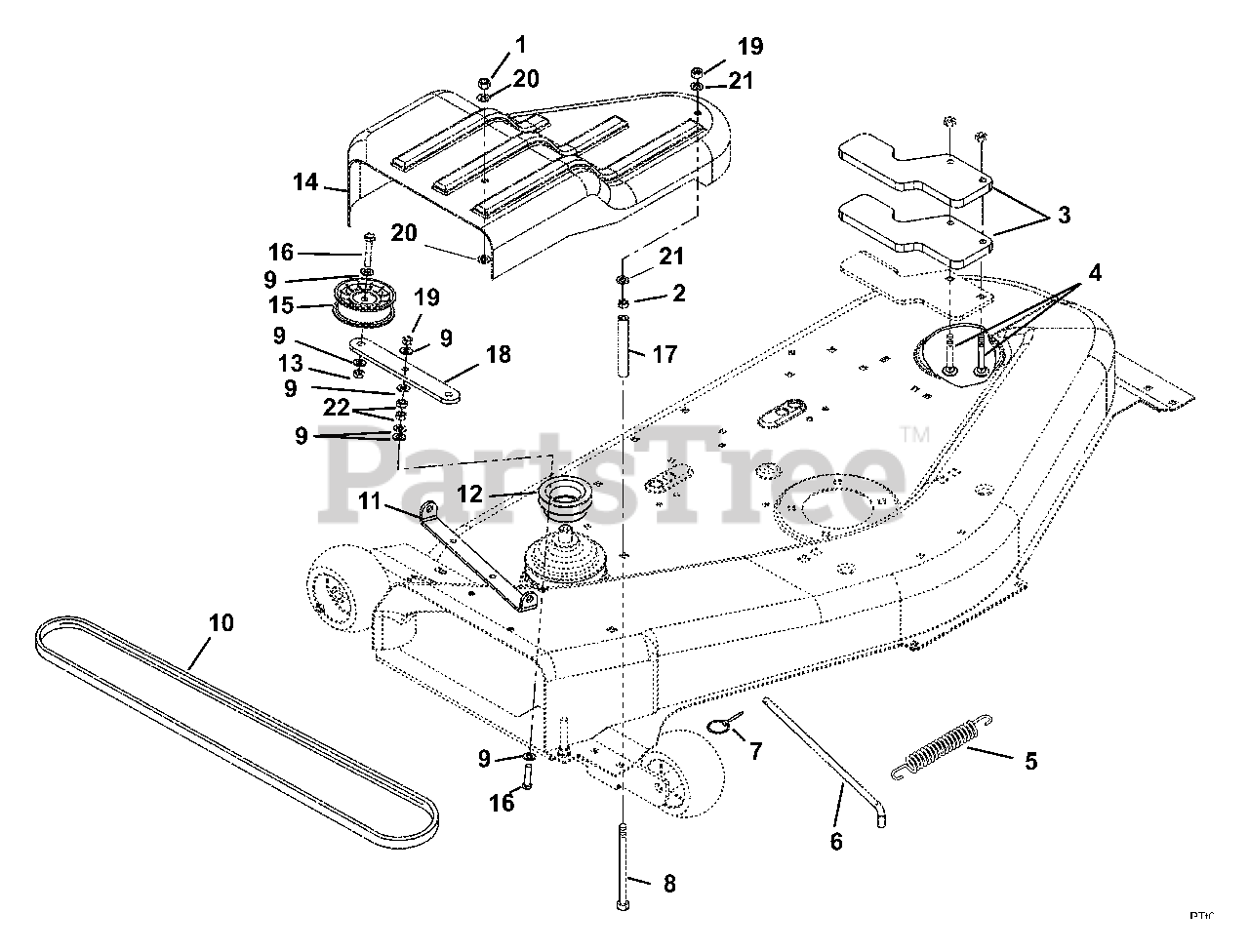

Belt & Counterweight Parts Diagram

  • Title

1

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

2

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 01566751

COUNTERWEIGHT

$

$

Not available

4

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 3 left!

0

5

Ariens 08332000

SG-TENS .069X.62X3.50 WLD20

$11.99

$

In Stock, only 2 left!

0

6

Ariens 03691400

ROD-MOUNTING

$75.99

$

Usually ships in 4-12 days

0

7

Ariens 07014500

PIN-KLIK 1.000X.188X1.25 YWZC

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 05978000

BLT-HEX .31-18X6 FLTHD GR5 YZC

$

$

Not available

9

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

10

Ariens 07220500

V-BELT, HA-RAW EDGE

$36.99

$

In Stock, only 2 left!

0

11

Ariens 09261251

BRACKET, CHUTE PIVOT

$

$

Not available

12

Ariens 03688500

PULLEY-DRIVER 3.00"

$162.99

$

Usually ships in 4-12 days

0

13

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 3 left!

0

14

Ariens 03686000

COVER-GRASS PUMP BELTS

$117.99

$

Usually ships in 4-12 days

0

15

Ariens 07309300

IDLER-FLAT 3.00X.38

$37.99

$

In Stock, Qty 5

0

16

Ariens 05970900

BLT-HEX .31-18X1.75 FLTHD YWZC

$2.99

$

Usually ships in 4-12 days

0

17

Ariens 03692300

SPACER .334X.500X4.625

$

$

Not available

18

Ariens 03688200

BRACKET-TENSION ARM

$

$

Not available

19

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

20

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, only 2 left!

0

21

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

Usually ships in 4-12 days

0

22

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, only 4 left!

0
