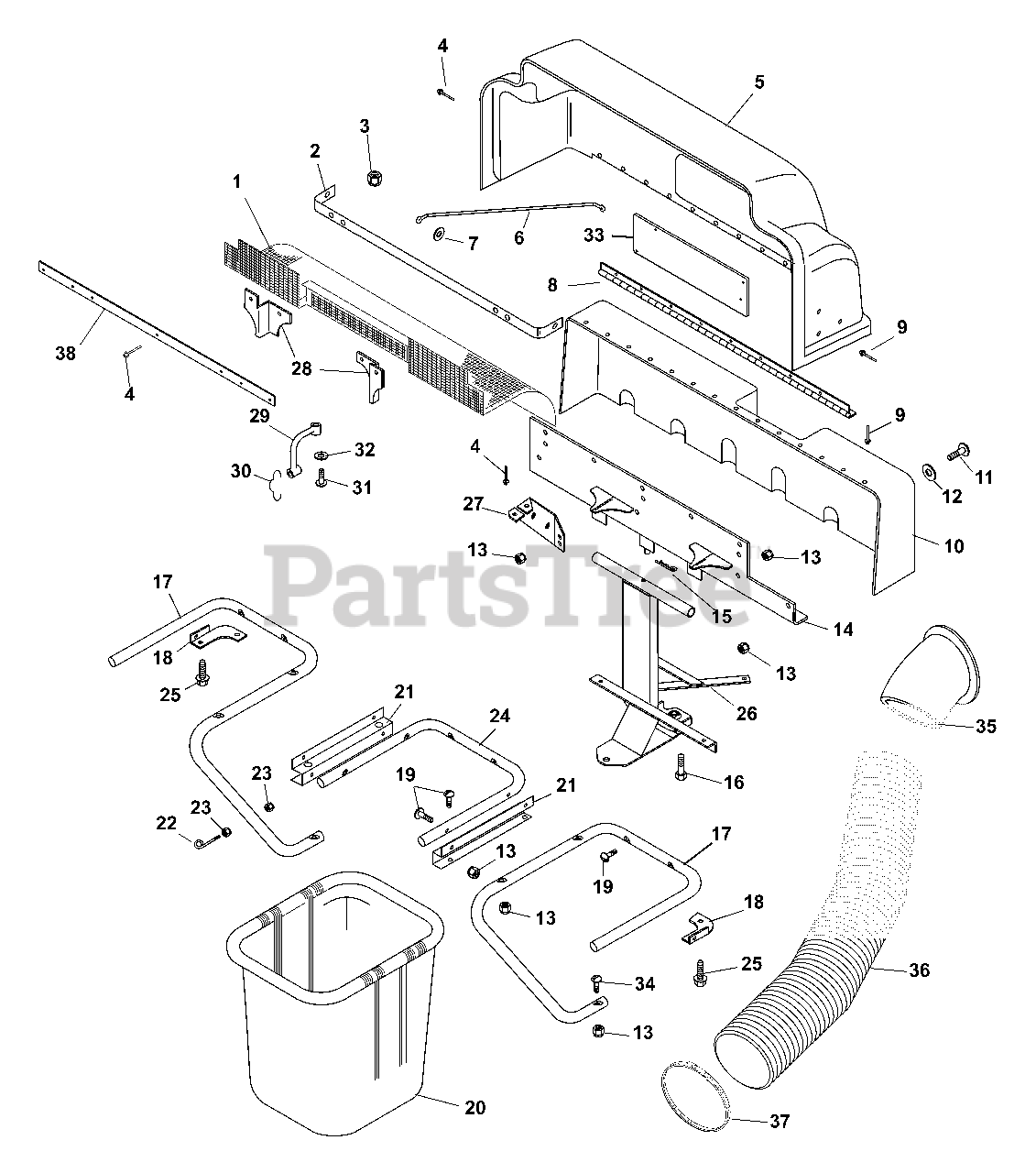

836014 - Gravely 48" Grass Bagger (SN: 000101 & Above) Bags & Cover Parts Diagram

48" Grass Bagger

Bags & Cover Parts Diagram

  • Title

1

Gravely 03325500

Screen

$

$

Not available

2

Gravely 09224351

Screen Mounting Bracket

$

$

Not available

3

Gravely 06536000

Nut-Locking-Top 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

4

Gravely 06803800

Rivet-Pop .187 x .527

$1.49

$

In Stock, Qty 20+

0

5

Gravely 53610600

Hinged Cover w/Decals

$

$

Not available

6

Gravely 03552900

Brace

$

$

Not available

7

Gravely 06444400

Washer-Flat-Steel .194 x .492 x .047

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 03325200

Hinge

$

$

Not available

9

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 11

0

10

Gravely 03569100

Stationary Cover

$

$

Not available

11

Gravely 05947000

Bolt-Hex .31-18 x 1.00 Grade 2
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

12

Gravely 06435700

Washer-Flat-Steel .344 x .063
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

13

Gravely 06529800

Nut- Locking-Nylon .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 03586200

Mounting Bracket

$

$

Not available

15

Gravely 06701000

Pin-Hair Internal .08 x .38 x 1.42
(Superseded to 06700224)

$2.49

$

In Stock, only 2 left!

0

16

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 2
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

17

Gravely 03610451

Right Tube

$

$

Not available

17

Gravely 03610551

Left Tube

$

$

Not available

18

Gravely 02725000

Right Hand Corner Bracket

$

$

Not available

18

Gravely 02725100

Left Hand Corner Bracket

$

$

Not available

19

Gravely 06119100

Screw-Machine .31-18 x 1.50

$

$

Not available

20

Gravely 02724400

Grass Bagger Bucket

$79.99

$

In Stock, only 2 left!

0

21

Gravely 02724700

Tube Bracket

$

$

Not available

22

Gravely 02440100

Eyebolt

$10.99

$

Usually ships in 4-12 days

0

23

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 02724651

Center Tube

$44.99

$

Usually ships in 4-12 days

0

25

Gravely 07411500

Screw-Tapping .312-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 03608900

Bagger Frame

$

$

Not available

27

Gravely 02725200

Brace

$

$

Not available

28

Gravely 03326900

Baffle Left Hand

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 03327000

Baffle Right Hand

$

$

Not available

29

Gravely 07507500

Battery Strap

$14.99

$

Usually ships in 4-12 days

0

30

Gravely 02738100

Hook

$6.99

$

In Stock, Qty 6

0

31

Gravely 06118500

Screw-Machine 10-24 x 1.00
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

32

Gravely 06442700

Washer-Flat Steel
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

33

Gravely 02731200

Baffle

$

$

Not available

34

Gravely 06120100

Screw, .312-18 x 2.00

$3.99

$

Usually ships in 4-12 days

0

35

Gravely 03599600

Bagger Boot, Upper

$

$

Not available

36

Gravely 03694000

Hose 7 x 35

$

$

Not available

37

Gravely 03022400

Clamp, Hose-Worm 2.13/8.62 x .56

$17.99

$

Usually ships in 4-12 days

0

38

Gravely 00429751

Guard, Screen

$

$

Not available
