836014 - Gravely 48" Grass Bagger (SN: 000101 & Above)

48" Grass Bagger

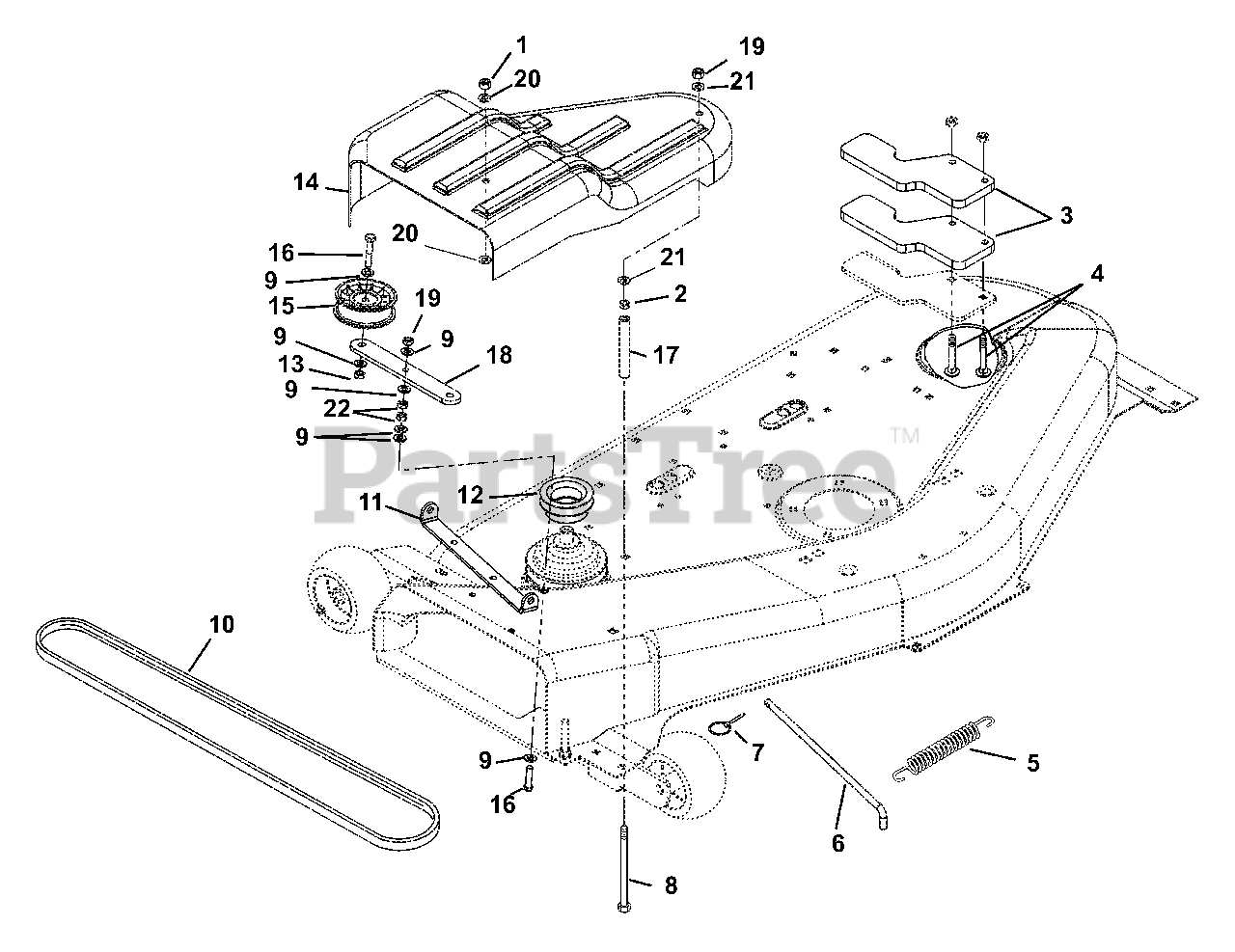

836014 - Gravely 48" Grass Bagger (SN: 000101 & Above) > Parts Diagrams (4) > Belt & Counterweight

  • Title
06531000

1

Nut-Lock-Nylon .250-20

Part# 06531000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06529800

2

Nut-Locking-Center .312-18

Part# 06529800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

01566751

3

Counterweight

Part# 01566751

OEM Warranty Repair Part for Gravely

Not available

06220200

4

Bolt-Round Head Square Neck .31-18 x 1.75 Grade 5

Part# 06220200

OEM Warranty Repair Part for Gravely

Not available

08332000

5

Spring-Tension .069 x .62 x 3.50

Part# 08332000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $11.12

03691400

6

Rod-Mounting

Part# 03691400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $73.73

07014500

7

Pin-Klik 1.000 x .188 x 1.25

Part# 07014500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $5.53

05978000

8

Bolt-Hex .31-18 x 6.00 Grade 5

Part# 05978000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $18.45

06437200

9

Washer-Flat-Steel .344 x .688 x.065

Part# 06437200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07220500

10

V-Belt A-Section 25.95 x .516

Part# 07220500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $24.54

09261251

11

Bracket-Chute Pivot

Part# 09261251

OEM Warranty Repair Part for Gravely

Not available

03688500

12

Pulley-Driver 3.00"

Part# 03688500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $145.28

06530400

13

Nut-Locking-Flange .31-18

Part# 06530400

OEM Warranty Repair Part for Gravely

Not available

03686000

14

Cover, Belt

Part# 03686000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $115.10

07309300

15

Idler-Flat 3.00 x .38

Part# 07309300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $36.84

05970900

16

Bolt-Hex .31-18X1.75 Grade 5

Part# 05970900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.30

03692300

17

Spacer-.334 I.D. x 4.63

Part# 03692300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $14.48

03688200

18

Bracket-Tension Arm

Part# 03688200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $93.02

06530200

19

Nut-Lock-Nylon .31-18

Part# 06530200

OEM Warranty Repair Part for Gravely

Not available

06426600

20

Washer-Flat-Steel .281 x 1.00 x.048

Part# 06426600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 4 to 7 business days

Your price: $5.53

06446900

21

Washer-Flat-Steel .344 x 1.375 x 0.75

Part# 06446900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06536100

22

Nut-Jam .31-18

Part# 06536100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85
