836014 - Gravely 48" Grass Bagger (SN: 000101 & Above) Belt & Counterweight Parts Diagram

48" Grass Bagger

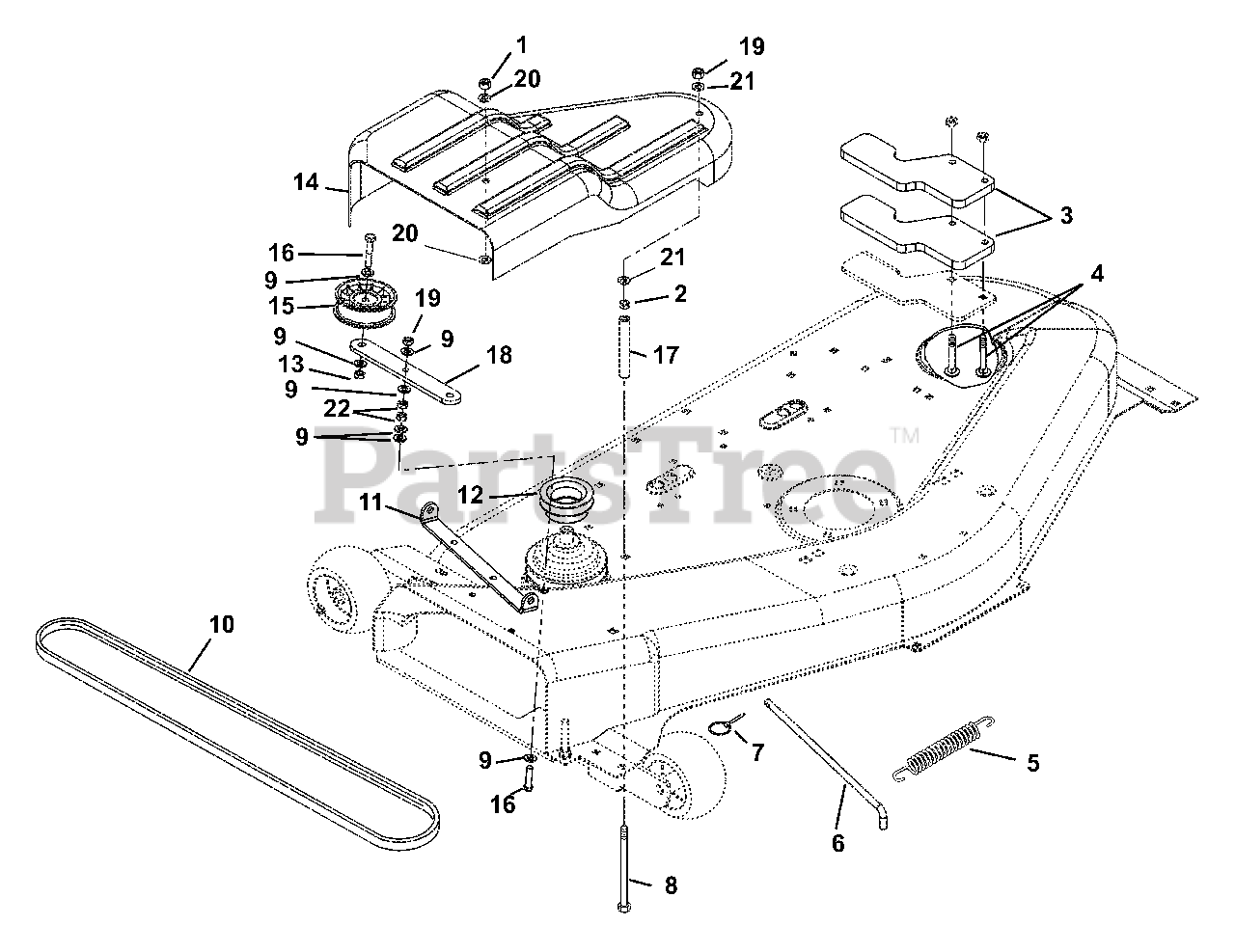

Belt & Counterweight Parts Diagram

  • Title

1

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

2

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 01566751

COUNTERWEIGHT

$

$

Not available

4

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 15

0

5

Gravely 08332000

SG-TENS .069X.62X3.50 WLD20

$11.99

$

In Stock, only 1 left!

0

6

Gravely 03691400

ROD-MOUNTING

$75.99

$

Usually ships in 4-12 days

0

7

Gravely 07014500

PIN-KLIK 1.000X.188X1.25 YWZC

$6.49

$

Usually ships in 4-12 days

0

8

Gravely 05978000

BLT-HEX .31-18X6 FLTHD GR5 YZC

$

$

Not available

9

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 07220500

V-BELT, HA-RAW EDGE

$38.99

$

In Stock, only 3 left!

0

11

Gravely 09261251

BRACKET, CHUTE PIVOT

$

$

Not available

12

Gravely 03688500

PULLEY-DRIVER 3.00"

$166.99

$

Usually ships in 4-12 days

0

13

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 03686000

COVER-GRASS PUMP BELTS

$117.99

$

Usually ships in 4-12 days

0

15

Gravely 07309300

IDLER-FLAT 3.00X.38

$38.99

$

In Stock, only 4 left!

0

16

Gravely 05970900

BLT-HEX .31-18X1.75 FLTHD YWZC

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 03692300

SPACER .334X.500X4.625

$

$

Not available

18

Gravely 03688200

BRACKET-TENSION ARM

$

$

Not available

19

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0

20

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

21

Gravely 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.99

$

In Stock, Qty 5

0

22

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 16

0
