838 R (120-838R100) - Cub Cadet Walk-Behind Mower (1990) Parts For Rotary Mower Part 1 Parts Diagram

Walk-Behind Mower

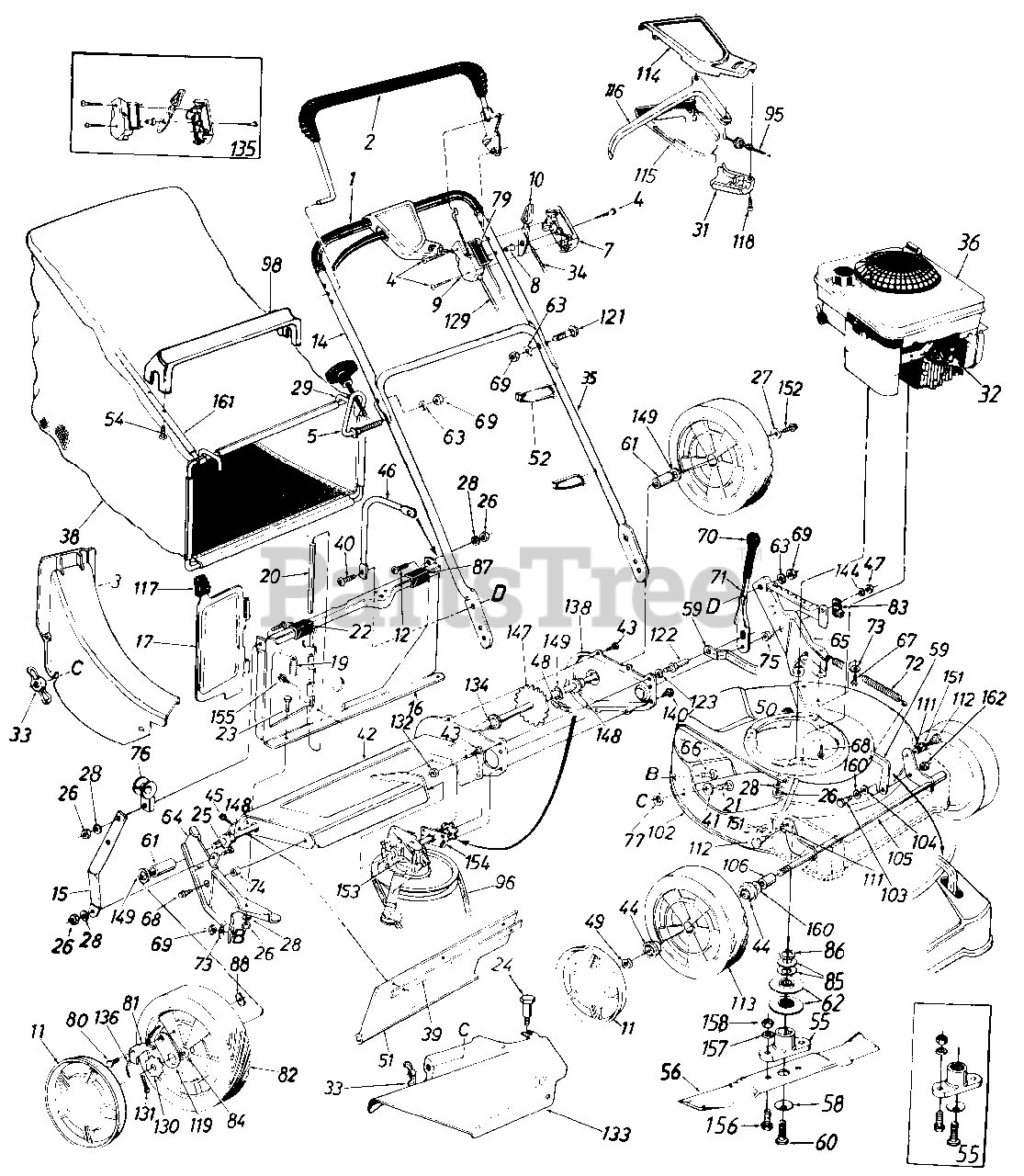

Parts For Rotary Mower Part 1 Parts Diagram

  • Title

1

Cub Cadet 720-0225

Foam Grip
(Superseded to 720-0294A)

$6.99

$

In Stock, Qty 6

0

2

Cub Cadet 731-0609

Control Handle Ass'y.-L.H.

$

$

Not available

3

Cub Cadet 731-1023

Rear Discharge Chute Ass'y.

$

$

Not available

4

Cub Cadet 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, Qty 6

0

5

Cub Cadet 710-0842B

Rope Guide Bolt

$

$

Not available

7

Cub Cadet 731-0817A

Control Panel Half

$

$

Not available

8

Cub Cadet 731-0524

Control Disc Pin

$

$

Not available

9

Cub Cadet 731-0816A

Clutch Panel Half

$

$

Not available

10

Cub Cadet 731-0528A

Throttle Control Lever
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

11

Cub Cadet 731-0982

Hub Cap
(Superseded to 731-0982C)

$10.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0946

Truss Mach. Scr. 1/4-20 x .62" Lg.

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 749-0439A

Upper Handle-Painted
(Superseded to 749-0439E-0637)

$43.99

$

In Stock, only 1 left!

0

15

Cub Cadet 16129A

Panel Support Brkt.
(Superseded to 16129A-0637)

Variations

Cub Cadet 16129A-0637

BRACKET-PANEL SUP - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 16862

Rear Catcher Panel Ass'y.

Variations

Cub Cadet 16862-0483

PANEL ASSEMBLY-CATCHER - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 16862-0637

PANEL ASSEMBLY-CATCHER(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 16862-0638

PANEL ASSEMBLY-CATCHER(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 16862-0648

PANEL ASSEMBLY CATCHER(TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 16862-0662

PANEL ASSEMBLY-CATCHER(OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 16862-0665

PANEL ASSEMBLY-CATCHER(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

Cub Cadet 17095

Rear Discharge Door

$

$

Not available

19

Cub Cadet 732-0483A

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 747-0514

Pivot Pin

$

$

Not available

21

Cub Cadet 710-0134

Carriage Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0255

Truss Mach. Scr. 1/4-20 x 3/4" Lg
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 738-0704

Shoulder Bolt .312 Dia. x .18 Lg.-Special

$16.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 13

0

28

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

29

Cub Cadet 747-0705

Front Grass Catcher Frame
(Superseded to 747-0705-0637)

Variations

Cub Cadet 747-0705-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-1059

S.P. Control Cover
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

32

Cub Cadet 735-0639

Spark Plug Insulator

$

$

Not available

33

Cub Cadet 712-0388

Wing Nut w/Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 746-0674

Throttle Control Wire 61"
(Superseded to 946-0674A)

$17.99

$

In Stock, Qty 5

0

35

Cub Cadet 749-0725

Lower Handle-Painted
(Superseded to 749-0907B)

$46.99

$

In Stock, Qty 6

0

36

Engine

$

$

Not available

38

Cub Cadet 764-0257

Grass Bag
(Superseded to 964-0082)

$

$

Not available

39

Cub Cadet 14835

Retaining Strip

$

$

Not available

40

Cub Cadet 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

41

Cub Cadet 736-0204

Fl-Wash. .344" I.D. x .62"

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 17055B

Chain-Axle Ass'y.

Variations

Cub Cadet 17055B-0483

AXLE ASSEMBLY-CHAIN CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 17055B-0498

AXLE ASSEMBLY-CHAIN (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 17055B-0629

AXLE ASSEMBLY-CHAIN SILVER FLAK - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 17055B-0648

AXLE ASSEMBLY-CHAIN (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 17055B-0650

AXLE ASSEMBLY-CHAIN RED METALL - RED METALLIC (0650)

$

$

Not available

Cub Cadet 17055B-0662

AXLE ASSEMBLY-CHAIN (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 17055B-0665

USE 17055B-0637 AXLE ASSY-CHA - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 17055B-0667

AXLE ASSEMBLY-CHAIN MIDNIGHT BL - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 17055B-0691

AXLE ASSEMBLY-CHAIN (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

$

$

43

Cub Cadet 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 749-0778

Catcher Panel Support Arm

$

$

Not available

47

Cub Cadet 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

Cub Cadet 713-0353

#48 Chain .500" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

49

Cub Cadet 712-0346

Hex L-Nut 1/2-20 Thd.

$4.49

$

In Stock, Qty 18

0

50

Cub Cadet 731-0564

Plug

$

$

Not available

51

Cub Cadet 731-0672A

Rear Flap 3.75" x 17.30" Lg.

$31.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

54

Cub Cadet 710-1025

Hex AB Scr. #12 x 1.25" Lg.

$5.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 742-0306A

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 2 left!

0

58

Cub Cadet 736-0432

Bell-Wash. .46" I.D. x 1.13" O.D.

$

$

Currently unavailable

59

Cub Cadet 16863

Height Adj. Connecting Arm

$

$

Not available

60

Cub Cadet 710-0757

Hex Bolt 7/16-20 x 1.5" Lg. (Grade 5)

$8.99

$

In Stock, Qty 5

0

61

Cub Cadet 748-0190

Spacer .513" I.D. x .703" O.D. x .69" Lg.

$5.99

$

In Stock, only 1 left!

0

62

Cub Cadet 756-0502

Serrated Pulley Half
(Superseded to 956-0502)

$

$

Not available

63

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 16136A

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

Cub Cadet 16137B

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

67

Cub Cadet 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-1 8

$4.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16

$3.99

$

In Stock, only 4 left!

0

69

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 720-0223

Grip

$13.99

$

In Stock, Qty 9

0

71

Cub Cadet 732-0606

Height Adj. Lever

$

$

Not available

72

Cub Cadet 732-0362

Extension Spring .75" O.D. x 8" Lg.
(Superseded to 932-0362)

$

$

Not available

73

Cub Cadet 736-0242

Bell-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

74

Cub Cadet 750-0736

Spacer
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 750-0624

Shld. Spacer.500" Dia.

$

$

Not available

76

Cub Cadet 719-0279

Rope Guide

$14.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 726-0233

Bolt Retainer 1/4 x .50" O.D.

$3.99

$

In Stock, Qty 11

0

79

Cub Cadet 777-5812

Control Label

$

$

Not available

80

Cub Cadet 738-0137

Shld. Scr. .342" Dia. x .268

$

$

Not available

81

Cub Cadet 748-0188B

Pawl
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 17

0

82

Cub Cadet 734-1514A

Wheel Ass'y. Comp.
(Superseded to 734-1826)

$31.99

$

In Stock, Qty 7

0

83

Cub Cadet 726-0175

Clamp

$

$

Not available

84

Cub Cadet 741-0486B

Bearing 1/2" I.D.

$

$

Not available

85

Cub Cadet 736-0450

Bell-Washer 1.01" I.D.

$

$

Not available

86

Cub Cadet 748-0332

Crankshaft Spacer

$

$

Not available

87

Cub Cadet 731-0880

Panel Clip

$3.49

$

Usually ships in 3-6 days

0

88

Cub Cadet 712-0189

Flat Weld Nut 1/4-20 Thd.

$

$

Not available

95

Cub Cadet 746-0710

S.P. Cable
(Superseded to 946-0710A)

$37.99

$

In Stock, Qty 7

0

96

Cub Cadet 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, Qty 6

0

98

Cub Cadet 731-0801

Bag Handle

$

$

Not available

102

Cub Cadet 16859

21" Deck Ass'y.

Note: Color Code 498

$

$

Currently unavailable

103

Cub Cadet 738-0234

Shld. Bolt .5" Dia. x .295

$9.99

$

In Stock, only 4 left!

0

104

Cub Cadet 736-0253

Bell-Wash. .515" I.D. x 1.0" O.D.

$3.99

$

In Stock, Qty 20+

0

105

Cub Cadet 16856

Front Axle Ass'y.
(Superseded to 982-7509-0637)

$

$

Not available

106

Cub Cadet 711-0313

Sleeve .526" I.D. x .690" O.D. x .880" Lg.

$

$

Not available

111

Cub Cadet 736-0221

Intern. L-Wash. 3/8 I.D.

$

$

Not available

112

Cub Cadet 738-0705

Shld. Bolt .575" Dia. x .42
(Superseded to 938-0705)

$

$

Not available

113

Cub Cadet 734-1517A

Wheel Ass'y. Comp.
(Superseded to 734-1517B)

$63.99

$

Usually ships in 3-6 days

0

114

Cub Cadet 731-1057

Self-Propelled Control Cover
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

115

Cub Cadet 731-1058

Self-Propelled Control Cover
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

116

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 2 left!

0

117

Cub Cadet 720-0190

Door Grip
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

118

Cub Cadet 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$3.99

$

Usually ships in 3-6 days

0

119

Cub Cadet 16855

Pawl Plate

$5.99

$

In Stock, Qty 20+

0

121

Cub Cadet 710-0671

Curved Carr. Bolt 5/16-18 x 1.38n Lg.

$

$

Not available

122

Cub Cadet 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

123

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

129

Cub Cadet 746-0480A

Control Cable 46" Lg.

$

$

Not available

130

Cub Cadet 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 8

0

131

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 1 left!

0

132

Cub Cadet 712-0711

Hex Jam Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

133

Cub Cadet 731-0884

Side Chute Deflector Ass'y.

$

$

Not available

134

Cub Cadet 741-0522

Hex Flange Bearing

$7.99

$

In Stock, only 2 left!

0

135

Cub Cadet 753-0430

Kit-Control Housing Comp.

$

$

Not available

136

Cub Cadet 10622B

Spring-Nylon

$4.49

$

In Stock, Qty 20+

0

138

Cub Cadet 17053A

Chain Cover

Variations

Cub Cadet 17053A-0480

COVER-CHAIN - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 17053A-0483

COVER-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 17053A-0637

COVER-CHAIN (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 17053A-0638

COVER-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 17053A-0650

COVER-CHAIN - RED METALLIC (0650)

$

$

Not available

Cub Cadet 17053A-0662

COVER-CHAIN - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 17053A-0665

COVER-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 17053A-0674

COVER-CHAIN - YARDMAN YELLOW (0674)

$

$

Not available

$

$

140

Cub Cadet 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$3.99

$

In Stock, Qty 20+

0

144

Cub Cadet 736-0300

Fl-Wash. .385" I.D. x .87"

$3.99

$

In Stock, Qty 20+

0

147

Cub Cadet 738-0719A

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

148

Cub Cadet 741-0324

Hex Flange Bearing .506" I.D. Plastic
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

149

Cub Cadet 736-0160

Fl-Wash. .531" I.D. x .930"

$3.99

$

In Stock, only 2 left!

0

151

Cub Cadet 741-0491

Flanged Nyliner Brg.

$4.99

$

In Stock, Qty 20+

0

152

Cub Cadet 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

Cub Cadet 717-0417B

Transmission Comp. (See Breakdown)
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0

154

Cub Cadet 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

Cub Cadet 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

155

Cub Cadet 710-0429

Hex B-Tap Scr. #10 x .38
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

156

Cub Cadet 710-1055

Hex Scr. 3/8-24 x 1.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

157

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

158

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

160

Cub Cadet 736-0108

Fl-Wash. .51" I.D. x.75" O.D.

$6.49

$

Usually ships in 3-6 days

0

161

Cub Cadet 749-0764A

Rear Catcher Frame
(Superseded to 749-0764A-0637)

Variations

Cub Cadet 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

162

Cub Cadet 712-0266

Hex Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0
