8400 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) Drive Group Models: 8400, 8401 Parts Diagram

Walk-Behind Mower

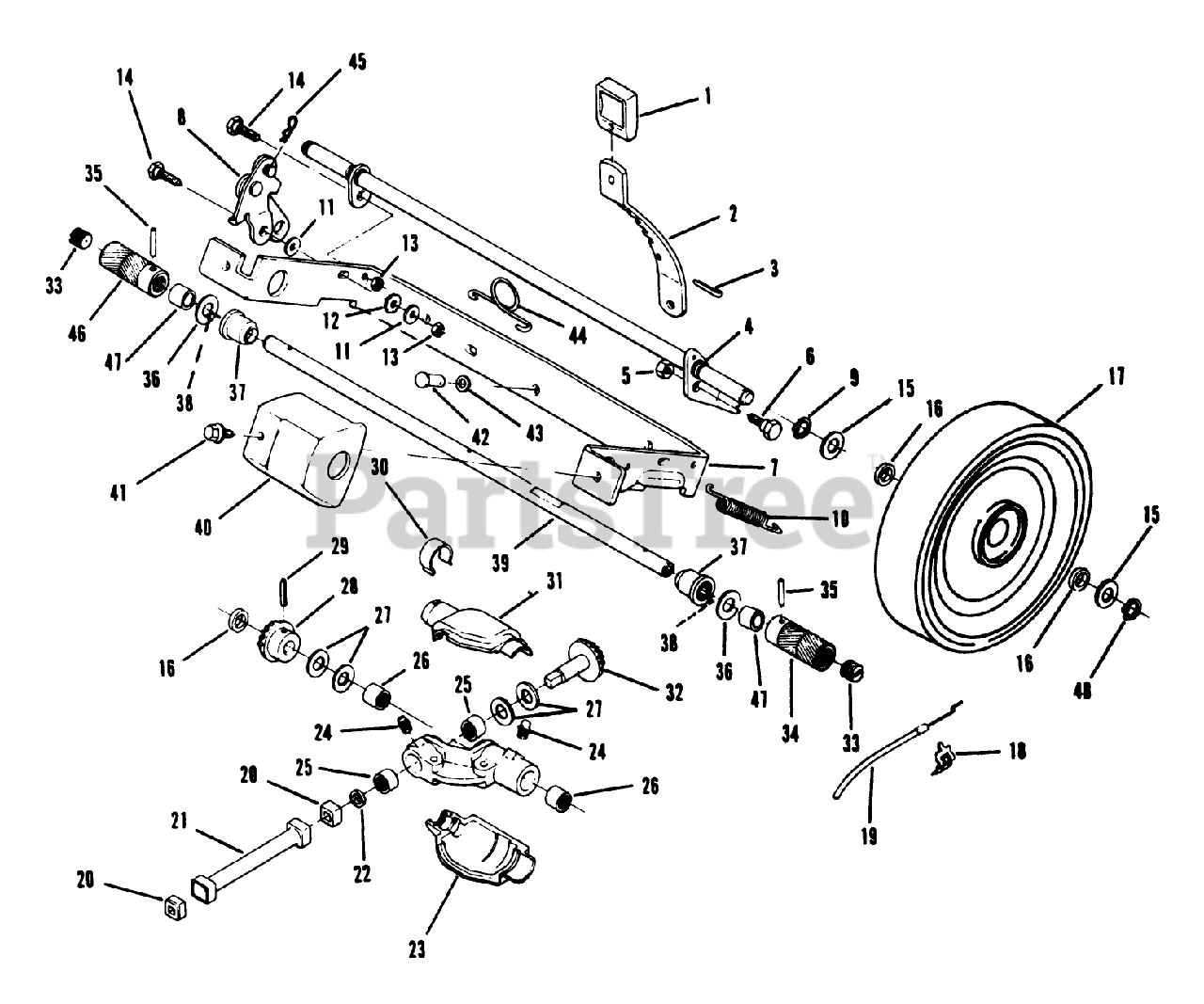

Drive Group Models: 8400, 8401 Parts Diagram

  • Title

1

Lawn-Boy 607562

KNOB

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 607673

LEVER

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 603036

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

Lawn-Boy 682139

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 682140

AXLE & TORQUE LUG ASM

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 607665

BOLT RB&W

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610500

BRK-21" AXLE

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$407.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 679630

See Supercession: 683775
(Superseded to 683775)

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 607676

RET RING

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$6.49

$

In Stock, only 4 left!

0

10

Lawn-Boy 610437

SPRING

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$34.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 603093

WASHER S

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 603123

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 602201

STOP NUT

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 602984

BOLT RB&W

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 682131

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 608936

See Supercession: 682603
(Superseded to 682603)

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 681667

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 608563

BUSHING

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 610625

See Supercession: 683129
(Superseded to 683129)

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 610644

O-RING

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 608291

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

Lawn-Boy 679699

See Supercession: 683971
(Superseded to 683971)

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 603615

**FITTING LINCOLN

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 510505

NEEDLE BEARING

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 608286

See Supercession: 117-3500
(Superseded to 117-3500)

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$5.49

$

In Stock, Qty 7

0

27

Lawn-Boy 608030

THRUST WASHER

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 607664

DISCONTINUED
(Superseded to 98-8319)

Note: Model 8400 only

$

$

Not available

28

Lawn-Boy 607664

DISCONTINUED
(Superseded to 98-8319)

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 610688

GEAR ADVANCE

Note: Model 8401 only

$63.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 610688

GEAR ADVANCE

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$63.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 311866

ROLL PIN

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

30

Lawn-Boy 608292

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 608289

GEAR COVER UPPER

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 607663

DISCONTINUED
(Superseded to 98-8319)

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 607663

DISCONTINUED
(Superseded to 98-8319)

Note: Model 8400 only

$

$

Not available

32

Lawn-Boy 610687

GEAR BEST

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$312.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 610687

GEAR BEST

Note: Model 8401 only

$312.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 602926

GREASE PLUG

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$12.99

$

In Stock, Qty 5

0

34

Lawn-Boy 607657

DISCONTINUED

Note: Model 8400 only

$

$

Not available

34

Lawn-Boy 607657

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 610440

ROLLER-LEFT

Note: Model 8401 only

$51.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 610440

ROLLER-LEFT

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$51.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 606013

PIN

Note: Model 8400 only

$3.49

$

In Stock, Qty 5

0

35

Lawn-Boy 606013

PIN

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, Qty 5

0

35

Lawn-Boy 610686

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 610686

DISCONTINUED

Note: Model 8401 only

$

$

Not available

36

Lawn-Boy 603037

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 678782

See Supercession: 681904
(Superseded to 681904)

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 679144

BEARING AY F

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 682138

DRIVE SHAFT & TAG

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$453.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 610428

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 607783

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 606115

PIN

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 606116

WASHER SPRING LAR

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 605802

SPRING N.A.S

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$8.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 603019

See Supercession: 1-806003
(Superseded to 1-806003)

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

46

Lawn-Boy 607658

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 607658

DISCONTINUED

Note: Model 8400 only

$

$

Not available

46

Lawn-Boy 610441

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 610441

DISCONTINUED

Note: Model 8401 only

$

$

Not available

47

Lawn-Boy 610439

DISCONTINUED

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 607676

RET RING

Note: Important Note: Painted, plastic, or fiberglass replacement parts or wheels may not always be available in matching colors.

$6.49

$

In Stock, only 4 left!

0
