8404 (54AU859-100) - Cub Cadet Compact Tractor Light Group Parts Diagram

Compact Tractor

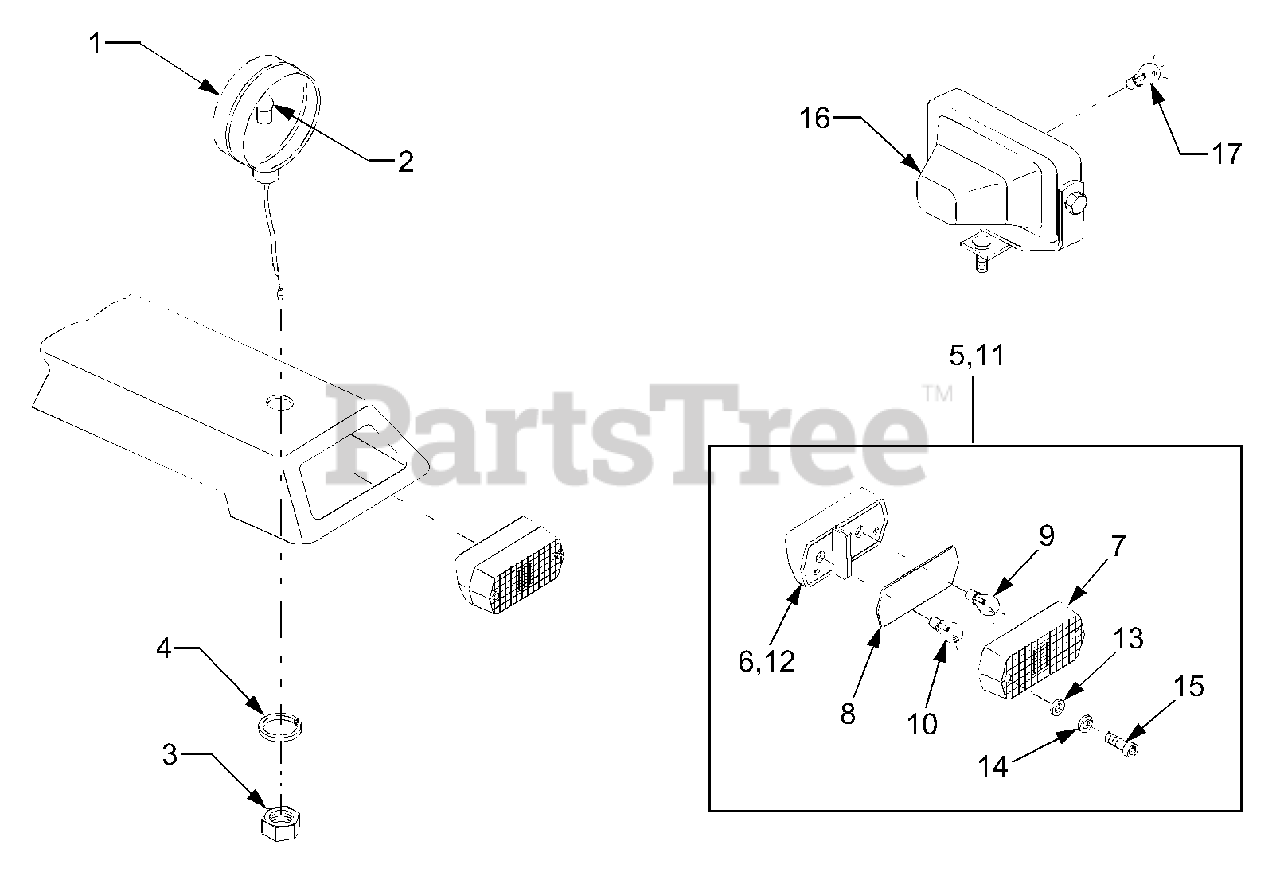

Light Group Parts Diagram

  • Title

1

Cub Cadet DD-84612-34231

Lamp, Hazard
(Superseded to DD-T2546-69061)

$

$

Not available

2

Cub Cadet DD-84612-34281

Bulb, Hazard

$5.99

$

In Stock, only 1 left!

0

3

Cub Cadet DD-02014-50100

Nut

$

$

Not available

4

Cub Cadet DD-04512-50100

Washer, Spring

$

$

Not available

5

Cub Cadet DD-T4520-75894

Reflector Amp Ass'y (LH)
(Superseded to DD-T4520-75895)

$82.99

$

Usually ships in 3-6 days

0

6

Cub Cadet DD-T4520-75631

Body(Lh)

$

$

Currently unavailable

7

Cub Cadet DD-T4340-33661

Lens

$

$

Not available

8

Cub Cadet DD-T4340-33671

Packing

$

$

Not available

9

Cub Cadet DD-T4340-33682

Bulb

$

$

Not available

10

Cub Cadet DD-T4340-33692

Bulb

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet DD-T4520-75884

Reflector Amp Ass'y (RH)
(Superseded to DD-T4520-75885)

$87.99

$

Usually ships in 3-6 days

0

12

Cub Cadet DD-T4520-75621

Body(Rh)

$

$

Currently unavailable

13

Cub Cadet DD-04012-50050

Washer, Plain

$

$

Not available

14

Cub Cadet DD-04512-50050

Washer, Spring

$

$

Not available

15

Cub Cadet DD-T4340-33712

Screw

$

$

Not available

16

Cub Cadet DD-T2616-34501

Working Lamp Ass'y

$

$

Currently unavailable

17

Cub Cadet DD-T4340-33682

Bulb

$

$

Not available
