8404 (54AU859-100) - Cub Cadet Compact Tractor Water Pipes Parts Diagram

Compact Tractor

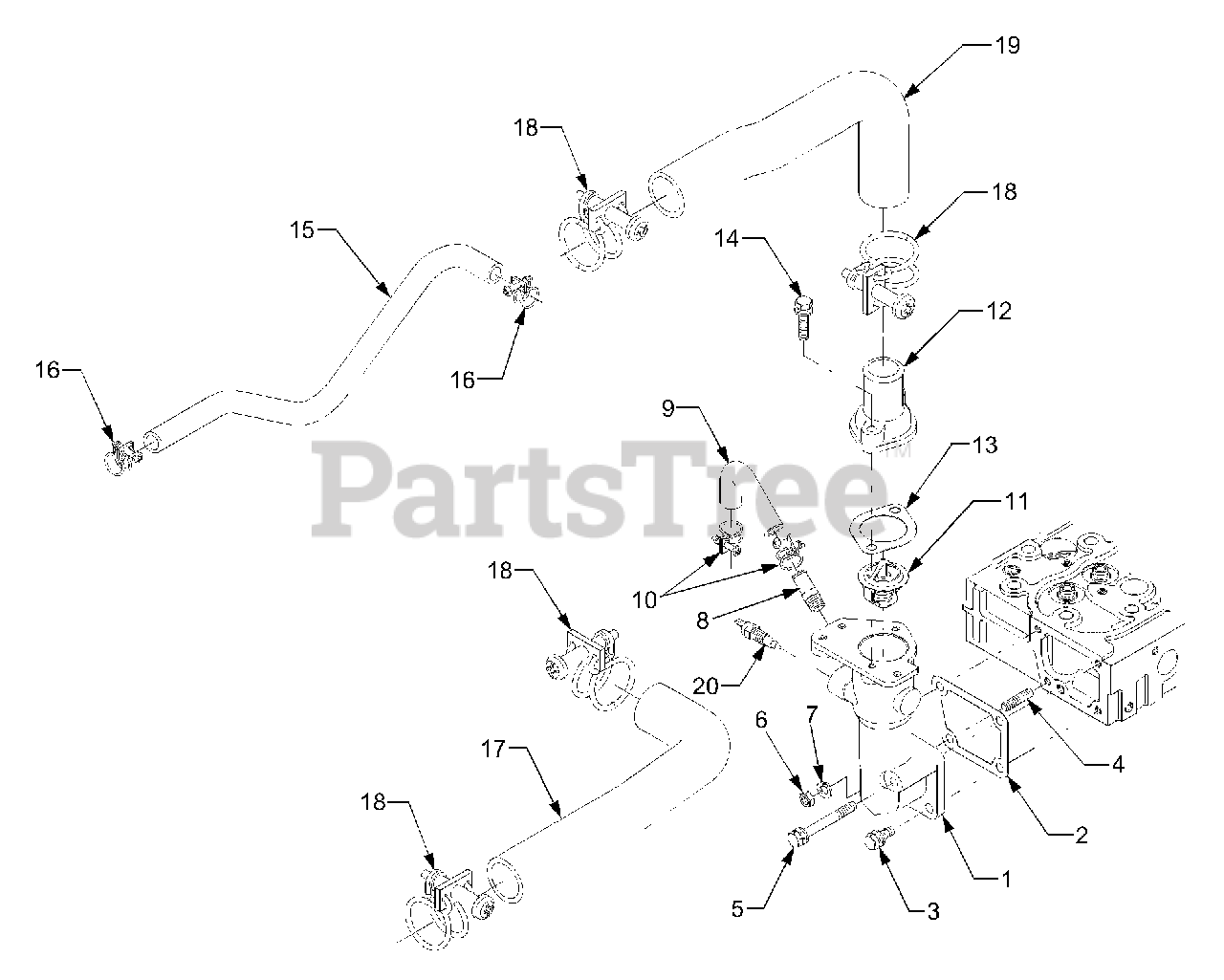

Water Pipes Parts Diagram

  • Title

1

Cub Cadet DD-E5800-72914

Flange, Water

$

$

Not available

2

Cub Cadet DD-15521-72921

Gasket, Flange
(Superseded to DD-E5500-72922)

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet DD-01123-50822

Bolt

$

$

Not available

4

Cub Cadet DD-01513-50822

Stud

$

$

Not available

5

Cub Cadet DD-01123-50870

Bolt

$

$

Not available

6

Cub Cadet DD-02156-50080

Nut

$

$

Not available

7

Cub Cadet DD-04512-50080

Washer, Spring

$

$

Not available

8

Cub Cadet DD-E5500-73342

Pipe, Water Return

$

$

Not available

9

Cub Cadet DD-15521-73341

Pipe

$

$

Not available

10

Cub Cadet DD-15109-73364

Band, Pipe

$

$

Not available

11

Cub Cadet DD-E5800-73011

Thermostat Ass'y

$

$

Not available

12

Cub Cadet DD-E5500-73263

Cover, Thermostat
(Superseded to DD-E5500-73265)

$14.99

$

Usually ships in 3-6 days

0

13

Cub Cadet DD-15321-73271

Gasket
(Superseded to DD-E5500-73272)

$

$

Not available

14

Cub Cadet DD-01123-50835

Bolt

$

$

Not available

15

Cub Cadet DD-E5800-73341

Pipe, Water Return

$

$

Not available

16

Cub Cadet DD-E5700-73361

Band, Pipe

$

$

Not available

17

Cub Cadet DD-E5800-72851

Pipe, Water Lower

$

$

Not available

18

Cub Cadet DD-15108-72873

Band

$2.49

$

In Stock, only 1 left!

0

19

Cub Cadet DD-E6500-72941

Pipe, Water Upper

$

$

Not available

20

Cub Cadet DD-T4340-38751

Switch, Thermo Water

$58.99

$

Usually ships in 3-6 days

0
