84224 - Toro Electric Lift (1989) PARTS LIST FOR ELECTRIC LIFT KIT FACTORY ORDER NO. 84224 Parts Diagram

Electric Lift

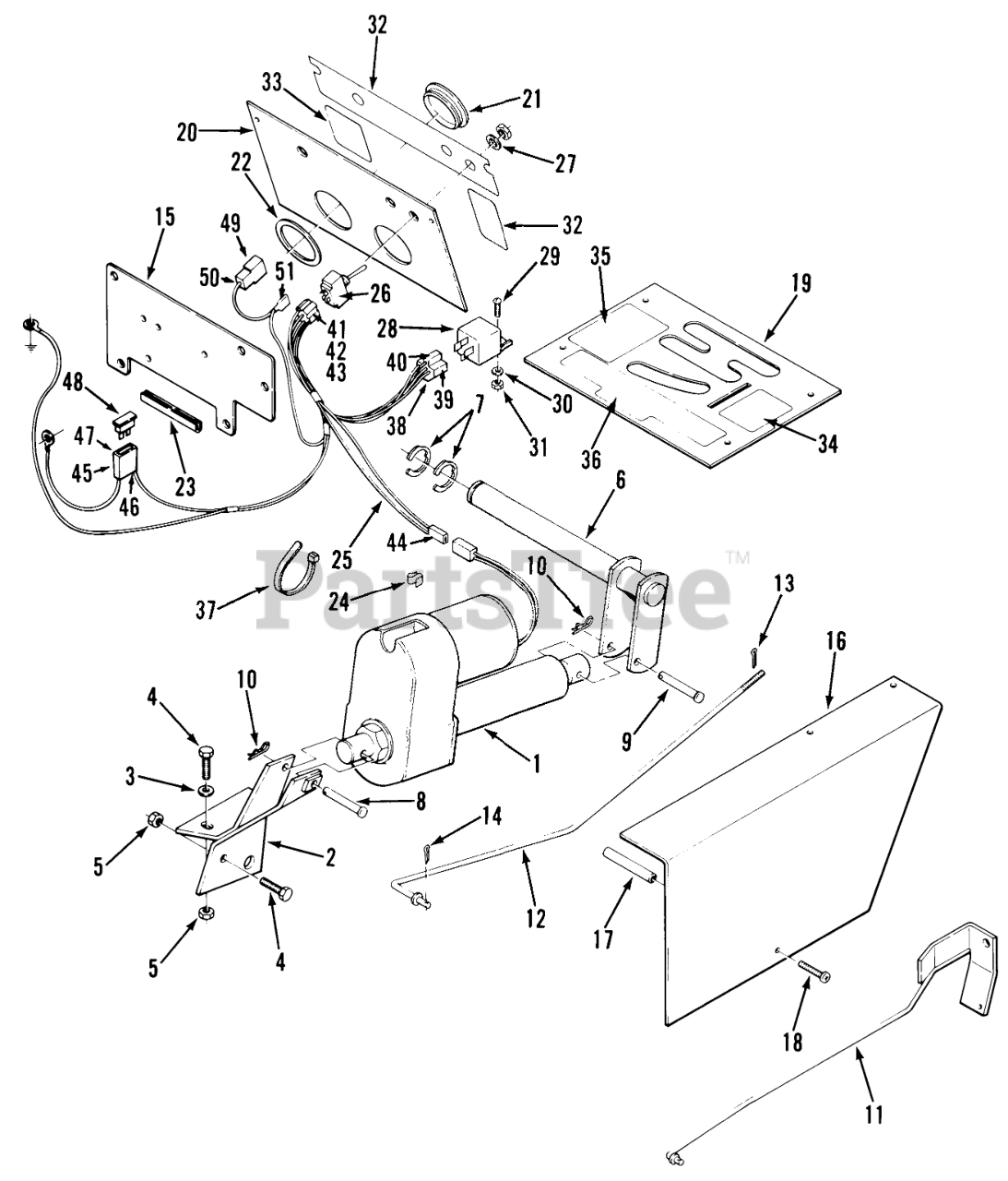

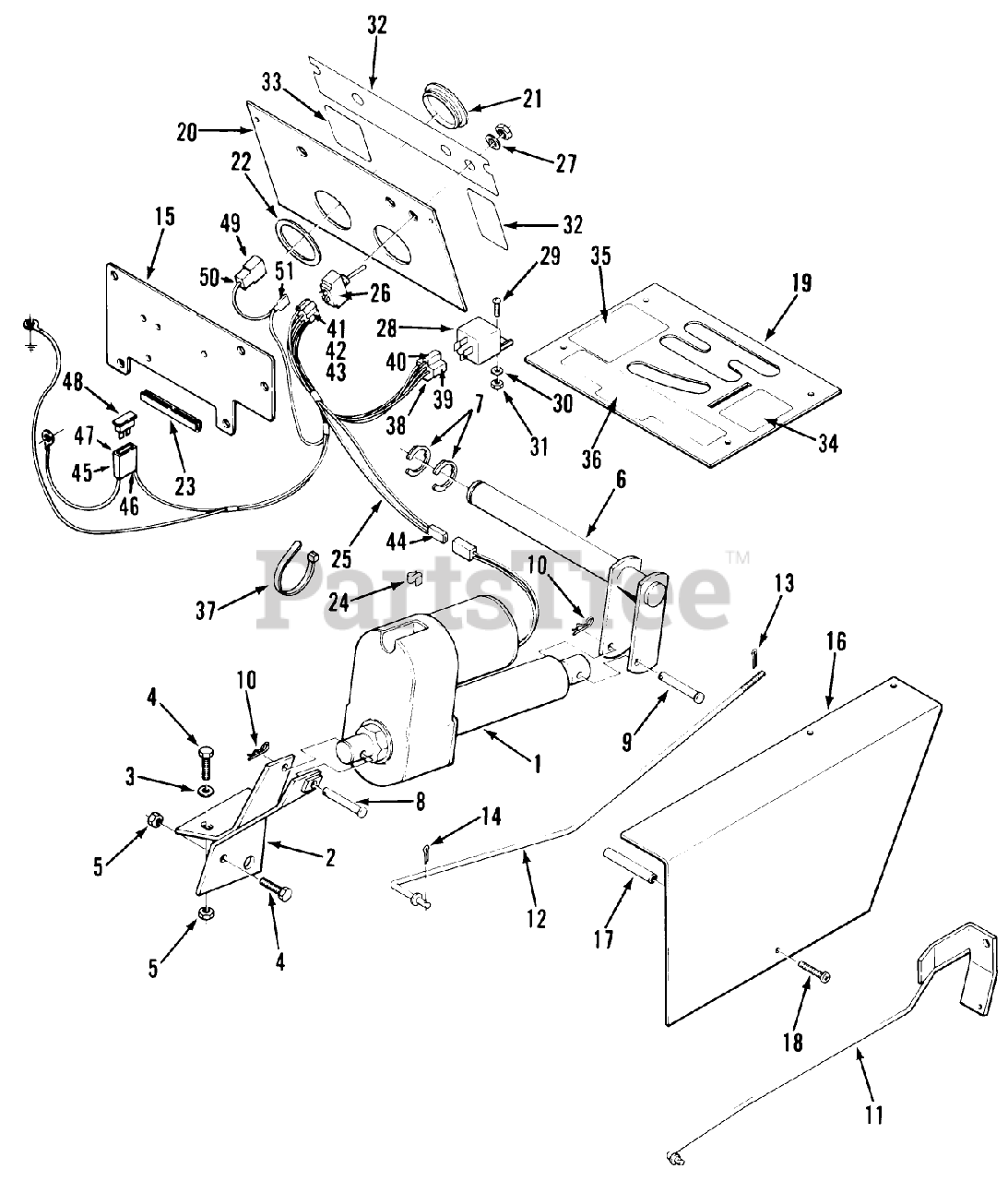

PARTS LIST FOR ELECTRIC LIFT KIT FACTORY ORDER NO. 84224 Parts Diagram

  • Title

1

Toro 111273

Linear Actuator
(Superseded to 84225)

$

$

Not available

2

Toro 112178

ASSY LIFT BRACKET B

$

$

Not available

3

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

4

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

5

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

6

Toro 111278

ASSY LIFT ARM B

$

$

Not available

7

Toro 106414

Retainer
(Superseded to 32151-91)

$2.49

$

Usually ships in 3-6 days

0

8

Toro 933003

Clevis Pin 1/2 x 2 3/4

$

$

Currently unavailable

9

Toro 933001

CLEVIS PIN

$

$

Not available

10

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

11

Toro 111281

Brake Rod

$

$

Not available

12

Toro 111503

ROD CLUTCH R

$93.99

$

Usually ships in 3-6 days

0

13

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

14

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0

15

Toro 111284

PLATE FRONT HOODS B

$

$

Not available

16

Toro 115478

COVER-L.H. R

$

$

Not available

17

Toro 979427

Spacer

$

$

Currently unavailable

18

Toro 910843

Pan Head Screw 1/4-20 x 1 3/4

$

$

Currently unavailable

19

Toro 111387

PLATE SHIFT PATTE B

$

$

Not available

20

Toro 111289

Hoodstand Plate

$

$

Not available

21

Toro 938067

PLUG - HOLE

$

$

Not available

22

Toro 111334

Backup Washer

$

$

Not available

23

Toro 106454

EDGE TRIM 2" 102896

$

$

Not available

24

Toro 3023

SPEED CLIP

$

$

Not available

25

Toro 115466

Wiring Harness

$

$

Not available

26

Toro 110761

SWITCH

$

$

Not available

27

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

28

Toro 110805

RELAY

$

$

Not available

29

Toro 910794

BOLT

$

$

Not available

30

Toro 111292

Washer
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

31

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

32

Toro 111500

DECAL BACK PLATE

$

$

Not available

33

Toro 111511

DECAL PTO

$

$

Not available

34

Toro 111510

DECAL-PARKING, BRAKE

$6.99

$

Usually ships in 3-6 days

0

35

Toro 111534

DECAL-SHIFT PATTERN

$7.49

$

Usually ships in 3-6 days

0

36

Toro 112678

Decal-Danger
(Superseded to 98-0750)

$24.99

$

In Stock, only 1 left!

0

37

Toro 100571

PLASTIC TIE

$

$

Not available

38

Toro 110806

Connector Body (Part of Item 10)

$

$

Not available

39

Toro 110824

Female Terminal (Part of Item 10)

$

$

Not available

40

Toro 110825

TERMINAL FEMALE

$

$

Not available

41

Toro 105303

CONNECTOR 5 WAY

$4.49

$

Usually ships in 3-6 days

0

42

Toro 102651

Terminal

$

$

Not available

43

Toro 105306

TERMINAL-TAB RCPT

$3.49

$

Usually ships in 3-6 days

0

44

Toro 110459

CONNECTOR BODY B

$1.99

$

In Stock, only 2 left!

0

45

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

46

Toro 108895

TERMINAL FUSE

$4.49

$

Usually ships in 3-6 days

0

47

Toro 109445

CLIP

$7.49

$

Usually ships in 3-6 days

0

48

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, only 1 left!

0

49

Toro 106036

Connector Body
(Superseded to 106636)

$64.99

$

In Stock, Qty 5

0

50

Toro 105312

Connector Part of 5

$

$

Currently unavailable

51

Toro 518104

Terminal

$

$

Currently unavailable
